Tektronix MSO4034 Demo Instruction Manual

Giving Demos of MSO4000 Features

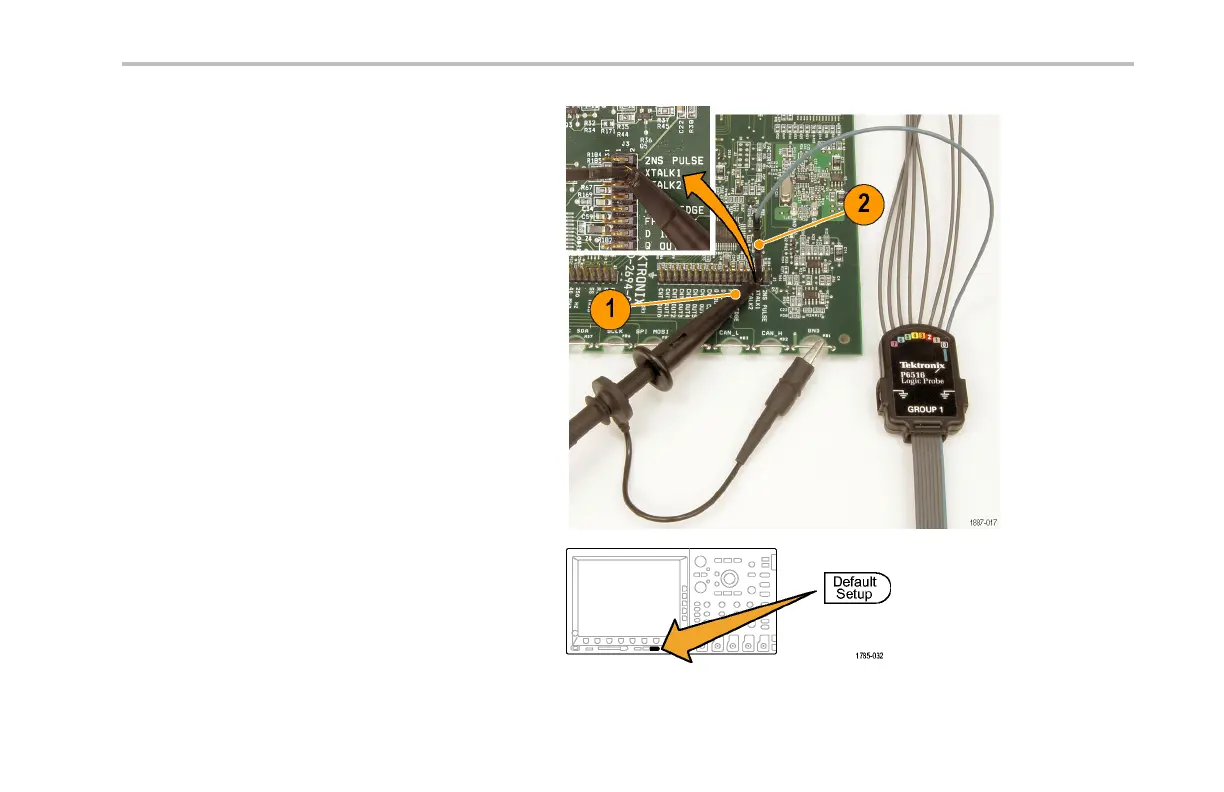

1. Attach a P6139A probe to the MSO4000’s
channel 1 and to the demo board’s GND point
and XTALK 1 signal.
2. Attach a P6516 d igital probe (D0) to the demo
board’s XTALK 1 signal.
You have now attached both the analog and
the digital probes to the same te st point.
3. Push Default Setup.
Tektronix 4000 Oscilloscope Demo In struction Manual 97
