Analyze Waveform Data

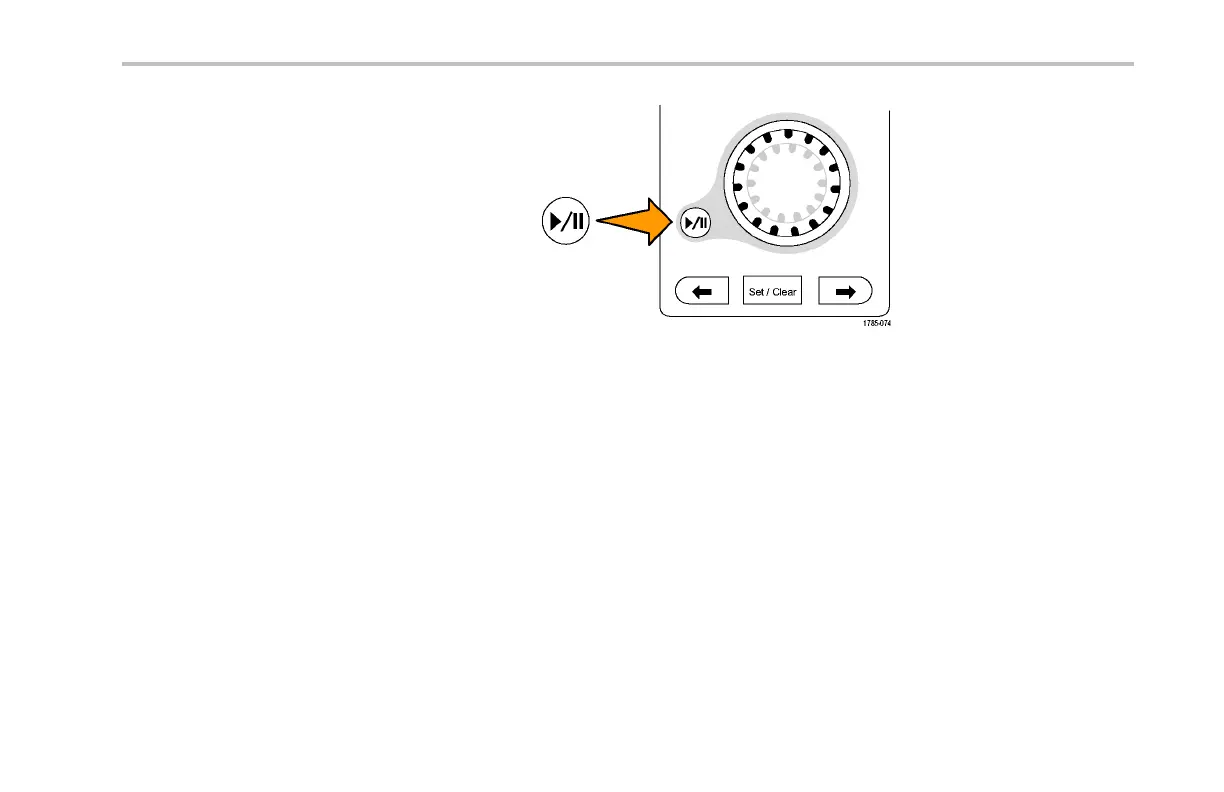

5. Pause the play-pause feature by pushing
the play-pause button again.
Searching and Marking Waveforms
You can mark locations of interest in th e acquired waveform. These marks help you limit your analysis to particular regions of the
waveform. You ca n mark areas of th e waveform automatically, if they m eet some special criteria, or you can manually mark each
item of interest. You can use arrow keys to jump f rom mark to mark (area of interest to area of interest). You can automatically
search and ma rk many of the same parameters that you can trigger on .
Search ma rks provide a w ay to mark a waveform region for reference. You can set marks auto m atically with search criteria. You
can search for and mark regions with particular edges, pulse widths, runts, logic states, rise/fall times, setup and hold, and bus
search types.
To manually set and clear (delete) marks:
MSO4000 and DPO4000 Series Oscilloscopes User Manual 229
