Application E xamp les
Using Autoset
To quickly display a signal:

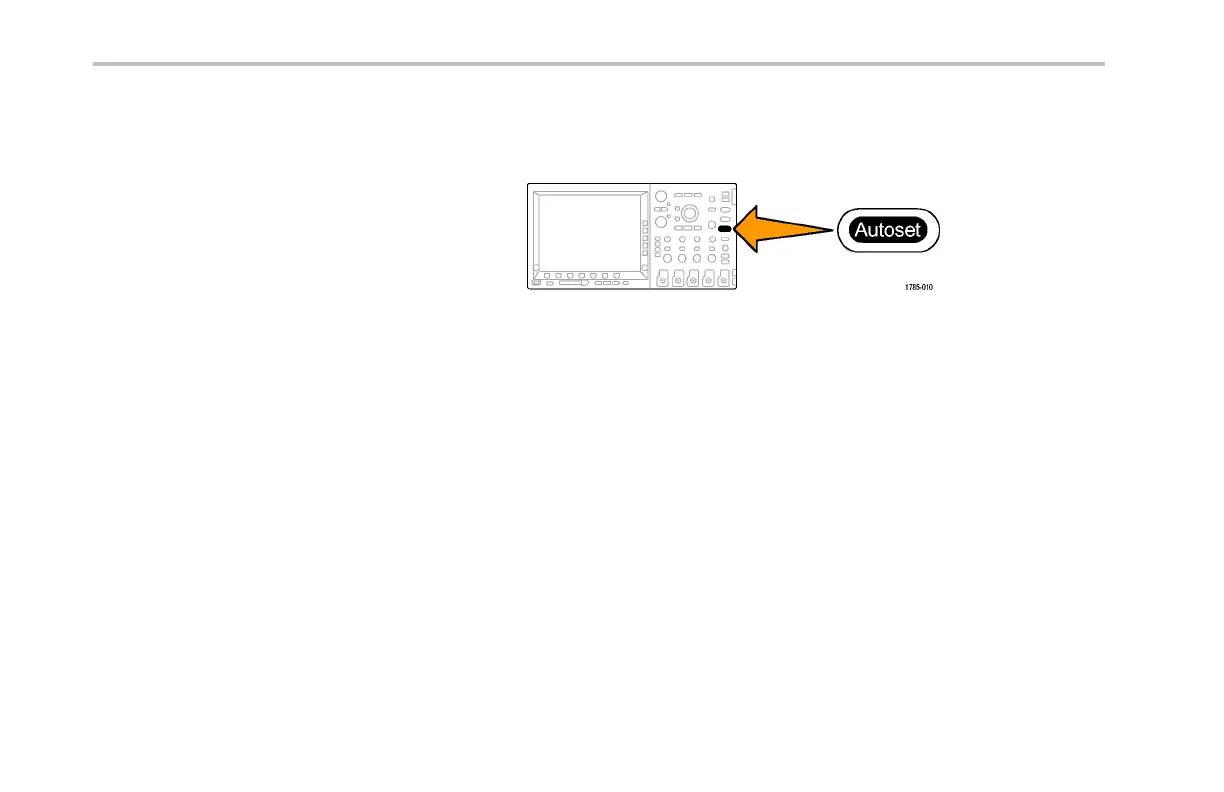

1. Push Au toset.
The oscilloscope sets vertical, horizontal, and trigger controls automatically. You can manually ad just any of these c ontro ls if you
need to optimize the display of the waveform.
When you are using more than one channel, the autoset function sets th e vertical controls fo r each channel and uses the
lowest-numbered active channel to set the horizontal and trigger controls.
Selecting Automatic Measurements
The oscilloscope can take au tomatic m easurements of most displayed signals. To measure signal frequency and peak-to-peak
amplitude:
270 MSO4000 and DPO4000 Series Oscilloscopes User Manual
