Giving Demos of Advanced Oscilloscope Features

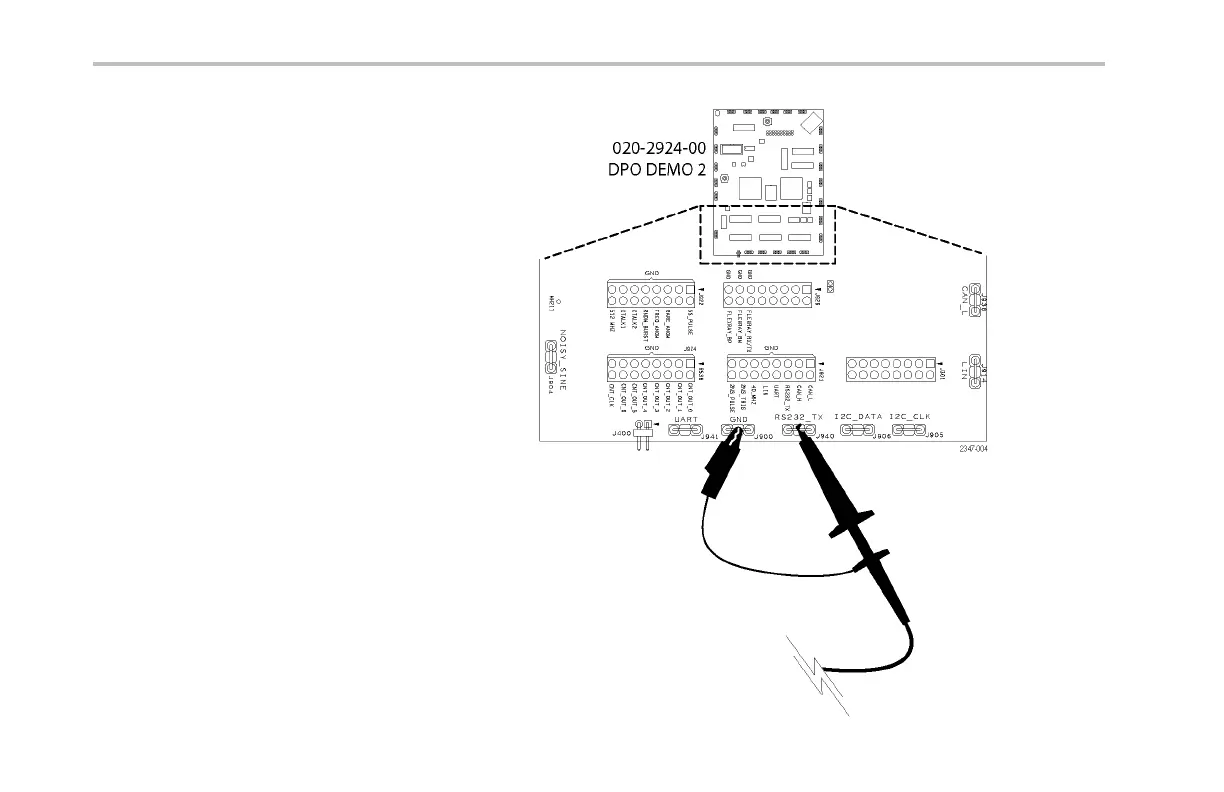

1. Attach a probe to channel 1. Then attach
it to the Demo 2 board’s GND point and
RS-232_TX signal.
60 Demo 2 Board Instruction Manual
