Tektronix MSO44 Quick Start Manual

2. T
ap a Plots button to add that plot for the measurement to the screen.

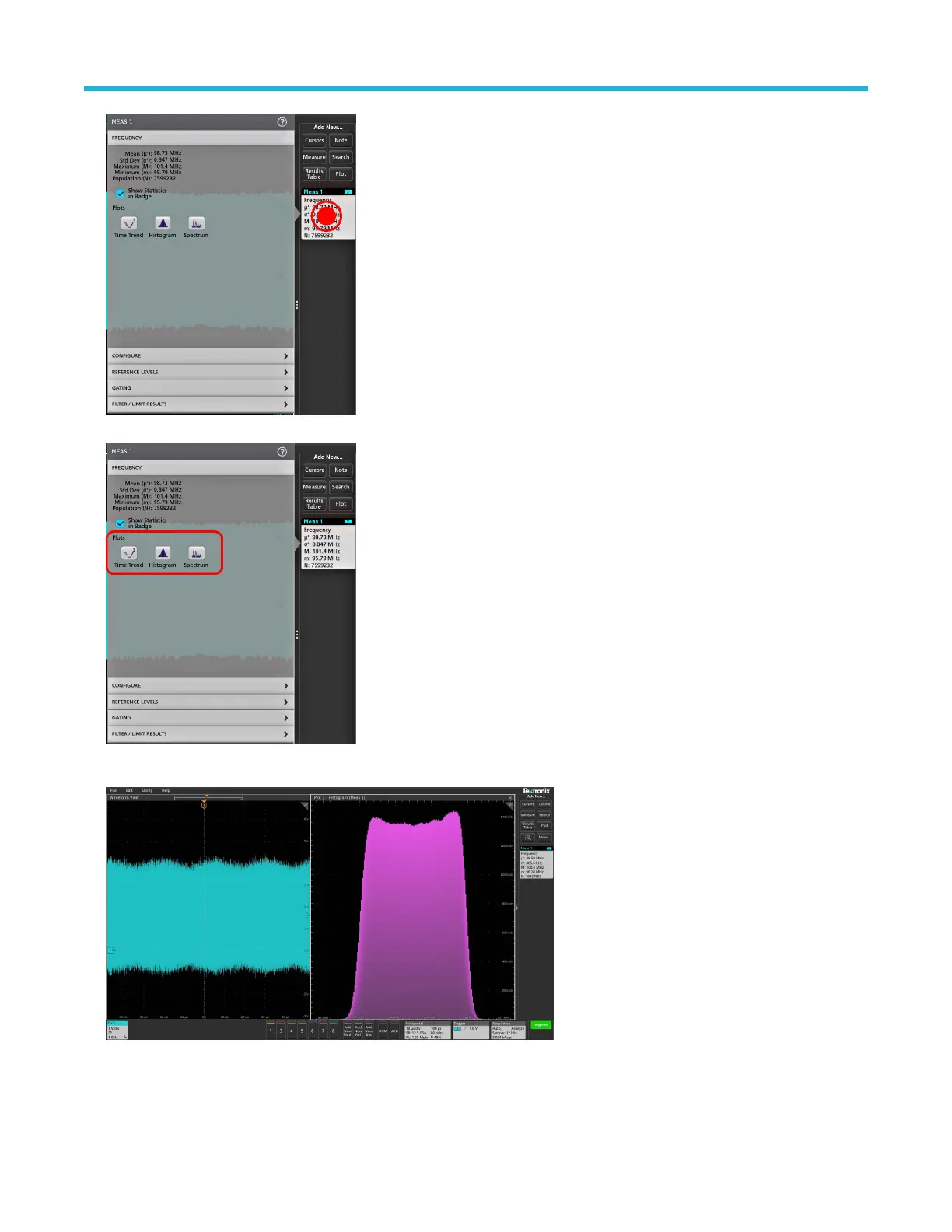

The following shows adding a Histogram plot.
You can add more than one plot to measurements (to different measurements or the same measurement). For example, you can add
two histogram plots for the same measurement, set one to display the X-Axis with a Logarithmic scale, and the other plot to display the
X-Axis with a Linear scale.
Operating basics
4 Series MSO MSO44, MSO46 Quick Start Manual 55

Tektronix MSO44 Specifications

General

Bandwidth	200 MHz, 350 MHz, 500 MHz, 1 GHz
Analog Channels	4
Operating Temperature	0 °C to +50 °C
Sample Rate	6.25 GS/s
Record Length	62.5 Mpoints
Input Impedance	1 MΩ ±1%, 50 Ω ±1%
Vertical Resolution	12 bits
Waveform Capture Rate	Up to 500, 000 wfm/s
Maximum Input Voltage	5 VRMS (50 Ω)
Probe Interface	TekVPI
Digital Channels	16 (optional)
