Tektronix MSO44 Declassification And Security Instructions

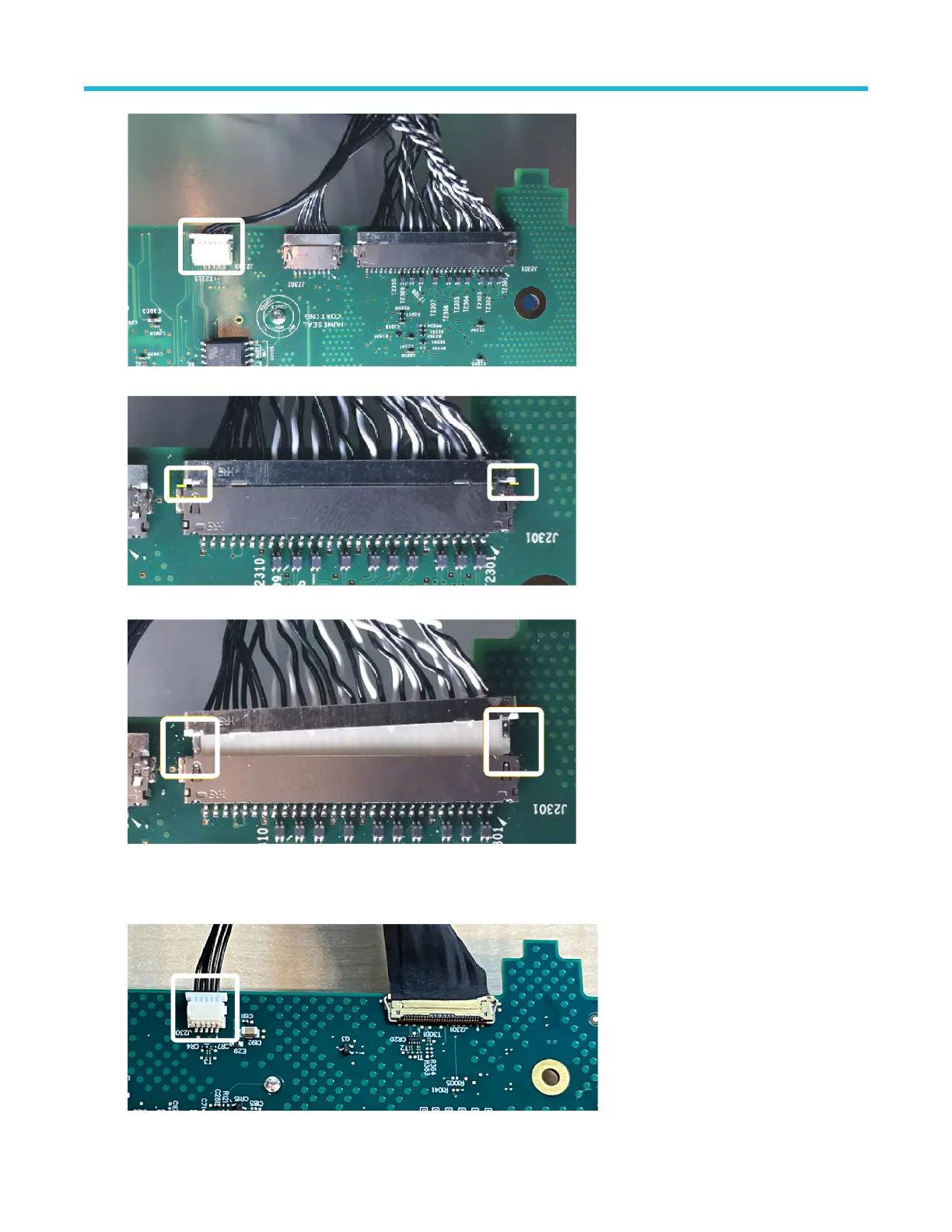

b. Position your fingernails so that they are between the edge of the larger-size cable connector and its board connector.
a. Gently push and rock the cable connector side to side to move the wire connector out of the board connector.
b. Repeat these steps to disconnect the remaining smaller cable connector.
5. For MSO44B and MSO46B instruments:
a. Disconnect the small white plastic cable connector.
Clear and sanitize procedures
MSO44, MSO46, MSO44B, and MSO46B 4 Series Mixed Signal Oscilloscopes Declassification and Security Instructions 15

Tektronix MSO44 Specifications

General

Bandwidth	200 MHz, 350 MHz, 500 MHz, 1 GHz
Analog Channels	4
Operating Temperature	0 °C to +50 °C
Sample Rate	6.25 GS/s
Record Length	62.5 Mpoints
Input Impedance	1 MΩ ±1%, 50 Ω ±1%
Vertical Resolution	12 bits
Waveform Capture Rate	Up to 500, 000 wfm/s
Maximum Input Voltage	5 VRMS (50 Ω)
Probe Interface	TekVPI
Digital Channels	16 (optional)
