Tektronix MSO46B Instructions

How to sanitize a nonfunctional instrument
6.
Remove the rear plastic case from the instrument:
a.
Use a Torx T-10 screwdrive r to remove the six (6) screws from the back of the instrument case.
b.
Lifttherearplasticcaseoffthebackoftheinstrument,andsetitaside.
7.
Separate the rear metal chassis from the front chassis (with the instrument still in the bottom-up position):
a.
Use a Torx T-10 screwdriver to remove the 25 screws securing the rear chassis to the front chassis. There are 24
screws around the chassis edges, and one (1) screw beneath the HDMI connector.
b.
Remove the three (3) nuts and washers from the BNC connectors.
c.

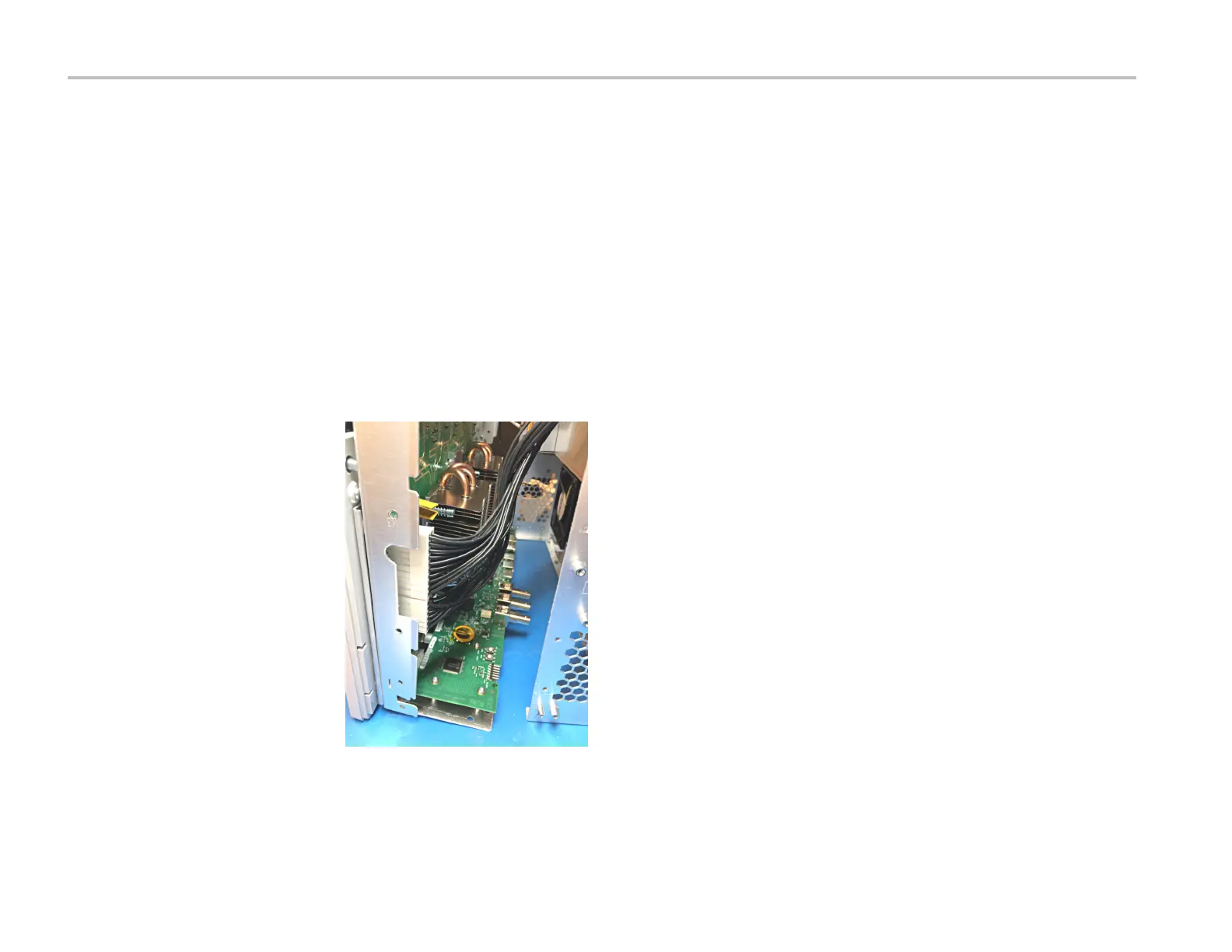

Gently pry apart the rear chassis assembly. The rear chassis is held in position mostly by the friction of the
three BNC connectors.
d.
Continue prying the chassis apart until you have the two halves separated and can access the cables.
10 4 Series MSO Opt. 4–SEC Declassification and Security Instructions
