Page #38 background image

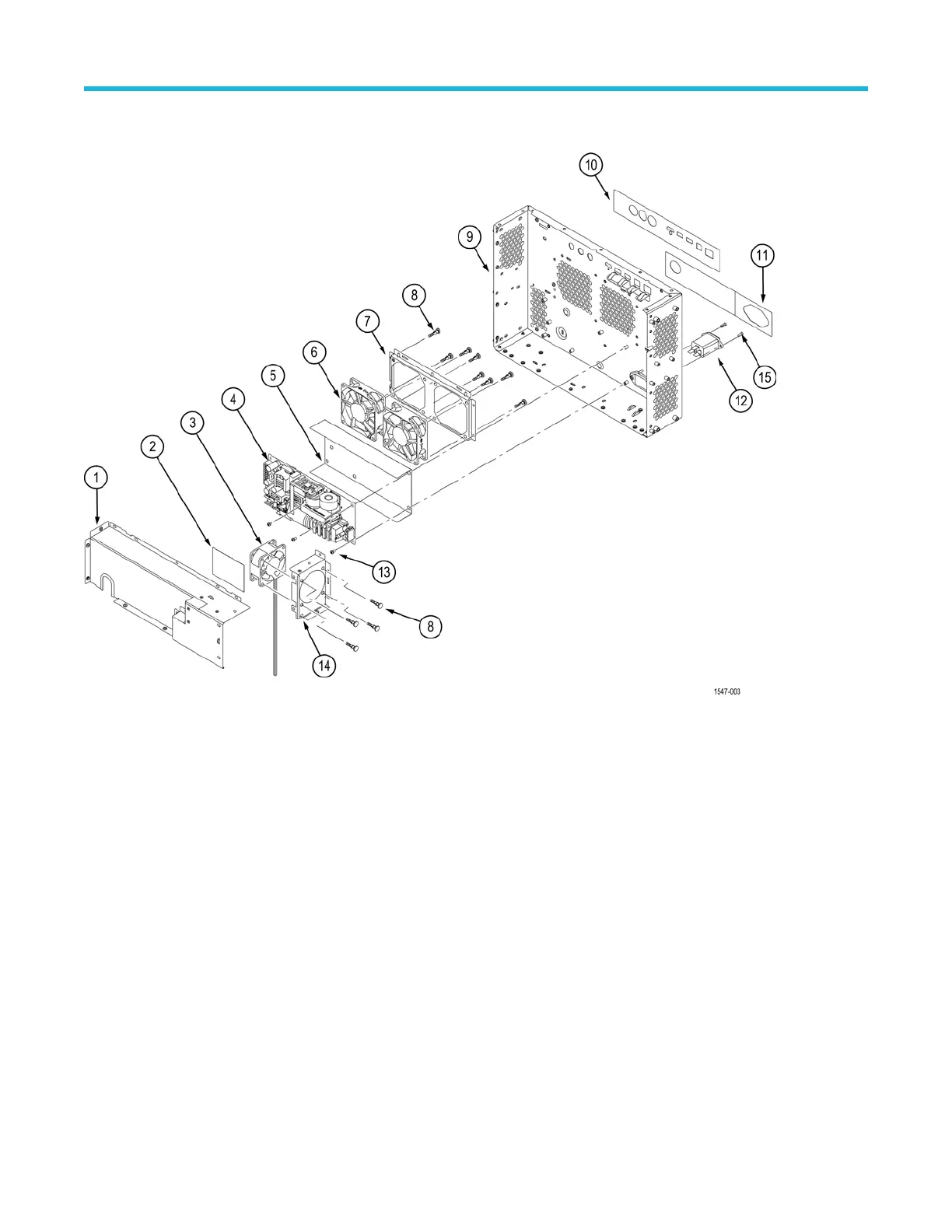

Rear chassis assembly with power supply and fans

Figure 5: Rear chassis assembly with power supply and fans - exploded view

Replaceable parts

4 Series MSO (MSO44, MSO46) Service 38

Table of Contents

Other manuals for Tektronix MSO46B

Instructions22 pages

Quick Start Manual65 pages

Installation And Safety73 pages

Declassification And Security Instructions16 pages

Questions and Answers:

E
Eric LesterAug 12, 2025
How to fix Tektronix Test Equipment that will not power on?
- D
  David MyersAug 12, 2025
  If your Tektronix Test Equipment instrument won't power on, first, make sure the power cord is properly plugged in. If it still fails to power on, the power supply may be faulty and need replacement. As a last resort, the micro-controller assembly might be defective and require replacement.

Tektronix MSO46B Specifications

General

Analog Channels	4
Operating Temperature	0 °C to +50 °C
Digital Channels	16
Sample Rate	6.25 GS/s (all analog / digital channels)
Record Length	62.5 Mpoints
Vertical Sensitivity	1 mV/div to 10 V/div
Trigger Types	Edge, Pulse Width, Logic, Setup/Hold, Rise/Fall Time, Video, Serial
Vertical Resolution	up to 12 bits
Probe Interface	TekVPI
Bandwidth	1 GHz, 500 MHz, 350 MHz
Input Impedance	1 MΩ ±1% with 14 pF ±2 pF; 50 Ω ±1.5%
