Installatio n
For additional information about i nstallation, option activation a nd
operation, refer to the SignalVu-PC Read This First document, located
in SignalVu-PC under Help/Q uick Start Manual (PDF).
Load the API a nd USB driver software
Load the software using the procedure below.
1. Insert the fl ash drive included with the analyzer into the host PC.
Windo ws File Explorer should open automatically. If it does not,
open it manu ally and b rowse to the flash drive folder.
2. Select Tektronix RSA306 API and USB from the list of fo lder s .
3. Double-click Setup.exe and follow the on-screen in structions to
install the software.
Make the connections
Refer to the front panel illustratio n for connector locations. (See
Figure3onpage8.)
1. After the software has been installed, connect the USB cable
included with the analyzer between the analyzer and the host PC.
2. Connect an RF cable between the RSA306 input and the signal
source. (See Figure 2.)

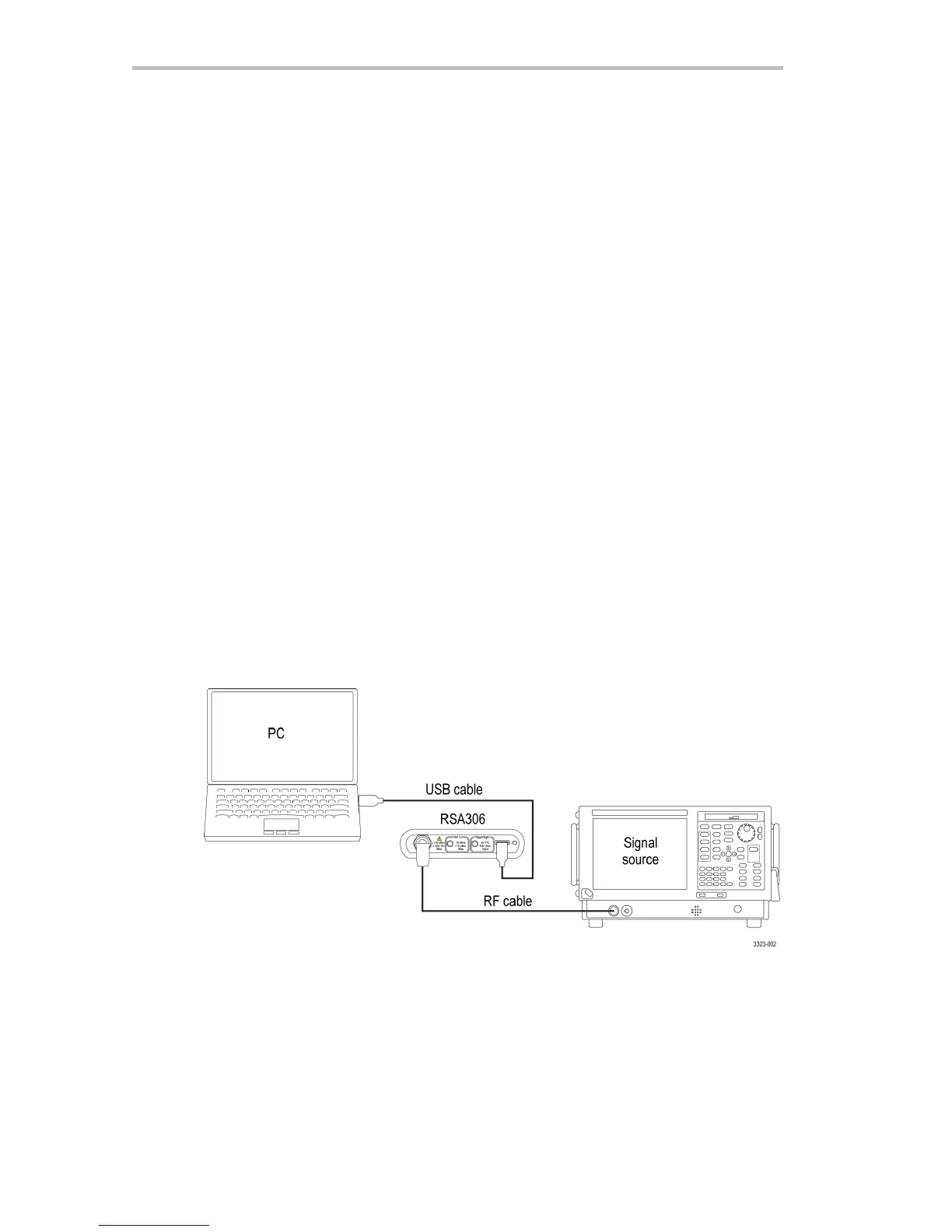

Figure 2: Instrument connections
3. Start the SignalVu-PC applicationonyourPC.
4. Click Live Link on the m enu b ar to view the drop down menu.
6 RSA306 Installation and Safety Instructions
