Kit description
Installation

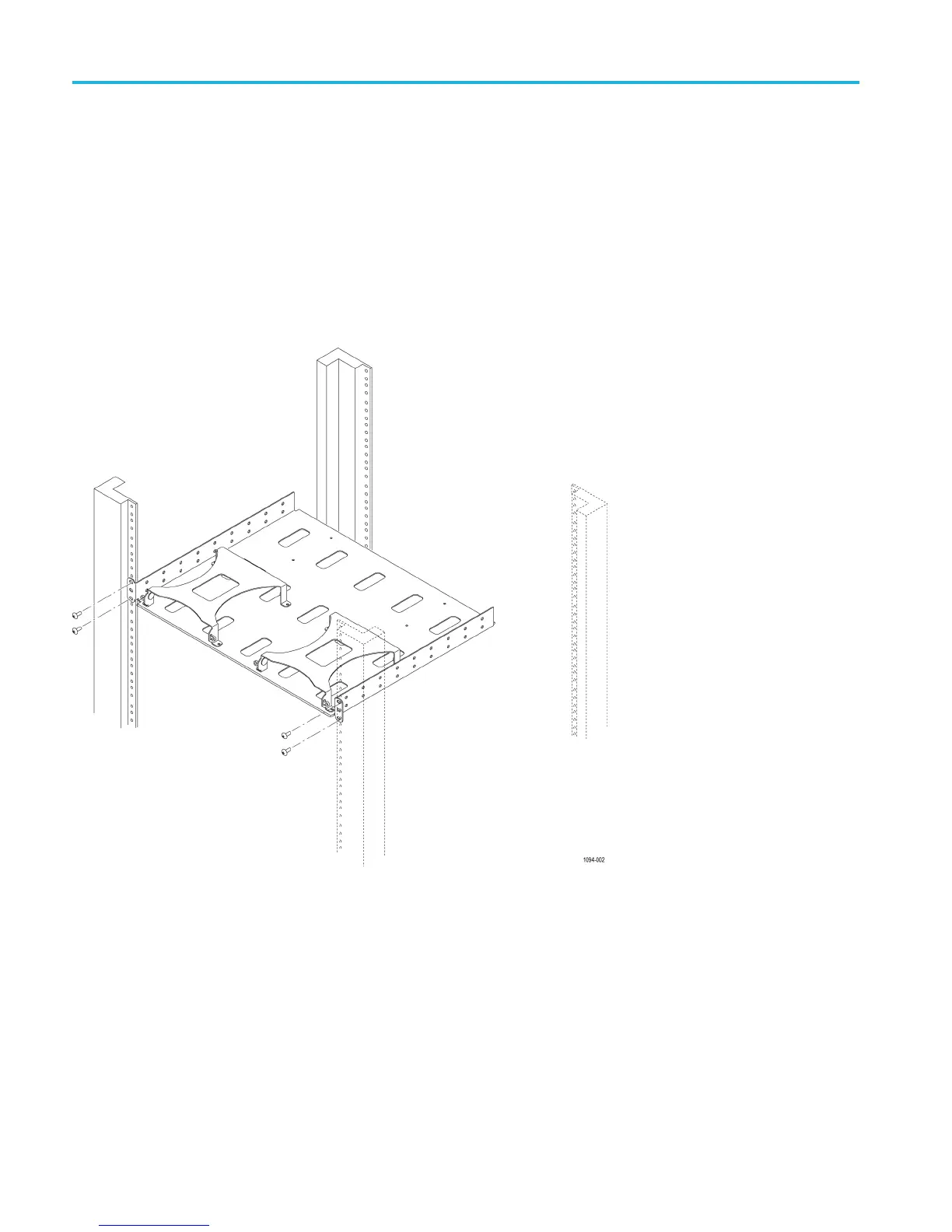

The rack frame come s completely assembled with the face plate and closure plate
in place. Use the following procedure and refer to the illustration to assemble the
rackmount hardware and install the instrument into the rack. (See Figure 1.)
1. Remove the front bracket (item 1) and front closure bracket (item 2) by
unscrewing the four thumb screws.
2. Attach the RSA306B p reassembled main bracket (item 3) into your rack
chassis using four 10-32 screws.
4 RSA306B Rackmount Kit Installation
