Troubleshooting

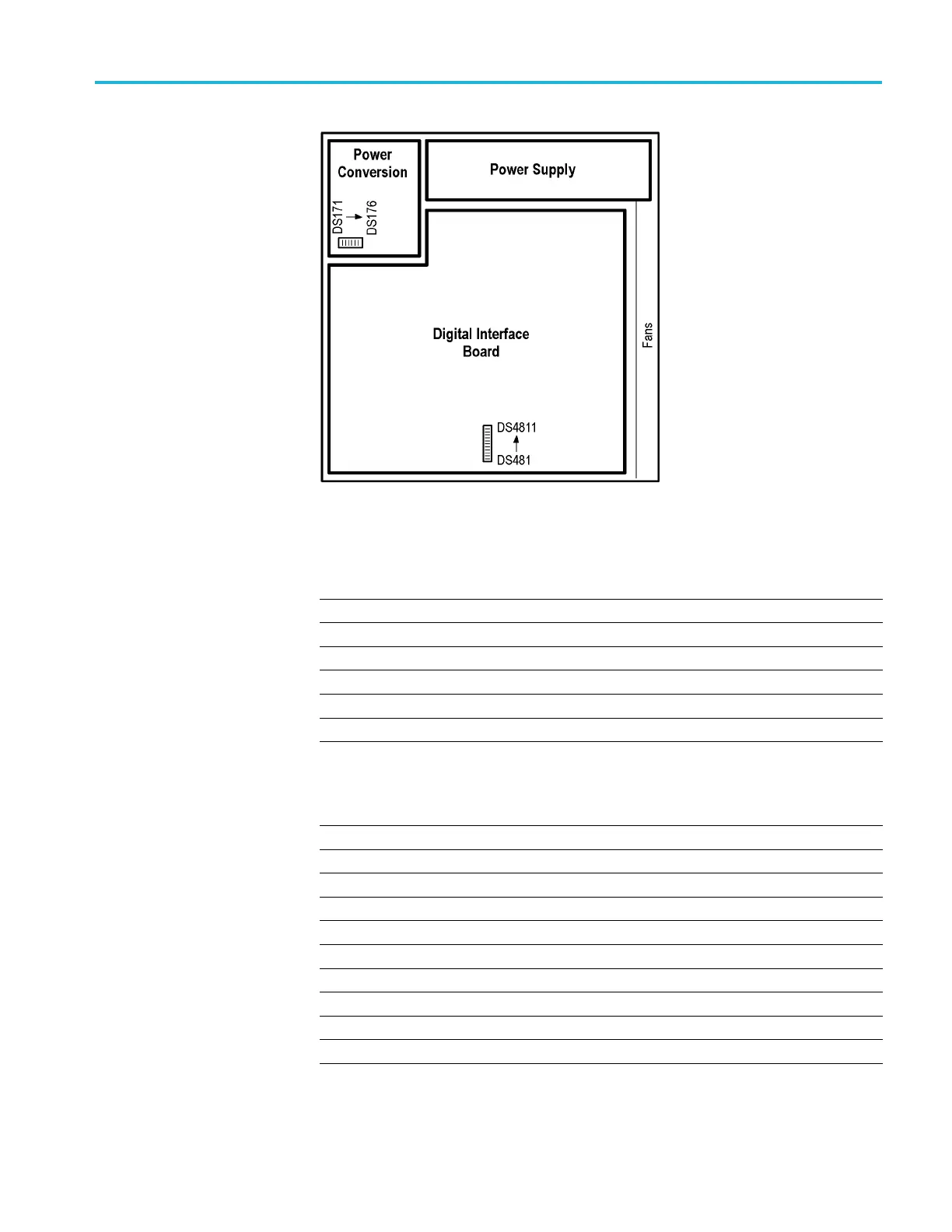

Figure 3-3: Status indicator locations

Table 3-7: Power converter board LED status indicators

LED Status Indication

DS171 STANDBY

DS172 -15 V OK

DS173 -8 V OK

DS174 +8 V OK

DS175 +15 V OK

DS176 +30 V OK

Table 3-8: Digital interface board LED status indicators

LED Sta

tus Indication

481

OCK FAIL (normally off)

S482

5VSBOK

S483

5VOK

DS484 +3.3 V OK

DS485 +2.5 V OK

DS486 +1.8 V OK

DS487 +1.5 V OK

DS488 FPGA INIT

DS489 FPGA DONE

DS4810 STATUS 0

RSA5100B Series Service Manual 3–19
