Installation instructions
Install rear panel cover insert into instrument
1. Remove the blank, rear-panel cover from the chassis (attached with eight T15
Torx-head screws). Discard the blank panel.
2. Install the new rear-panel cover (with attached cabling) on the rear panel
chassis using eight T15 Torx-head screws. Torque these screws to 10.0 in/lb.
(See Figure 3.)

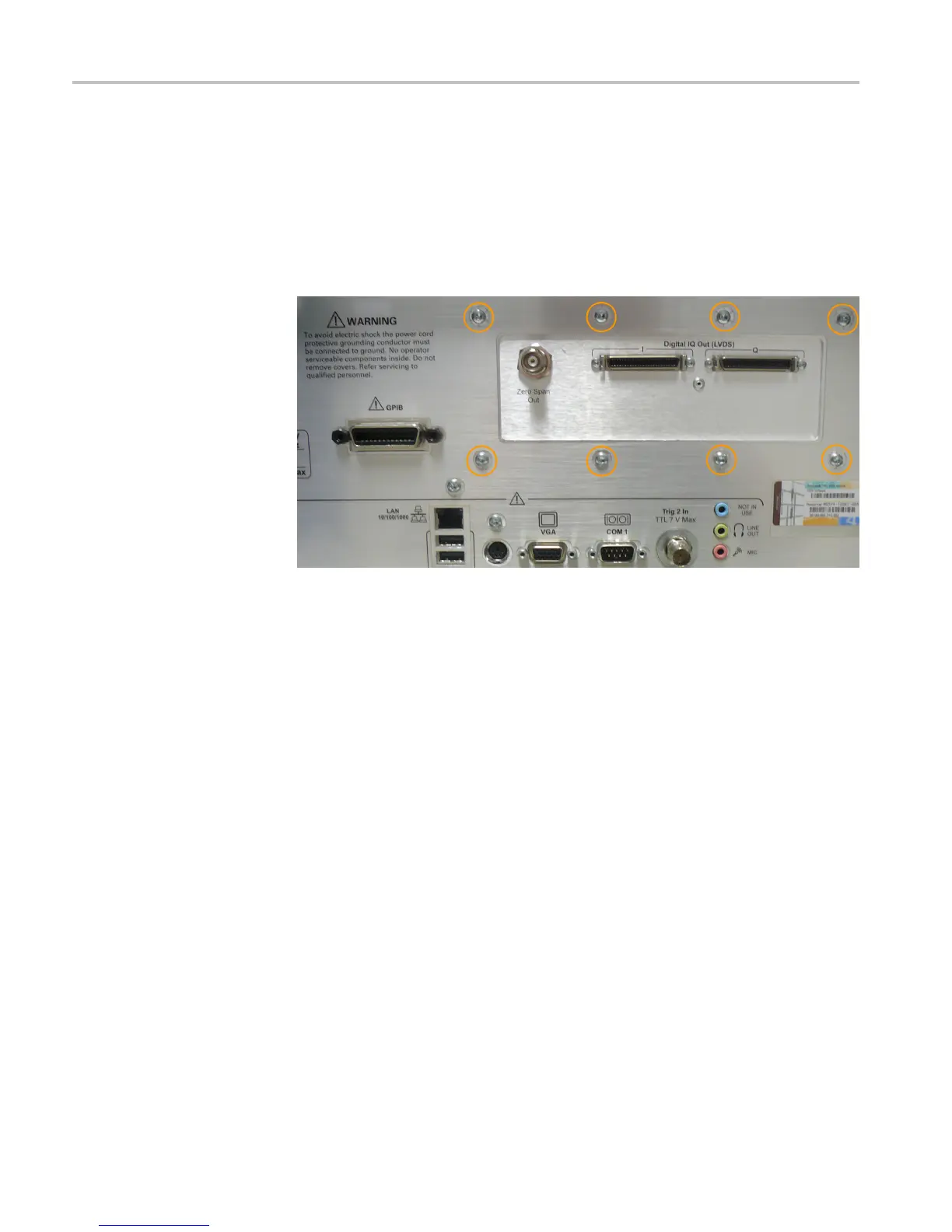

Figure
3: Installing the rear panel cover on the rear panel of the chassis
