Tektronix SPG600 - Figure 14: Audio Menu Diagram

Menus
14
SPG600 & SPG300 Sync Pulse G enerators Quick Reference Manual
Audio Menu
Pressing the AUDIO button displays the Audio menu. This menu lets you set the
parameters of the AES/EBU audio and embedded audio in the serial digital
signal. Use the up (
Y)ordown(B) arrow button to scroll through the menu.
Figure 14 shows the Audio menu.
Press the AUDIO button
ANALOG
Left
Left
Right
Both
To Audio c hannel submenu
(page 17)
ENTER
CANCEL
AES/EBU
To AES/EBU submenu
(page 15)
ENTER
CANCEL
EMBEDDED (STD/BLK)
Group 1
Group 1 Group 3
Group 2 Group 4
To Embedded submenu
(page 16)
ENTER
CANCEL
EMBEDDED (STD/TEST)
Group 1
Group 1 Group 3
Group 2 Group 4
To Embedded submenu
(page 16)
ENTER
CANCEL
EMBEDDED (OPT/BLK)
Group 1
Group 1 Group 3
Group 2 Group 4
To Embedded submenu
(page 16)
ENTER
CANCEL
EMBEDDED (OPT/TEST)
Group 1
Group 1 Group 3
Group 2 Group 4
To Embedded submenu
(page 16)
ENTER
CANCEL
SPG600 Option 03 only

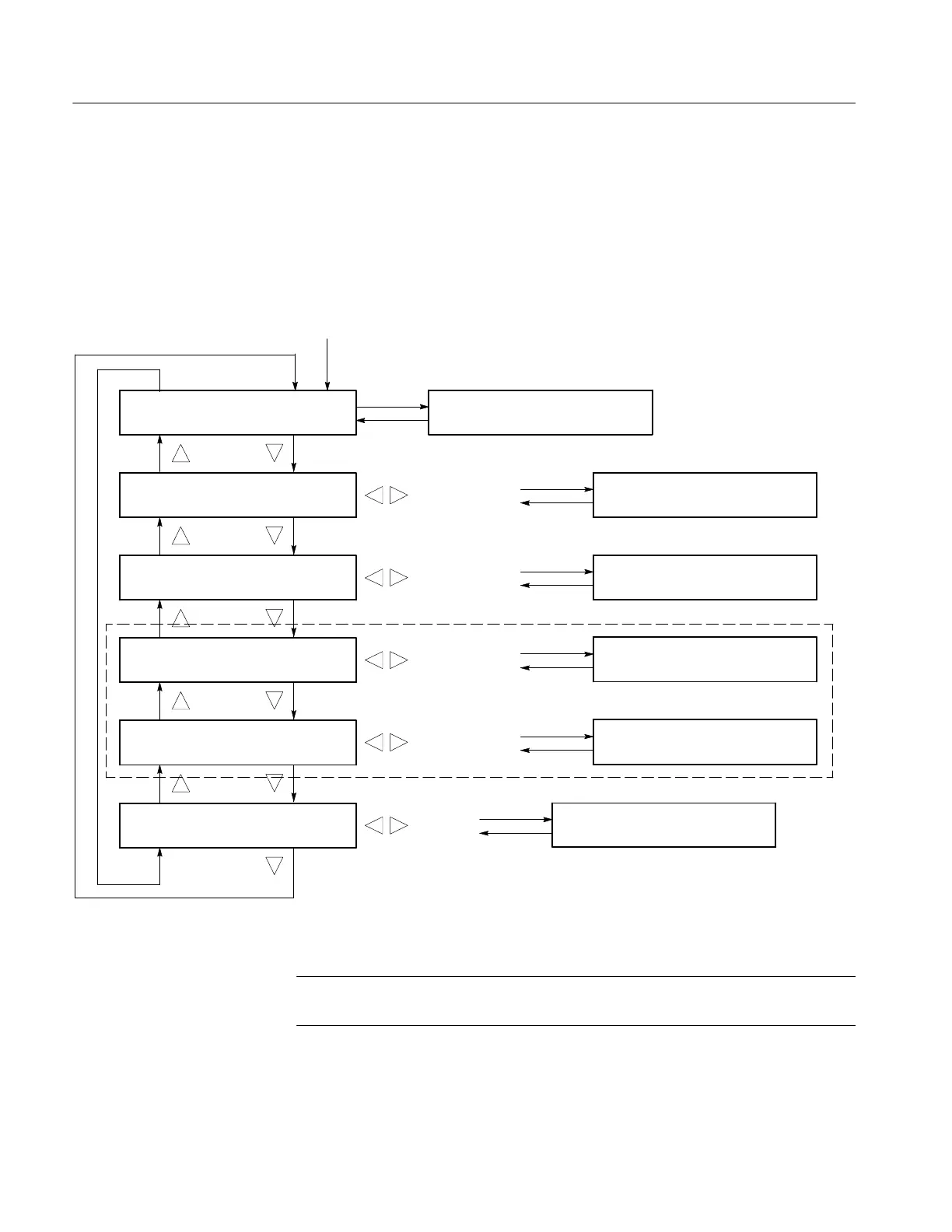

Figure 14: Audio menu diagram
NOTE. The ANALOG menu item is only available when you select Analog Audio
in the CONFIGRATION: XLR OUTPUT menu.
