Specifications
TCP404XL Maxi
mum Measurement Times
The m aximum measurement time for the TCP404XL probe with varying duty
cycles and temperatures are shown in the following three graphs. Details about the
relationshi
p between measurement factors are available. (See page 28, Measuring
Noncontinuous Current with the TCP404XL Probe.)

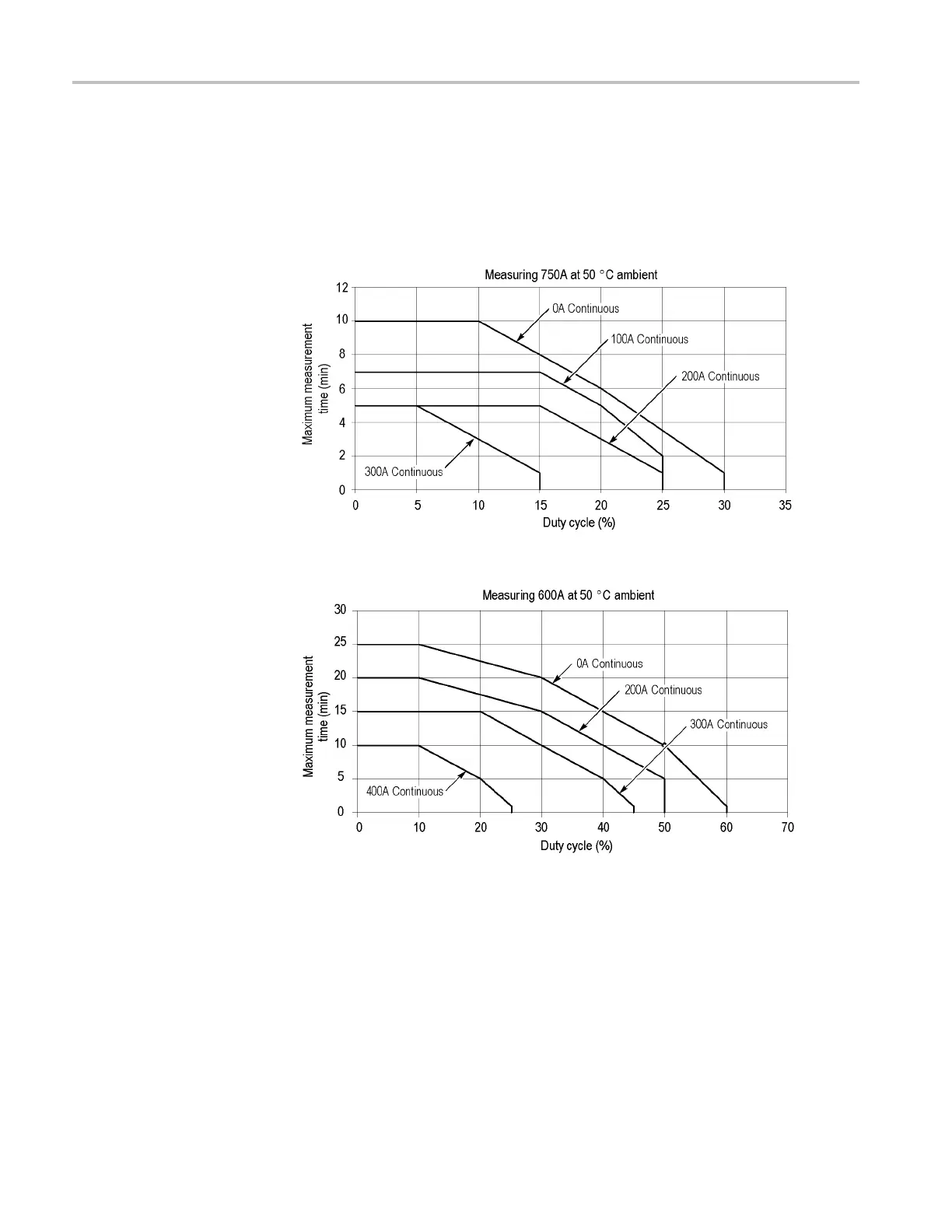

Figure 34: Measuring 750A noncontinuous at 50 °C ambient temperature
Figure 35: Measuring 600A noncontinuous at 50 °C ambient temperature
