Maintenance
TDS 200 Series Digital Oscilloscope Service Manual
6
–
9
Installation.
Use this procedure to install the feet.
1.
Place the rear case face down on a soft surface (such as an anti-static mat).
2.

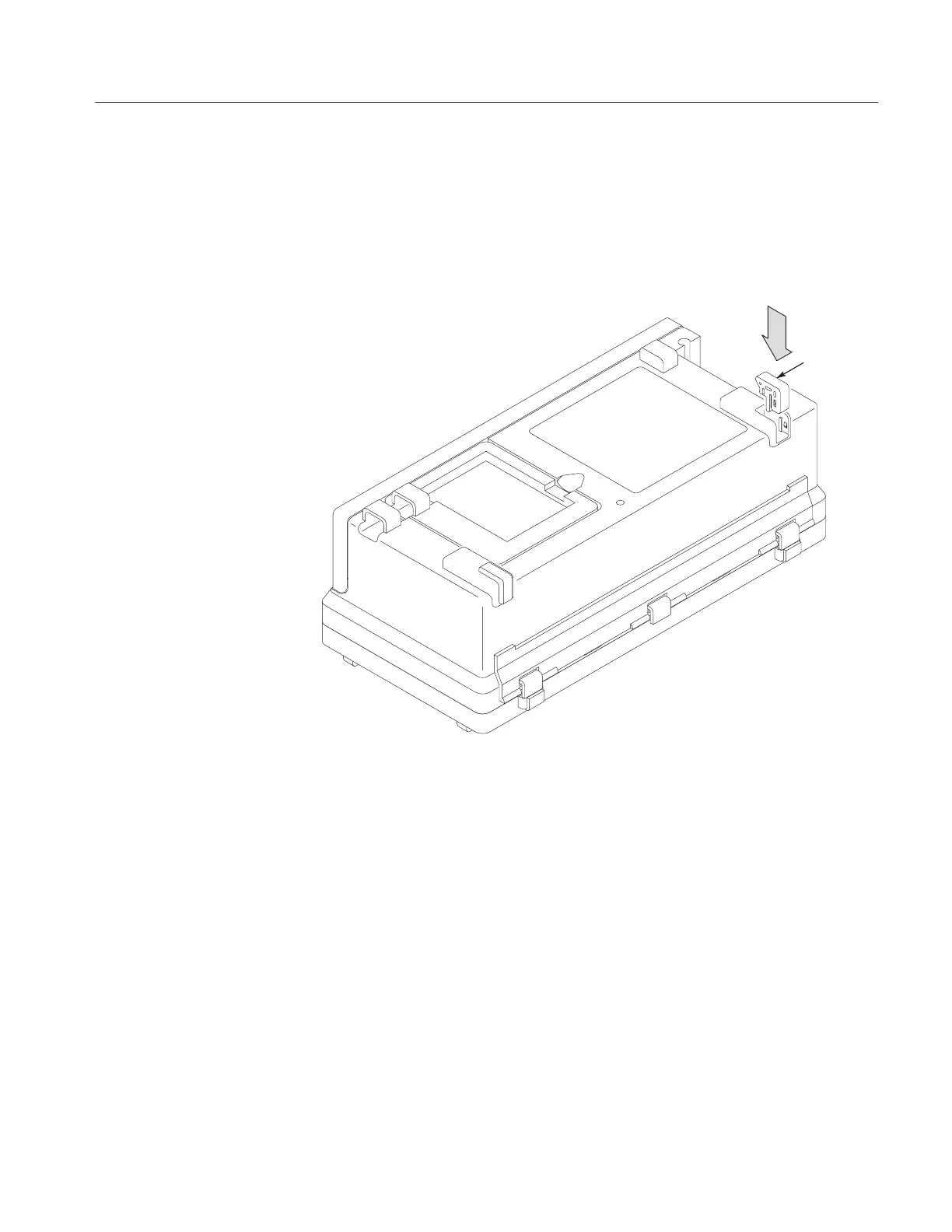

Align the slots of the rear foot with the guides in the rear case as shown in
Figure 6
–
2 and press the foot in.
Rear foot
(2)
Figure 6
–
2: Installing the rear feet
64
66
