Command Descriptions
TDS Family Oscilloscope Programmer Manual
2–205
FACtory selects the factory setup.
<NR1> is a value in the range from 1 to 10 and specifies a setup storage location.
Using an out-of-range value causes an execution error (222, “Data out of range”).
<file path> (available on instruments with the Option 1F File System) is the
location in mass storage memory where the setup will be recalled from.
<file path> is a quoted string that defines the file name and path. Input the file
path using the form <drive>/<dir>/<filename>. <drive> and one or more
<dir>s are optional. If you do not specify them, the TDS will read the file from
the default directory. <filename> stands for a filename of up to 8 characters
followed by a period (“.”) and any 3-character extension. Do not use wild card
characters.
RECALL:SETUP FACTORY
recalls (and makes current) the front panel setup to its factory defaults.
RECALL:SETUP 1
recalls the front panel setup from setup1.
RECALL:SETUP TEK00000.SET"
recalls the front panel setup from the file TEK00000.SET in the default directory
and on the default drive.
RECAll:WAVEform (No Query Form)
TDS 5XXA, 6XXA, & 7XXA Only
Recalls a stored waveform into a reference location. This command is equivalent
to selecting Recall File in the Save/Recall Waveform menu.
Save and Recall
RECAll:WAVEform <file path>,REF<x>

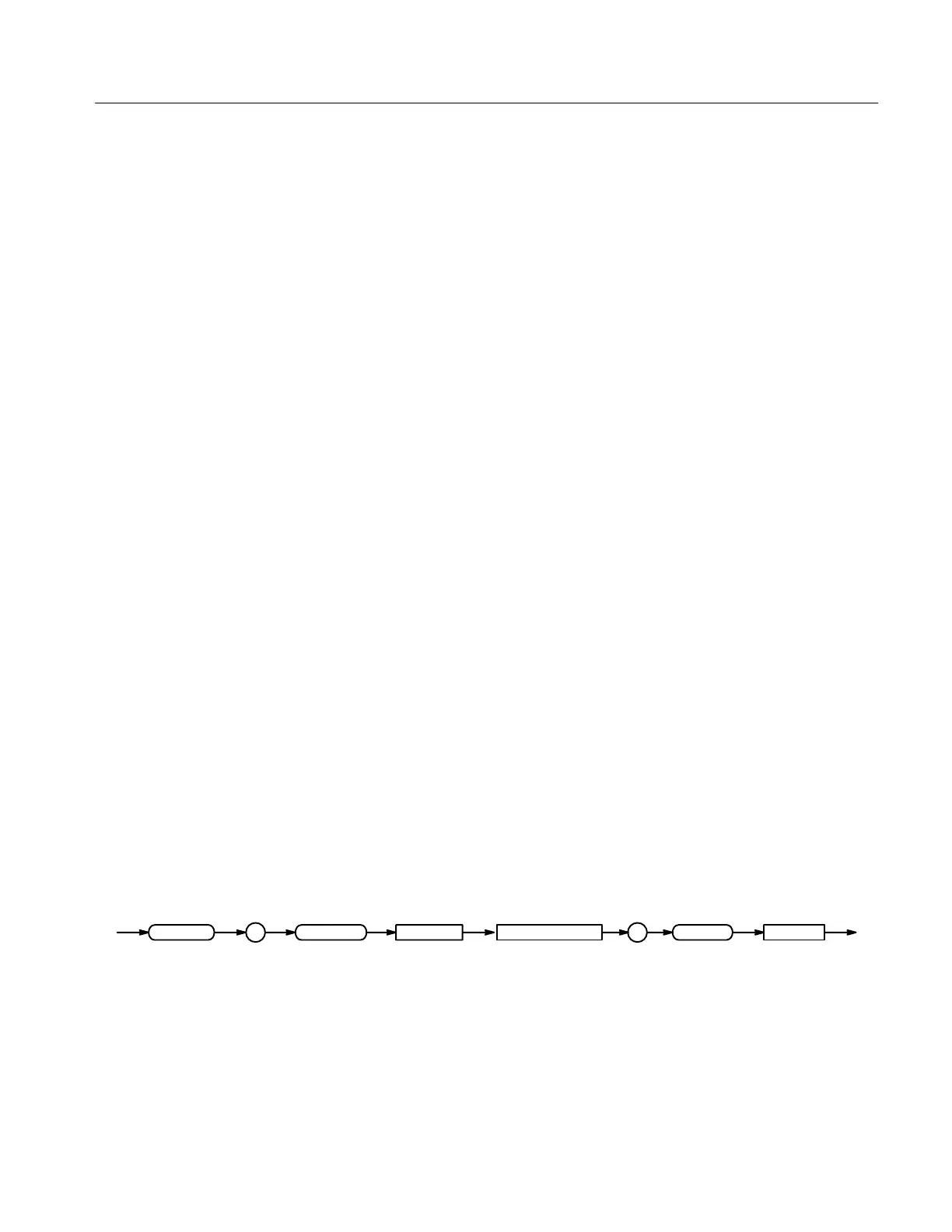

RECAll : WAVEform <file path> REF <x>,<Space>
REF<x> is the location in internal reference memory where the waveform is
recalled from.
<file path> is a quoted string that defines the file name and path. Input the file
path using the form <drive>/<dir>/<filename>. <drive> and one or more
<dir>s are optional. If you do not specify them, the TDS will recall the
waveform from the default directory. <filename> stands for a filename of up to
Arguments
Examples
Group
Syntax
Arguments
