Tektronix TDS 500B Programming Manual

Command Descriptions
TDS Family Oscilloscope Programmer Manual
2–249
TRIGger:MAIn:PULse?
TRIGger :
:
PULse
MAIn ?
TRIGGER:MAIN:PULSE?
might return :TRIGGER:MAIN:PULSE:CLASS GLITCH;SOURCE CH1;
GLITCH:WIDTH 2.0E-9;FILTER ACCEPT;POLARITY POSITIVE;:TRIGGER:
MAIN:PULSE:RUNT:POLARITY POSITIVE;THRESHOLD:HIGH 2.00E+0;LOW
800.0E-3;:TRIGGER:MAIN:PULSE:WIDTH:LOWLIMIT 2.0E-9;HIGHLIMIT
2.0E-9;WHEN WITHIN;POLARITY POSITIVE as the current main pulse trigger
parameters.
TRIGger:MAIn:PULse:CLAss
TDS 5XXA, 6XXA, & 7XXA Only
Sets or queries the type of pulse to trigger on. This command is equivalent to
selecting Class in the Trigger menu.
Trigger

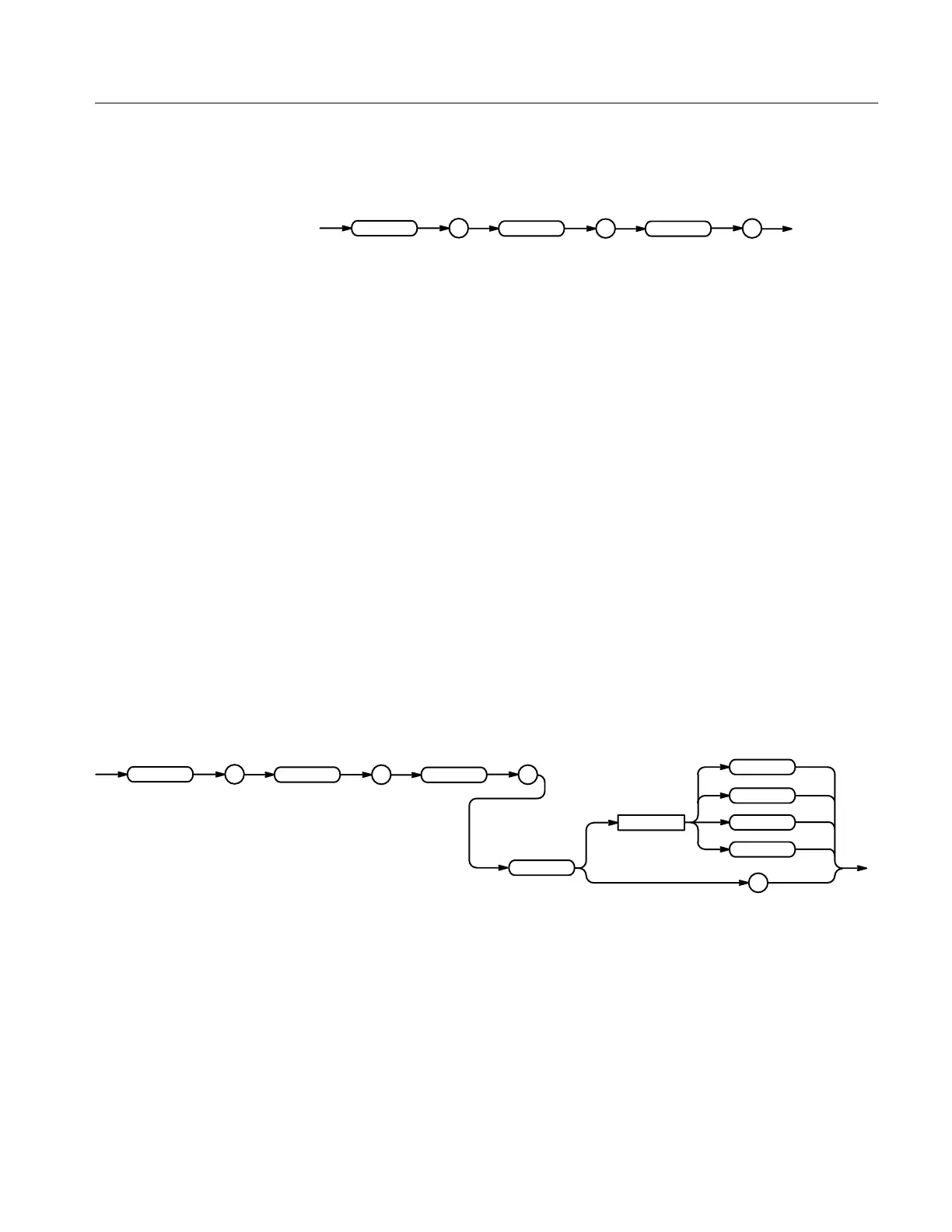

TRIGger:MAIn:PULse:CLAss { GLItch | RUNT | WIDth |
SLEWRate (TDS 684A & 7XXA only)}
TRIGger:MAIn:PULse:CLAss?
<Space>
RUNT
?
TRIGger
:
:
PULse
MAIn :
CLAss
WIDth
SLEWRate
GLItch
GLItch triggers when a pulse is found that is of the specified polarity and width.
These are set with the commands TRIGger:MAIn:PULse:GLItch:POLarity and
TRIGger:MAIn:PULse:GLItch:WIDth.
RUNT triggers when a pulse crosses the first preset voltage threshold but does not
cross the second preset threshold before recrossing the first. The thresholds are
set with the TRIGger:MAIn:PULse:RUNT:THReshold:LOW and TRIG-
ger:MAIn:PULse:RUNT:THReshold:HIGH commands. The crossing can be
either positive or negative as specified by TRIGger:MAIn:PULse: RUNT:PO-
Larity.
Syntax
Examples
Group
Syntax
Arguments
