Command Descriptions
2–250
TDS Family Oscilloscope Programmer Manual
WIDth triggers when a pulse is found that has the specified polarity and is either
inside or outside the limits as specified by TRIGger:MAIn:PULse: WIDth:LOW-
Limit and TRIGger:MAIn:PULse:WIDth:HIGHLimit. The polarity is selected
using the TRIGger:MAIn:PULse:WIDth:POLarity command.
SLEwrate triggers when the slew rate of the source violates the specified
conditions (TDS 684A & 7XXA only).
TRIGGER:MAIN:PULSE:CLASS WIDTH
specifies a width pulse for the main trigger.
TRIGger:MAIn:PULse:GLItch? (Query Only)
TDS 5XXA, 6XXA, & 7XXA Only
Returns the current main glitch pulse trigger parameters.
Trigger

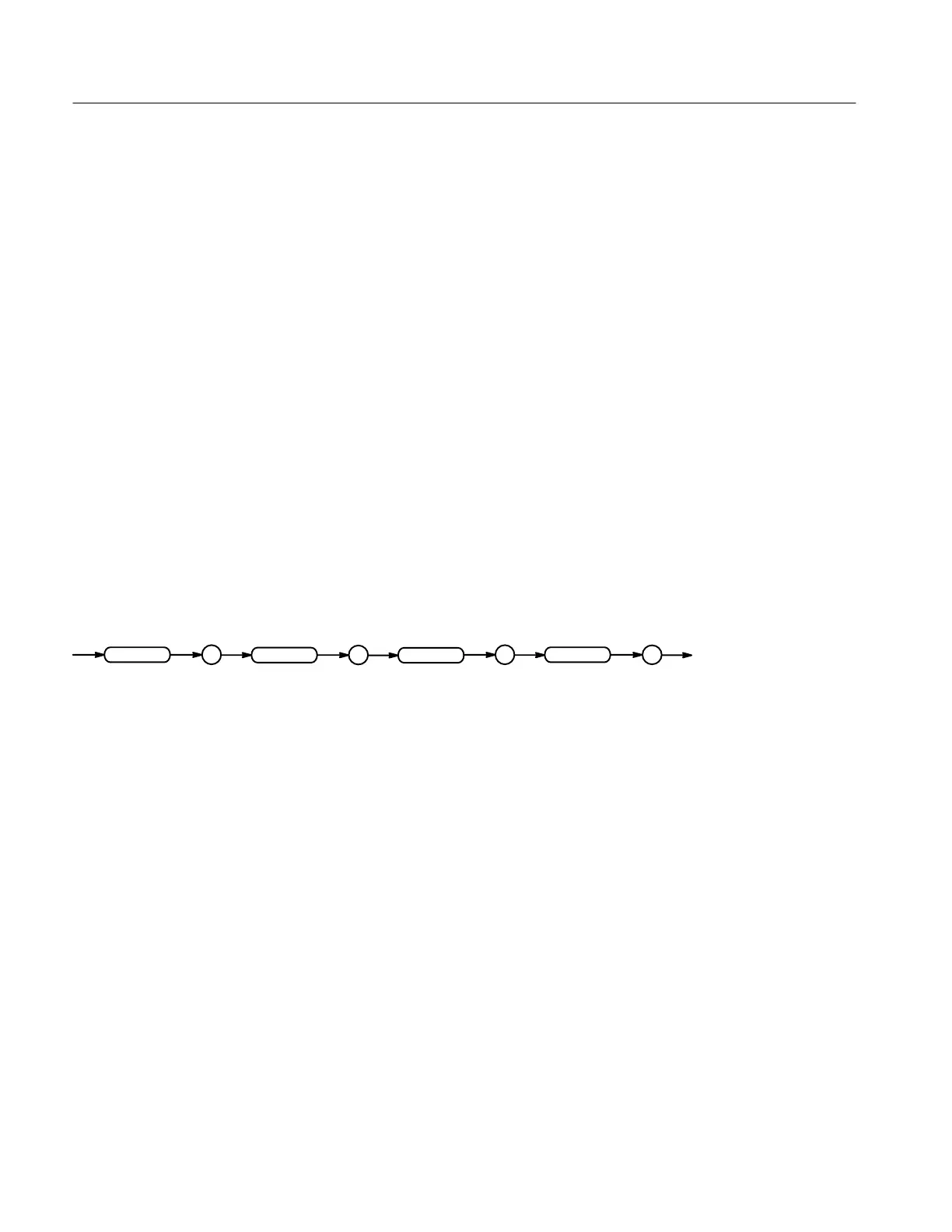

TRIGger:MAIn:PULse:GLItch?
TRIGger :
:
PULse
MAIn
GLItch
?
:
TRIGGER:MAIN:PULSE:GLITCH?
might return :TRIGGER:MAIN:PULSE:CLASS GLITCH;SOURCE CH1;
GLITCH:WIDTH 2.0E-9;FILTER ACCEPT;POLARITY POSITIVE.
TRIGger:MAIn:PULse:GLItch:FILTer
TDS 5XXA, 6XXA, & 7XXA Only
Controls glitch detection. This command is equivalent to selecting Filter in the
Trigger menu.
Trigger
TRIGger:MAIn:PULse:GLItch:FILTer { ACCept | REJect }
TRIGger:MAIn:PULse:GLItch:FILTer?
Examples
Group
Syntax
Examples
Group
Syntax
