Command Descriptions

TDS Family Oscilloscope Programmer Manual

2–71

CURSor

HBArs

DELTa ?

<NR3>

CURSOR:HBARS:DELTA?

might return 5.08E+0 for the voltage difference between the two cursors.

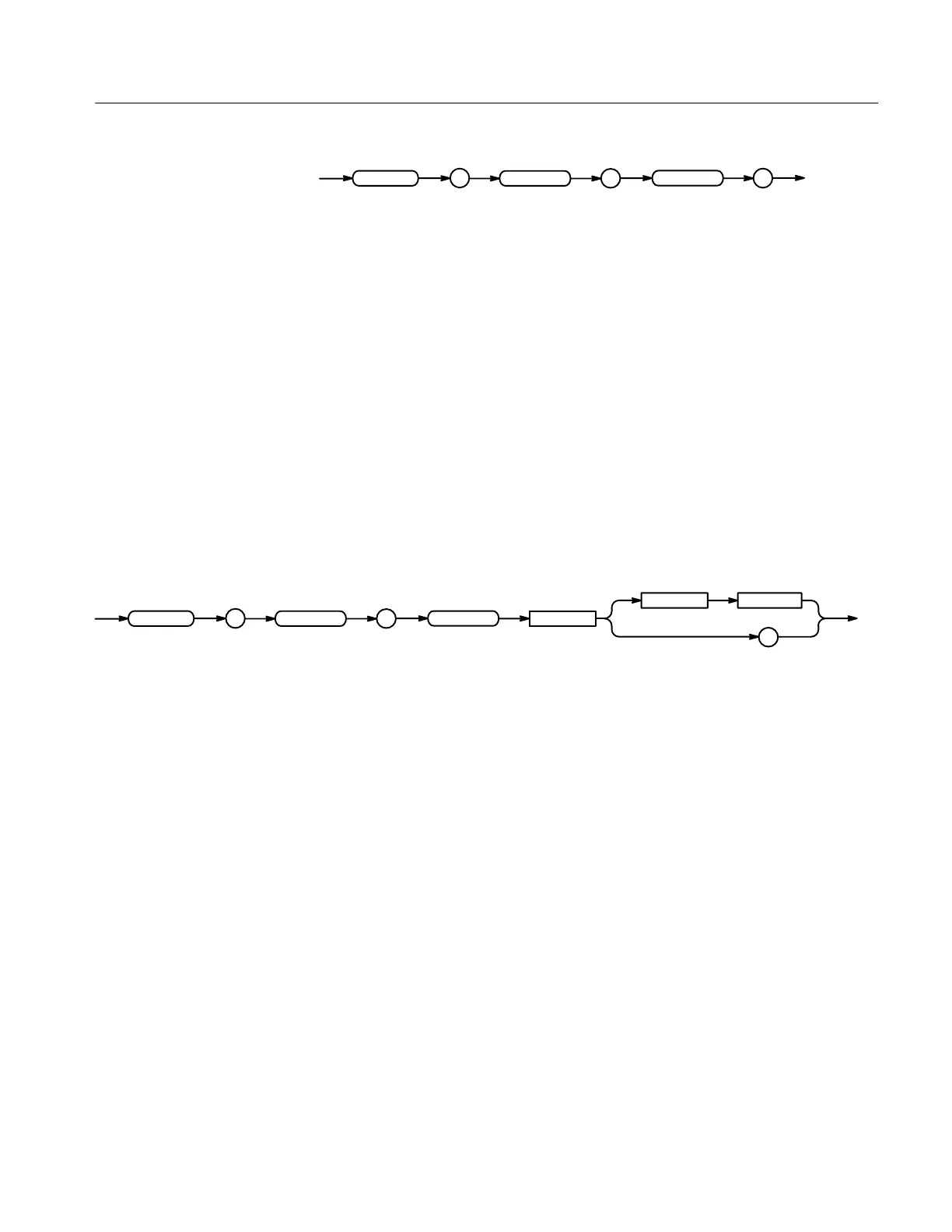

CURSor:HBArs:POSITION<x>

Positions a horizontal bar cursor.

Cursor

CURSor:HBArs:POSITION<x> <NR3>

CURSor:HBArs:POSITION<x>?

CURSor

HBArs :

POSITION

<x>

<NR3> specifies the cursor position relative to ground, in volts.

CURSOR:HBARS:POSITION1 25.0E-3

positions one of the horizontal cursors at 25.0 mV.

CURSOR:HBARS:POSITION2?

might return -64.0E-3, indicating that one of the horizontal bar cursors is at

–64.0 mV.

CURSor:HBArs:POSITION<x>Pcnt

TDS 4XXA Only

Sets or queries the position of the horizontal bar cursors (x is either 1 or 2) in

units of % of vertical range.

Cursor

CURSor:HBArs:POSITION<x>Pcnt <NR3>

Returns

Examples

Group

Syntax

Arguments

Examples

Group

Syntax
