Command Descriptions
TDS Family Oscilloscope Programmer Manual
2–77
CURSOR:PAIRED:POSITION1 9.00E-6
specifies the first paired cursor is at 9 ms.
CURSOR:POSITION2?
might return 1.00E-6, indicating that the second paired cursor is at 1 ms.
CURSor:PAIred:POSITION<x>Pcnt
TDS 4XXA Only
Sets or queries the horizontal position of the paired cursors (x is either 1 or 2) in
units of % of record length.
Cursor
CURSor:PAIred:POSITION<x>Pcnt <NR3>
CURSor:PAIred:POSITION<x>Pcnt?

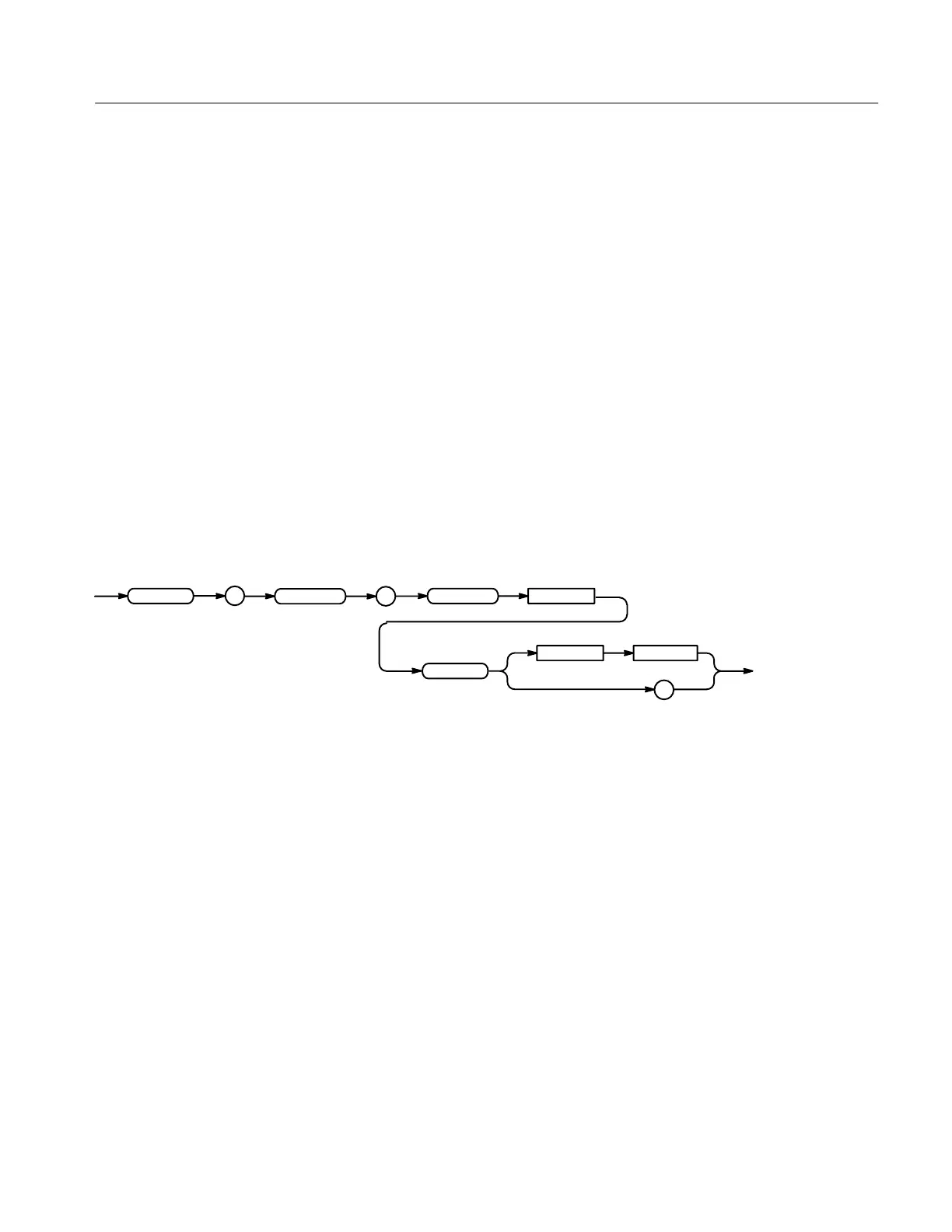

CURSor
:
PAIred :
POSITION
<x>
?
<Space> <NR3>
Pcnt
<NR3> has a range of 0 to 100 (%). It specifies the cursor position relative to the
record length of the selected waveform.
CURSOR:PAIRED:POSITION1PCNT?
might return 4.50 E+1, indicating cursor 1 is positioned at 45% of the record
length of the selected waveform.
CURSor:PAIred:SELect
Selects the active paired cursor. The active cursor appears as a solid vertical line.
The unselected cursor appears as a dashed vertical line. This command is
equivalent to pressing the SELECT button on the front panel when the Cursor
menu is displayed.
Cursor
Examples
Group
Syntax
Arguments
Examples
Group
