Acquiring and Displaying Waveforms

3–4

TDS 684A, TDS 744A, & TDS 784A User Manual

Probe Compensated Correctly

Probe Overcompensated

Probe Undercompensated

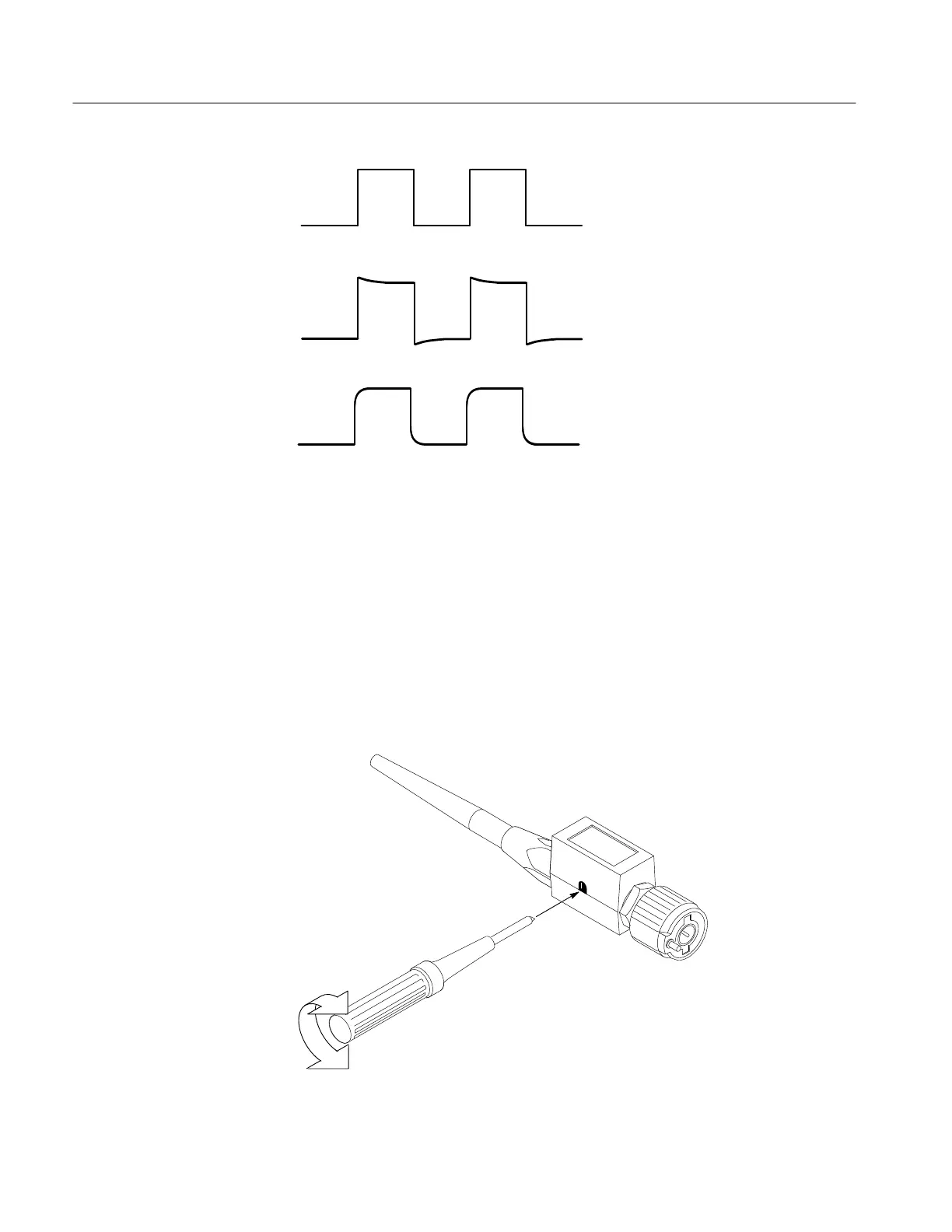

Figure 3–1: How Probe Compensation Affects Signals

4. If you need to change the input impedance, press Coupling (main). Then

toggle the side menu selection W to get the correct impedance.

5. TDS 700A models only: Press SHIFT ACQUIRE MENU ➞ Mode (main) ➞

Hi Res (side).

6. TDS 684A only: Press SHIFT ACQUIRE MENU ➞ Mode (main) ➞

Average (side). Use the keypad to set Averages to 5.

7. Adjust the probe until you see a square wave with a perfectly flat top on the

display. Figure 3–2 shows where the adjustment is located.

Figure 3–2: P6139A Probe Adjustment
