Performance Tests

TDS 500B, 600B and TDS 700A Service Manual

4–29

Align the active cursor

over the waveform.

Read the

measurement

results.

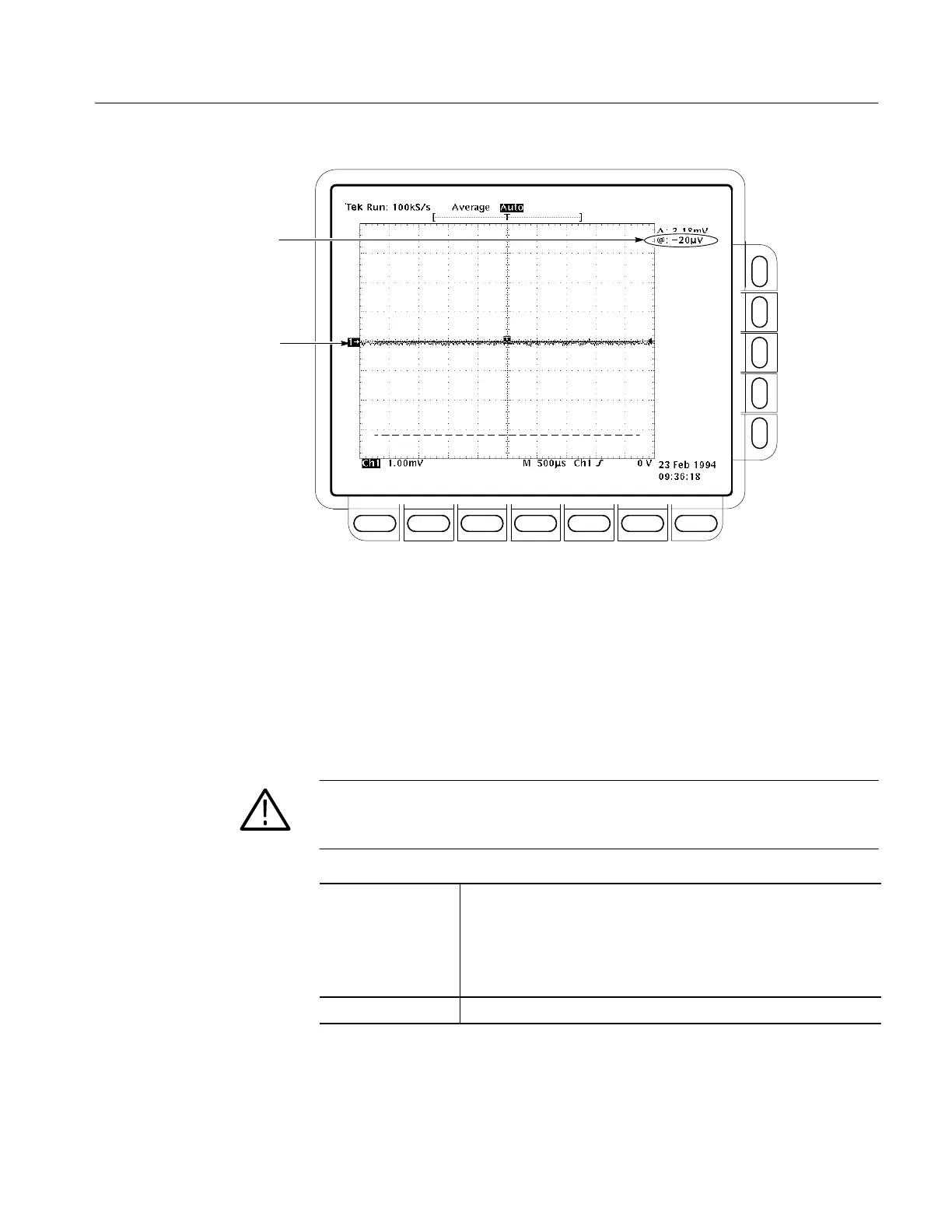

Figure 4–4: Measurement of DC Offset Accuracy at Zero Setting

g. Test all channels: Repeat substeps a through f for all input channels.

3. Disconnect the hookup: No hookup was required.

WARNING. The generator is capable of outputting dangerous voltages. Be sure to

set the DC calibration generator to 0 volts before connecting, disconnecting,

and/or moving the test hookup during the performance of this procedure.

Equipment

Required

Two dual-banana connectors (Item 6)

One BNC T connector (Item 7)

One DC calibration generator (Item 9)

Two precision coaxial cables (Item 5)

Prerequisites The oscilloscope must meet the prerequisites listed on page 4–15

Check DC Voltage

Measurement Accuracy
