Operating Interface Maps

2–6

TDS 500B, TDS 600B, & TDS 700A User Manual

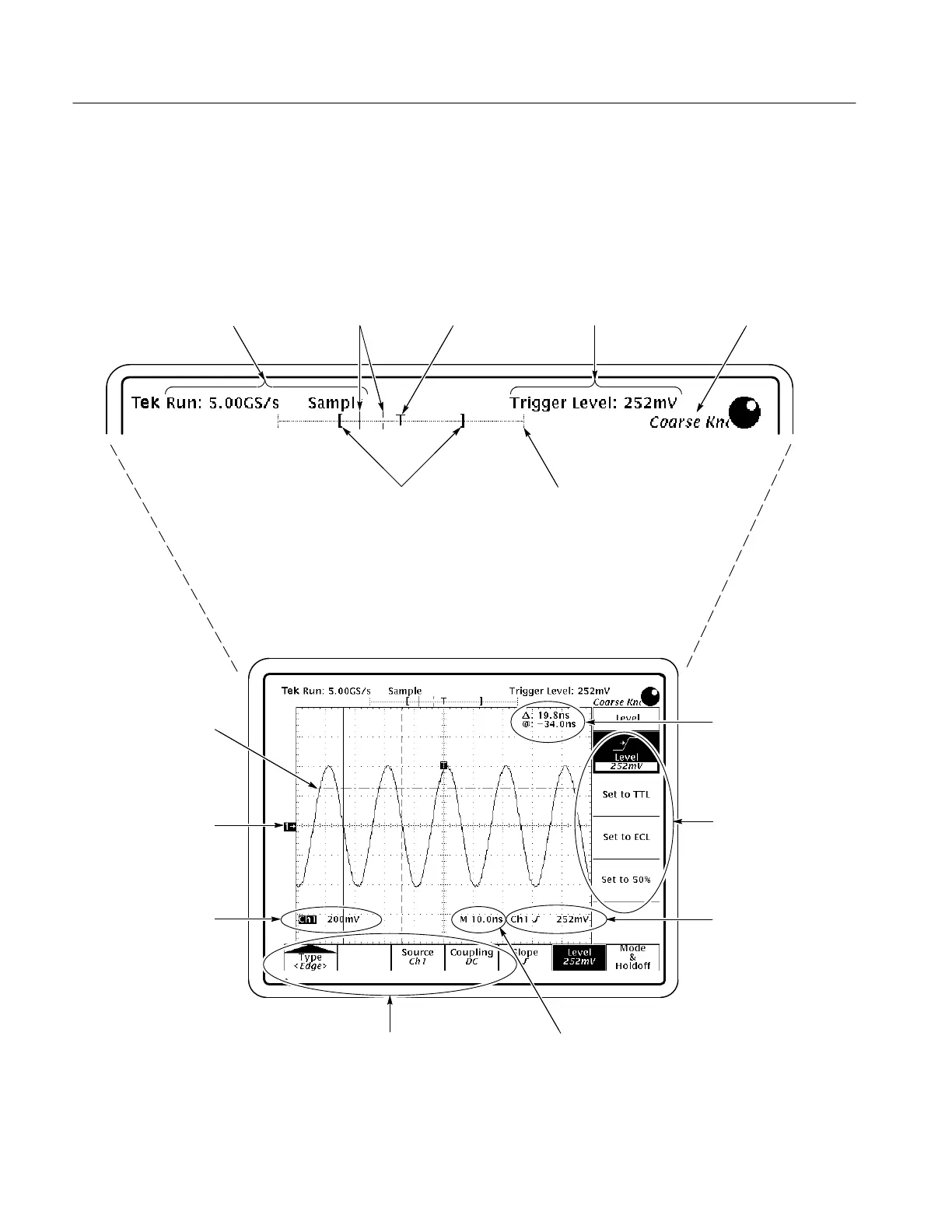

Display Map

The value entered with

the general purpose

knob

or keypad.

Channel level and

waveform source.

The main menu with

choices of major actions

The side menu

with choices of

specific actions.

Vertical scale,

page 3–11

Horizontal scale and time

base type, page 3–14

Trigger parameters,

page 3–57

Cursor measurements,

page 3–101

Trigger

position (T),

page 3–58

Shows what part of the waveform

record is displayed, page 3–14

Indicates position of

vertical bar cursors in the

waveform record,

page 3–104

The waveform

record icon

Trigger level on

waveform (may be an

arrow at right side of

screen instead of a bar).

When present, the general

purpose knob makes coarse

adjustments; when absent,

fine adjustments.

The

acquisition

status,

page 3–24
