Acquiring and Displaying Waveforms
TDS 500C, TDS 600B, & TDS 700C User Manual
3–45

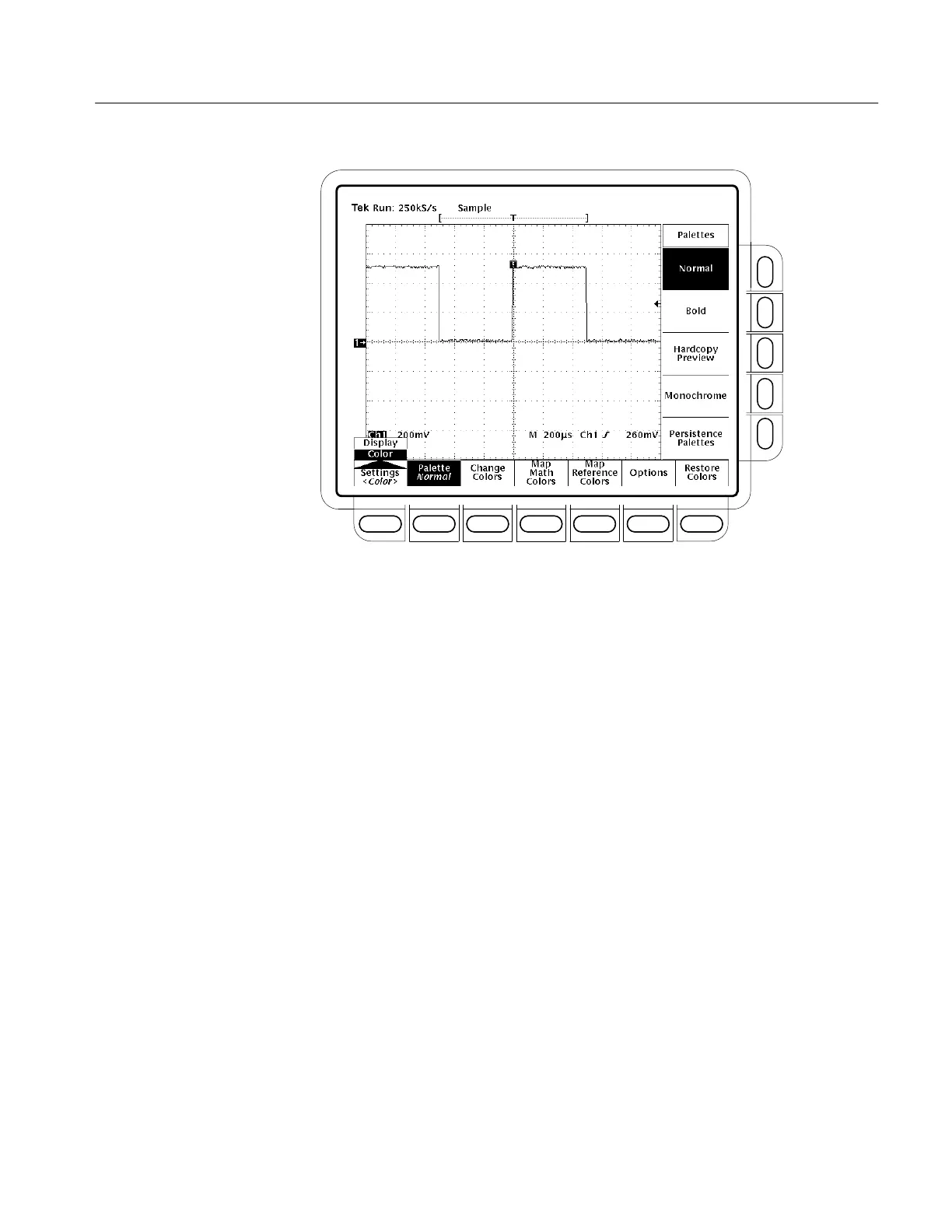

Figure 3–21: Display Menu — Setting
To choose a palette of 13 colors from a menu of preset palettes:
1. Choose the starting palette by selecting Palette from the main menu.
2. Select one of the available palettes in the side menu. Choose from Normal,
Bold, Hardcopy Preview or Monochrome.
3. If you are using a persistence display and want to vary the color of each
point depending on its persistence, choose Persistence Palettes. Then
choose Temperature, Spectral, or Gray Scale from the resulting side menu.
Choose View Palette to preview your selection on the display. Press
Persistence Palette to quit preview mode. Press Clear Menu to return to the
Palette menu.
Choose a Palette
To Next Page
