Acquiring and Displaying Waveforms
3–48
TDS 500C, TDS 600B, & TDS 700C User Manual
2. Select one of the four reference waveforms by pressing Ref in the side menu.
3. To assign the selected reference waveform to a specific color, press
(repeatedly) Color and choose the value.
4. To make the selected reference waveform the same color as the waveform it
is based on, select Color Matches Contents.
To return to the factory defaults, select Reset to Factory Color.

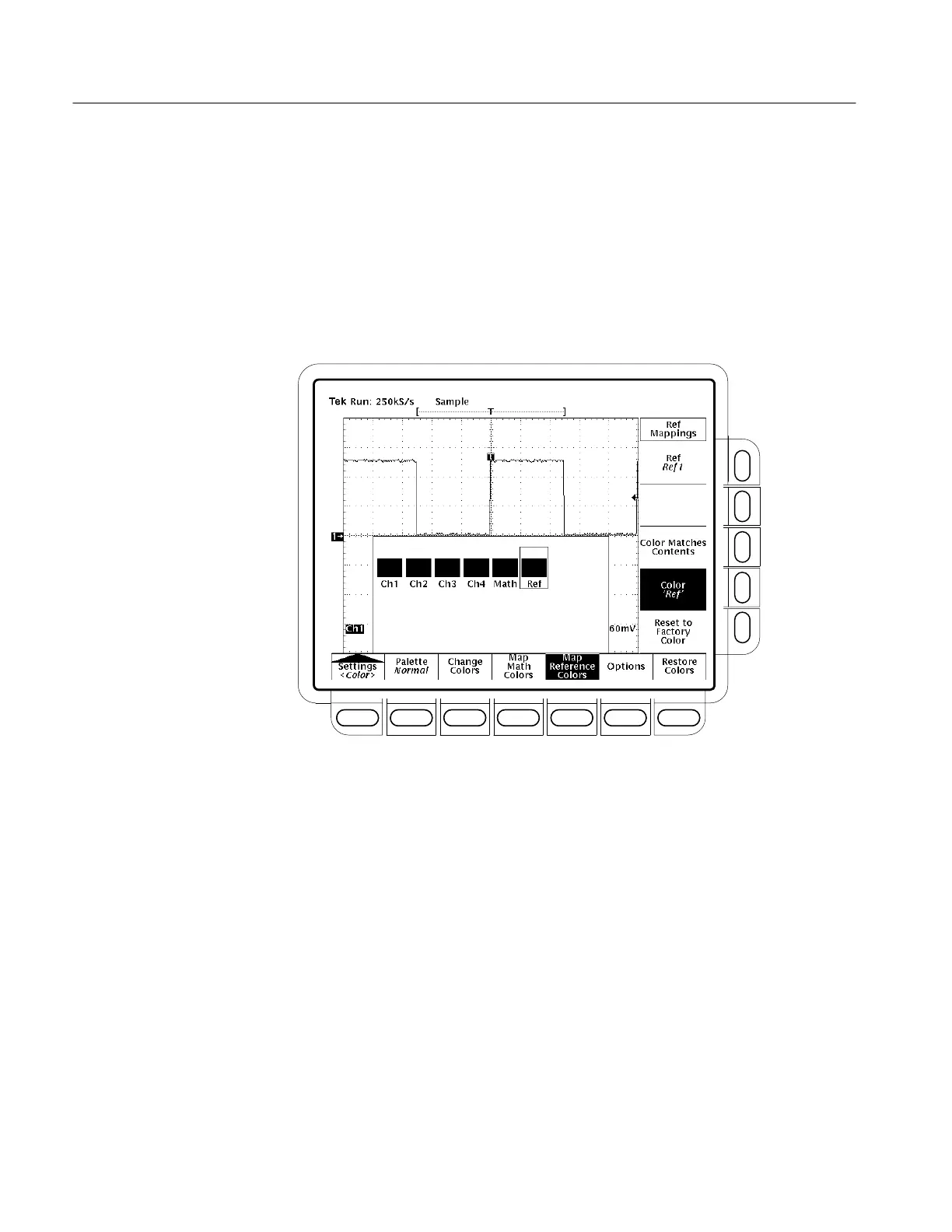

Figure 3–23: Display Menu — Map Reference Colors
To define what color to show where a waveform crosses another waveform:
1. Press the Options main menu item.
2. Toggle Collision Contrast to ON in the side menu to mark collision zones
with a special color.
To restore colors to their factory default settings:
1. Press the main menu Restore Colors item. (See Figure 3–24.)
Select Options
Restore Colors
To Next Page
