Tektronix TDS 500C User Manual

Triggering on Waveforms
TDS 500C, TDS 600B, & TDS 700C User Manual
3–73
Main Time Base
Main Time Base Time/Div
Main Trigger
Source = Ch 1
Main Trigger
Slope = Rising Edge
Main Trigger
Level

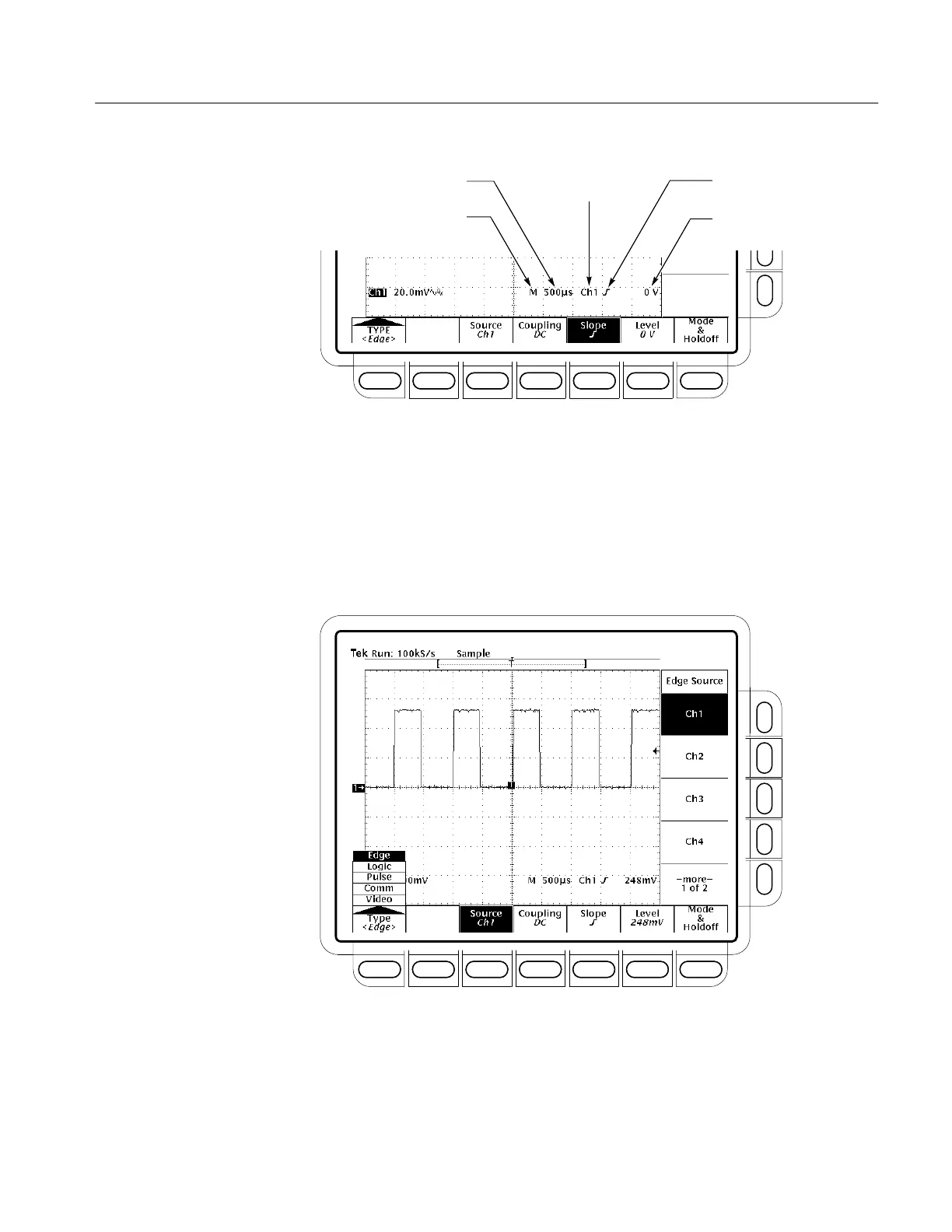

Figure 3–38: Edge Trigger Readouts
Use the edge trigger menu to select edge triggering and to perform the proce-
dures for source, coupling, slope, trigger level, mode, and holdoff that follow.
To bring up the Edge Trigger menu, press TRIGGER MENU ➞
Type (main) ➞ Edge (pop-up). (See Figure 3–39.)
Figure 3–39: Main Trigger Menu — Edge Type
To Select Edge Triggering
