Measuring Waveforms
3–124
TDS 500C, TDS 600B, & TDS 700C User Manual
To use Snapshot, obtain a stable display of the waveform to be measured
(pressing AUTOSET may help). Then do the following steps:
1. TDS 600B: Press MEASURE ➞ SNAPSHOT (main).
2. TDS 500C and TDS 700C: Press MEASURE ➞ Measure (pop-up) ➞
SNAPSHOT (main).
3. Press either SNAPSHOT (main) or AGAIN (side) to take another snapshot.
NOTE. The Snapshot display tells you the channel that the snapshot is being
made on.
4. Push Remove Measrmnt.
Snapshot Display

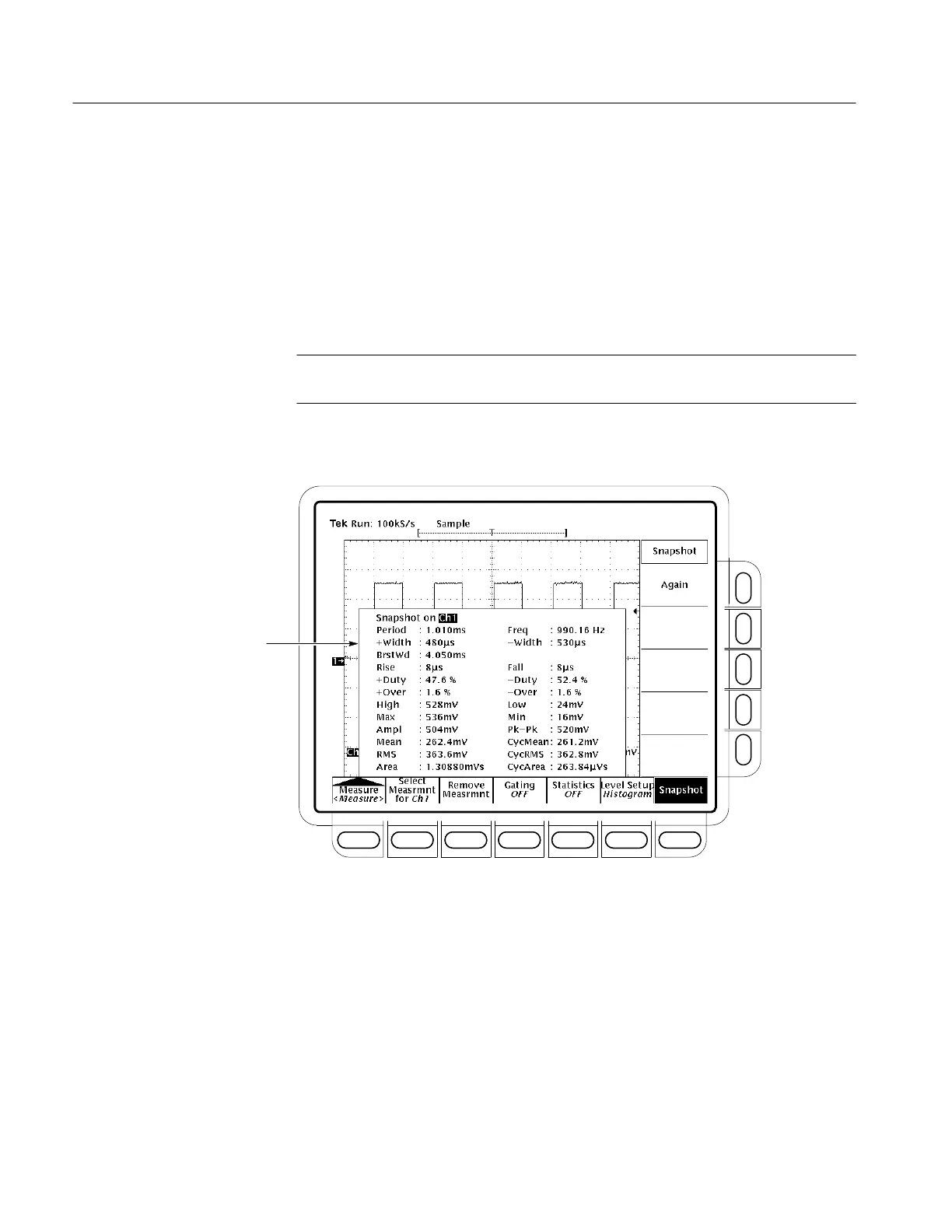

Figure 3–60: Snapshot Menu and Readout
