Saving Waveforms and Setups
3–152
TDS 500C, TDS 600B, & TDS 700C User Manual
To save the current setup of the oscilloscope:
1. Press SAVE/RECALL SETUP ➞ Save Current Setup (main).
STOP. Before doing step 2 that follows, note that if you choose a setup location
labeled user, you will overwrite the user setup previously stored there. You can store
setups in setup locations labeled factory without disturbing previously stored setups.
2. To store to a setup internally, choose one of the ten internal storage locations
from the side menu To Setup 1, To Setup 2, ... (see Figure 3–71). Now the
current setup is stored in that location.

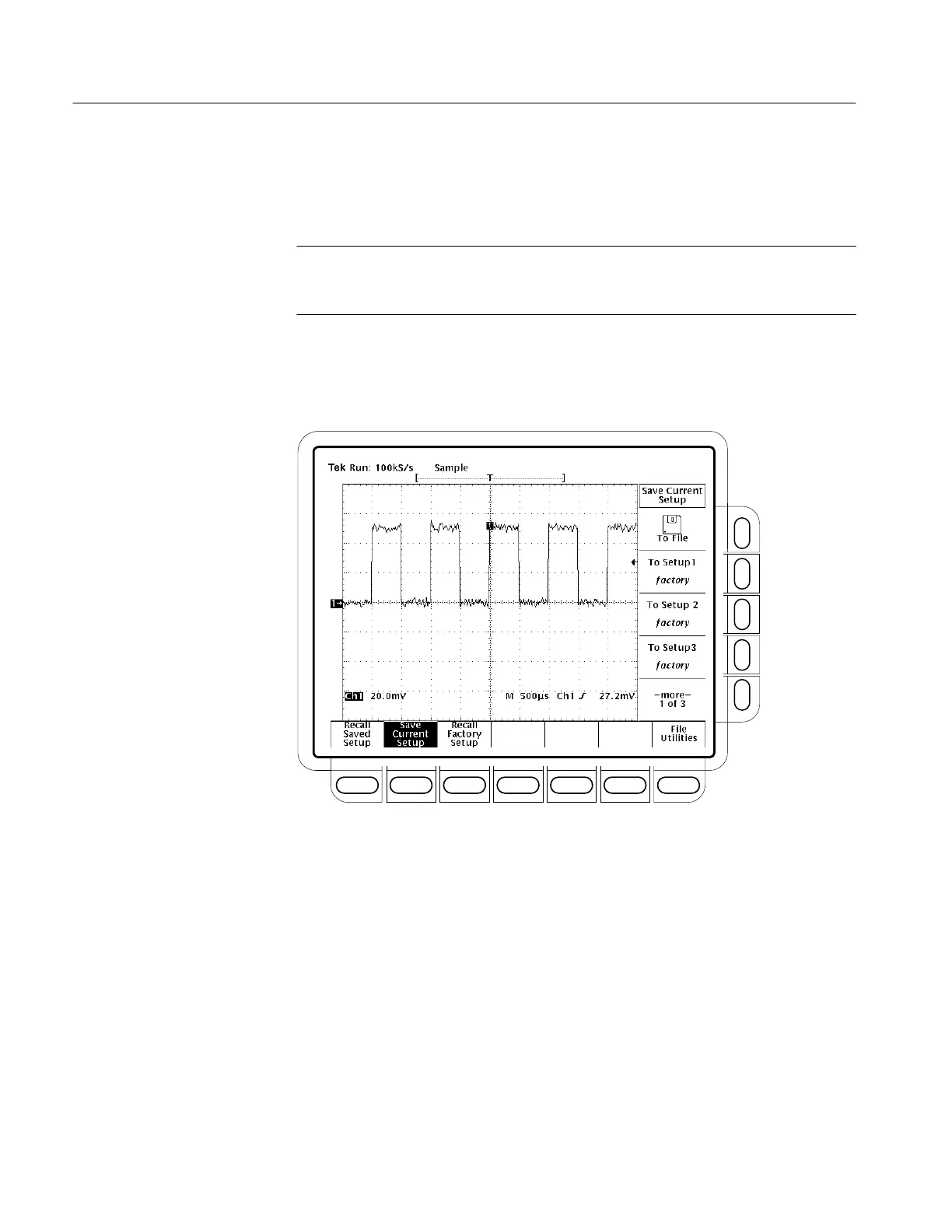

Figure 3–71: Save/Recall Setup Menu
3. To store a setup to disk, press To File (side). Then use the general purpose
knob to select the exact file from the resulting scrollbar list. Finally, press
Save To Selected File (side) to complete the operation.
To Save a Setup
To Next Page
