Saving Waveforms and Setups
TDS 500C, TDS 600B, & TDS 700C User Manual
3–161
3. Press File Utilities in the main menu to bring up the File Utilities side menu.
(See Figure 3–74.)
NOTE. The amount of free space on the active disk is shown in the upper right
corner of the display. The oscilloscope shows the amount in Kbytes (or in Mbytes
if the free space is 1 Mbyte or more). To convert the amount to bytes, you simply
multiply the Kbytes amount times 1024. Thus, the 690 Kbytes shown in Figure
3–74 = 690 Kbytes x 1024 bytes/Kbyte = 706,560 bytes.

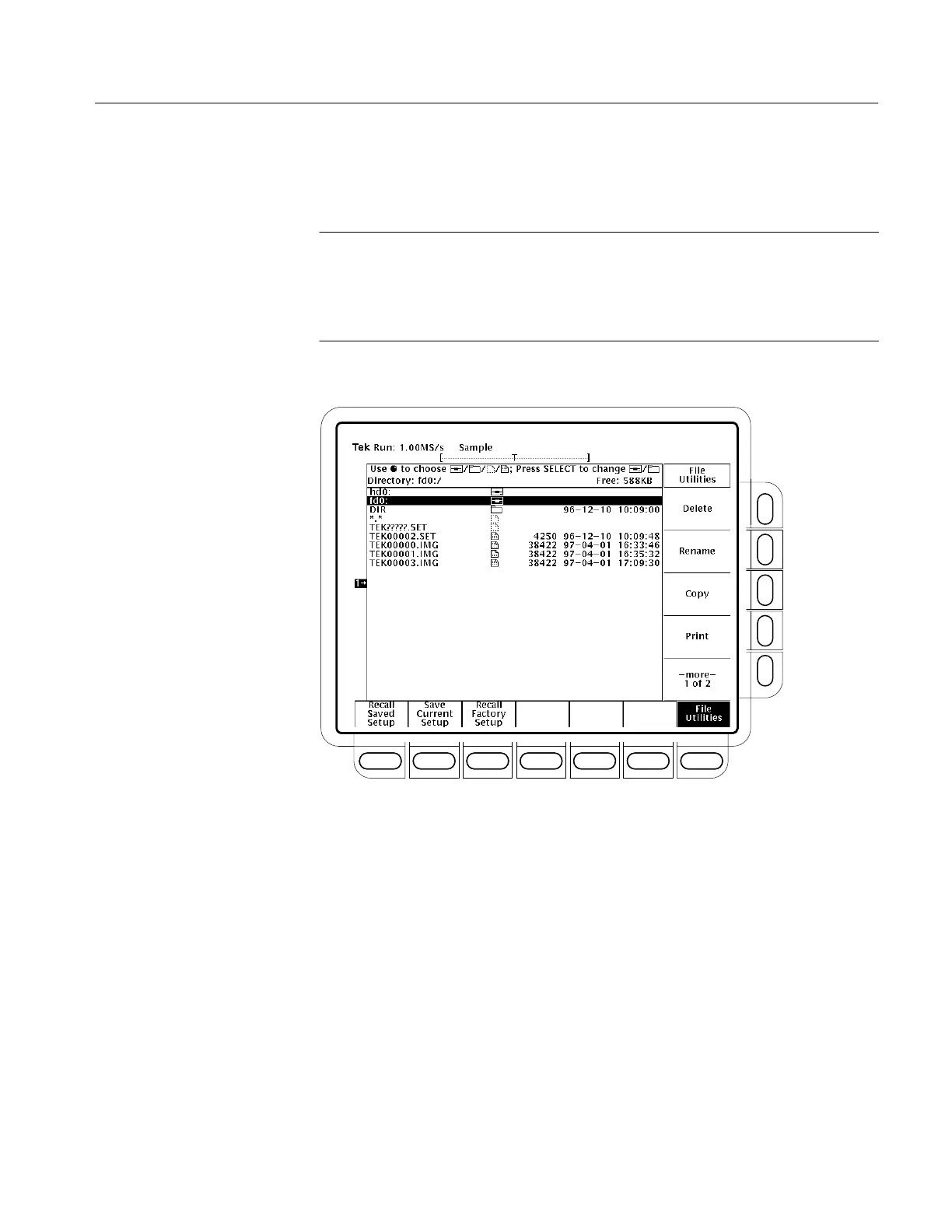

Figure 3–74: File Utilities
