Saving Waveforms and Setups
3–166
TDS 500C, TDS 600B, & TDS 700C User Manual
Some formats, particularly Interleaf, EPS, TIFF, PCX, BMP, and HPGL, are
compatible with various desktop publishing packages. Such compatibility means
you can paste files created from the oscilloscope directly into a document on any
of those desktop publishing systems.
EPS Mono and Color formats are compatible with Tektronix Phaser Color
Printers, HPGL is compatible with the Tektronix HC100 Plotter, and Epson is
compatible with the Tektronix HC200 Printer.
Before you make a hardcopy, you need to set up communications and hardcopy
parameters. Do the following procedures to set up for making hardcopies.
Set Communications Parameters. To set up the communication parameters for a
printer attached directly to the oscilloscope GPIB, RS-232 or Centronics port:
Press SHIFT ➞ UTILITY ➞ System (main) ➞ I/O (pop-up) ➞ Confi-
gure (main) ➞ Hardcopy (Talk Only) (side). (See Figure 3–76.)

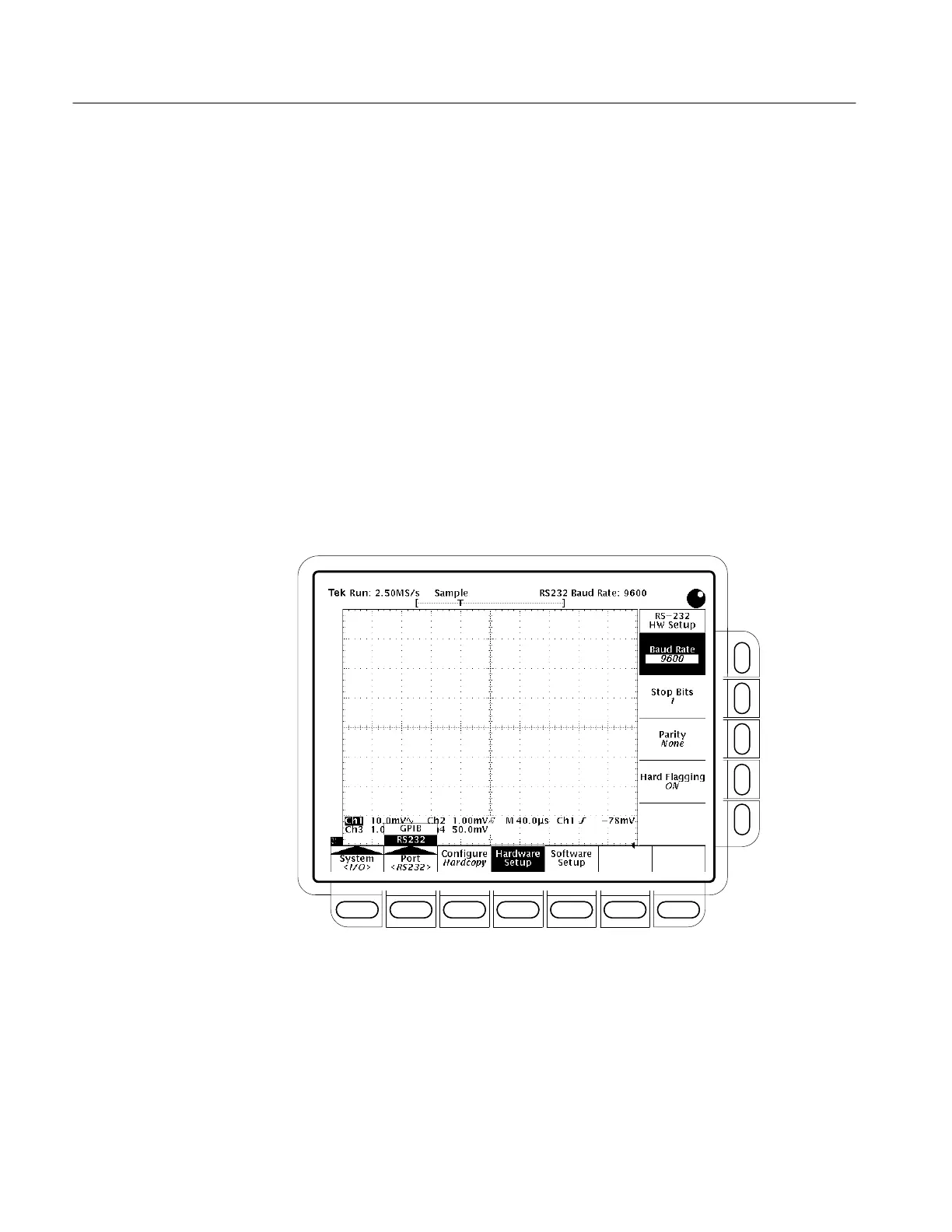

Figure 3–76: Utility Menu — System I/O
To Set Up for Making
Hardcopies
