Saving Waveforms and Setups
TDS 500C, TDS 600B, & TDS 700C User Manual
3–175
Turn on at least two-thirds of the device loads present when you use your
network.
Include only one cable path between devices on your network. (See
Figure 3–81.) Do not create loop configurations.
GPIB Device
GPIB Device
GPIB Device
GPIB Device
GPIB Device
GPIB Device
GPIB Device

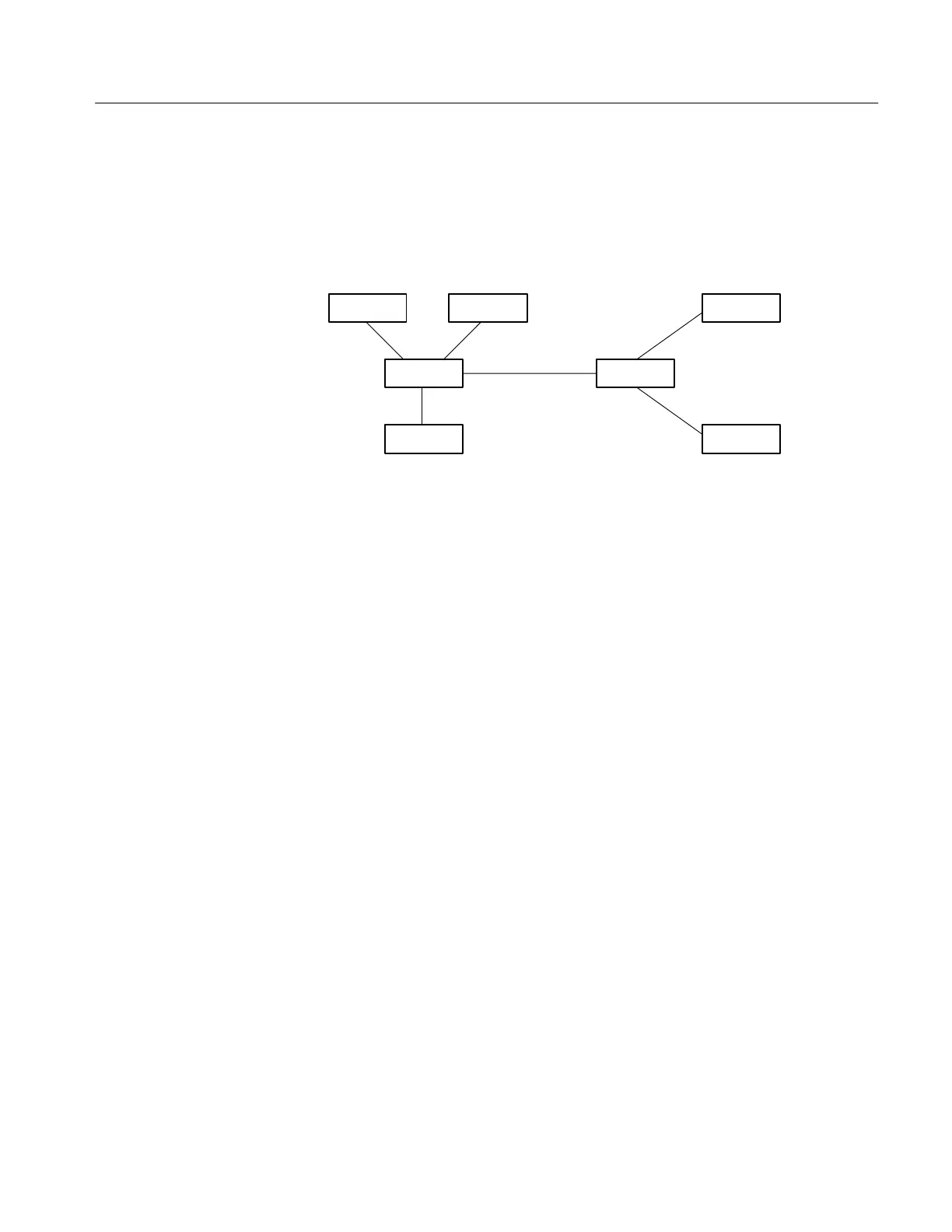

Figure 3–81: Typical GPIB Network Configuration
Obtain the Proper Interconnect Cabling. To connect the oscilloscope to a GPIB
network, obtain at least one GPIB cable. Connecting two GPIB devices requires
an IEEE Std 488.1-1987 GPIB cable (available from Tektronix, part number
012-0991-00).
The standard GPIB cable connects to a 24-pin GPIB connector located on the
rear panel of the oscilloscope. The connector has a D-type shell and conforms to
IEEE Std 488.1-1987. You can stack GPIB connectors on top of each other. (See
Figure 3–82.)
