Operating Interface Maps
2–6
TDS 500C, TDS 600B, & TDS 700C User Manual

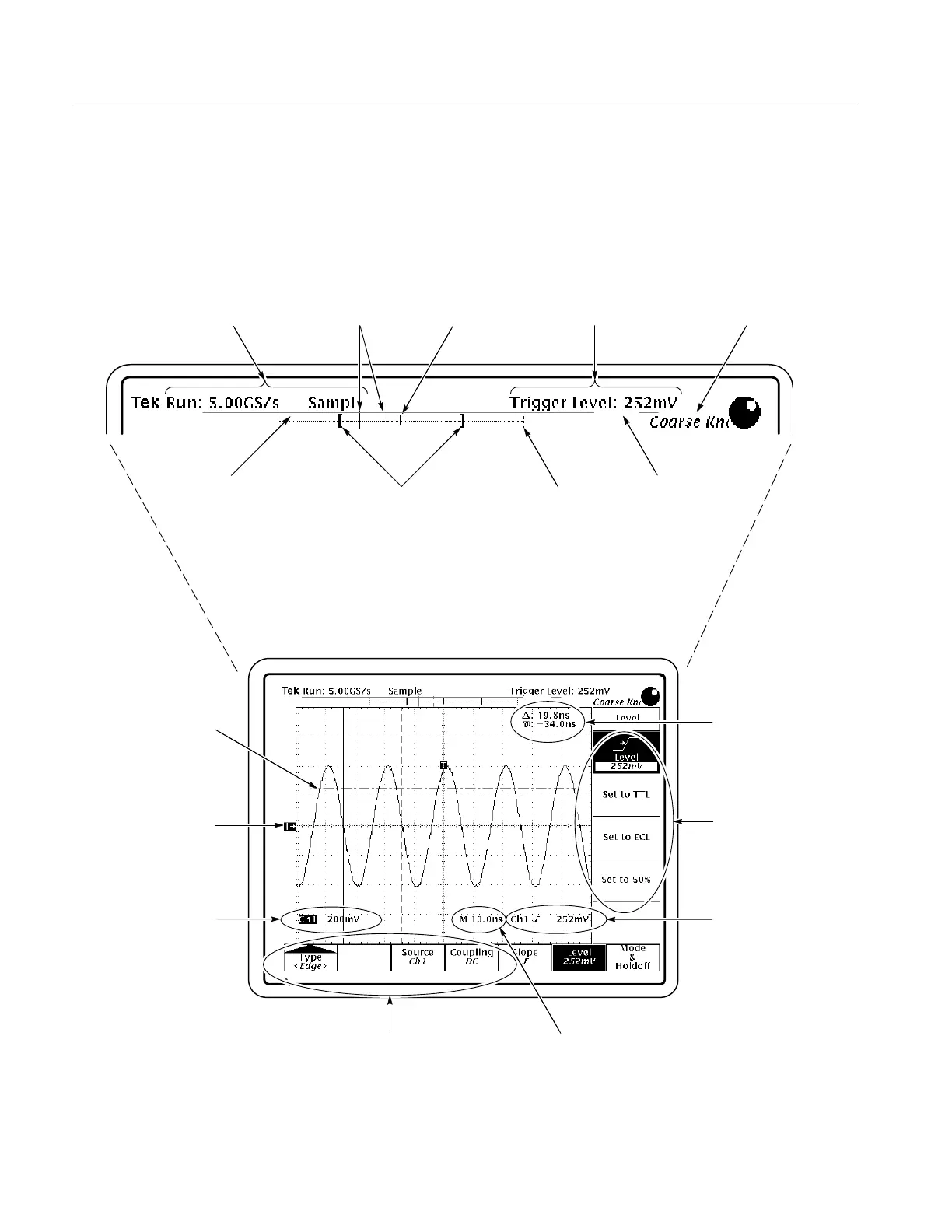

Display Map
The value entered with
the general purpose
knob
or keypad.
Channel level and
waveform source.
The main menu with
choices of major actions
The side menu
with choices of
specific actions.
Vertical scale,
page 3–15
Horizontal scale and time
base type, page 3–19
Trigger parameters,
page 3–71
Cursor measurements,
page 3–126
Trigger
position (T),
page 3–71
Shows what part of the waveform
record is displayed, page 3–18
Indicates position of
vertical bar cursors in the
waveform record,
page 3–130
The waveform
record icon
Trigger level on
waveform (may be an
arrow at right side of
screen instead of a bar).
When present, the general
purpose knob makes coarse
adjustments; when absent,
fine adjustments.
The
acquisition
status,
page 3–33
Shows what part of
the acquisition
record is in the
waveform record,
page 3–24
The acquisition record icon
