Command Descriptions

TDS Family Oscilloscope Programmer Manual

2–155

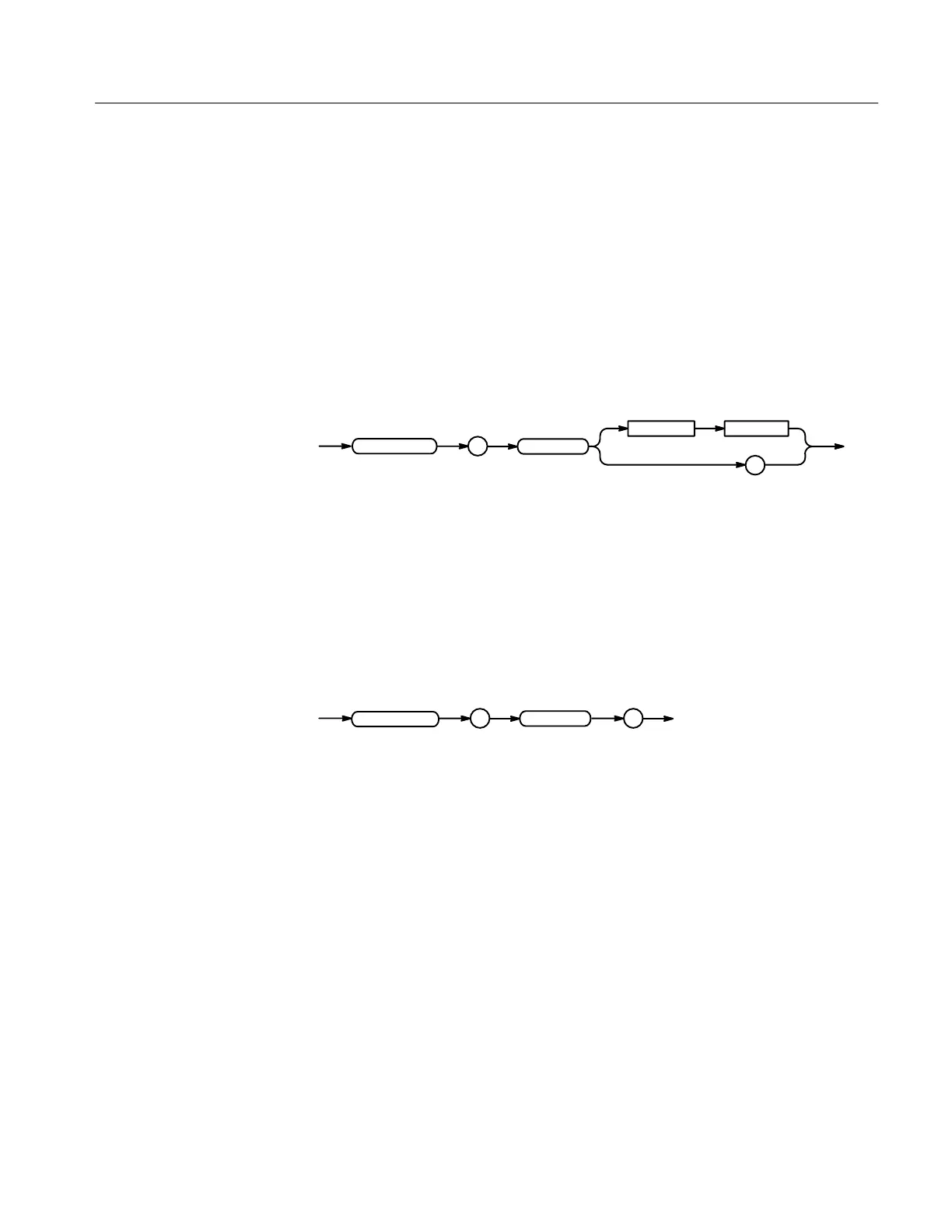

HORizontal:SECdiv

Sets the time per division for the main time base and is identical to the HORi-

zontal:MAIn:SCAle command. It is included here for compatibility purposes.

Horizontal

HORizontal:SECdiv <NR3>

HORizontal:SECdiv?

SECdiv

HORizontal

HORizontal:TRIGger? (Query Only)

Returns the horizontal trigger parameter.

Horizontal

HORizontal:TRIGger?

TRIGger

HORizontal

HORIZONTAL:TRIGGER?

might return :HORIZONTAL:TRIGGER:POSITION 50.

HORizontal:TRIGger:POSition

Sets or queries the position of the trigger. This is equivalent to setting Trigger

Position in the Horizontal menu.

Horizontal

HORizontal:TRIGger:POSition <NR1>

HORizontal:TRIGger:POSition?

Group

Syntax

Group

Syntax

Examples

Group

Syntax
