Command Descriptions
TDS Family Oscilloscope Programmer Manual
2–173

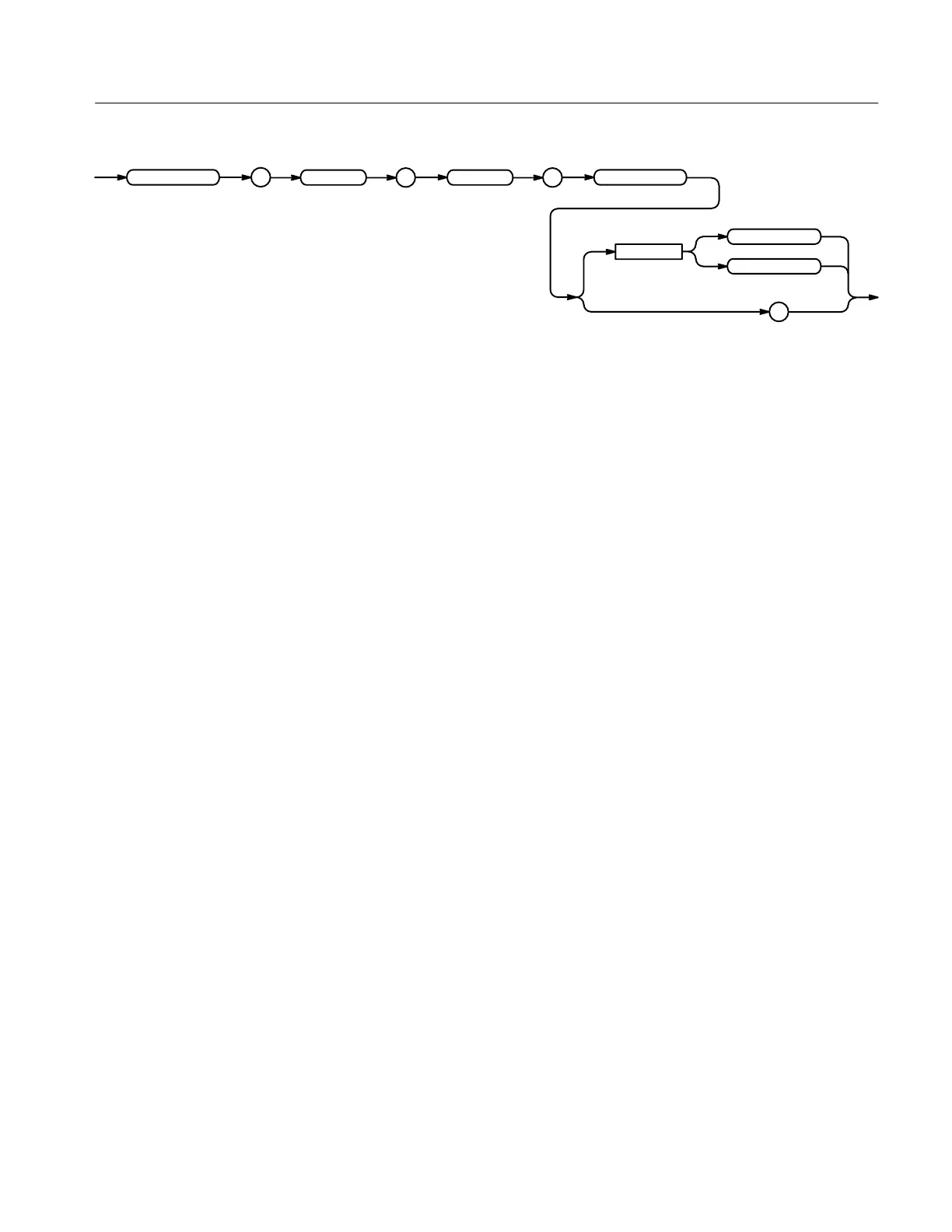

IMMed
:
:
MEASUrement
DELay
:
DIREction
<Space>
?
BACKWards
FORWards
BACKWards means that the search starts at the end of the waveform and looks for
the last rising or falling edge in the waveform. The slope of the edge is specified
by MEASUrement:IMMed:DELay:EDGE2.
FORWards means that the search starts at the beginning of the waveform and
looks for the first rising or falling edge in the waveform. The slope of the edge is
specified by MEASUrement:IMMed:DELay:EDGE2.
MEASUREMENT:IMMED:DELAY:DIRECTION FORWARDS
starts searching from the beginning of the waveform record.
MEASUREMENT:IMMED:DELAY:DIRECTION?
returns either BACKWARDS or FORWARDS.
MEASUrement:IMMed:DELay:EDGE1
Sets or queries the slope of the edge that is used for the delay “from” waveform
when taking an immediate delay measurement. The waveform is specified by
MEASUrement:IMMed:SOURCE1.
Measurement
MEASUrement:IMMed:SOURCE1
MEASUrement:IMMed:DELay:EDGE1 { FALL | RISe }
MEASUrement:IMMed:DELay:EDGE1?
Arguments
Examples
Group
Related Commands
Syntax
