Command Descriptions
2–82
TDS Family Oscilloscope Programmer Manual
Cursor

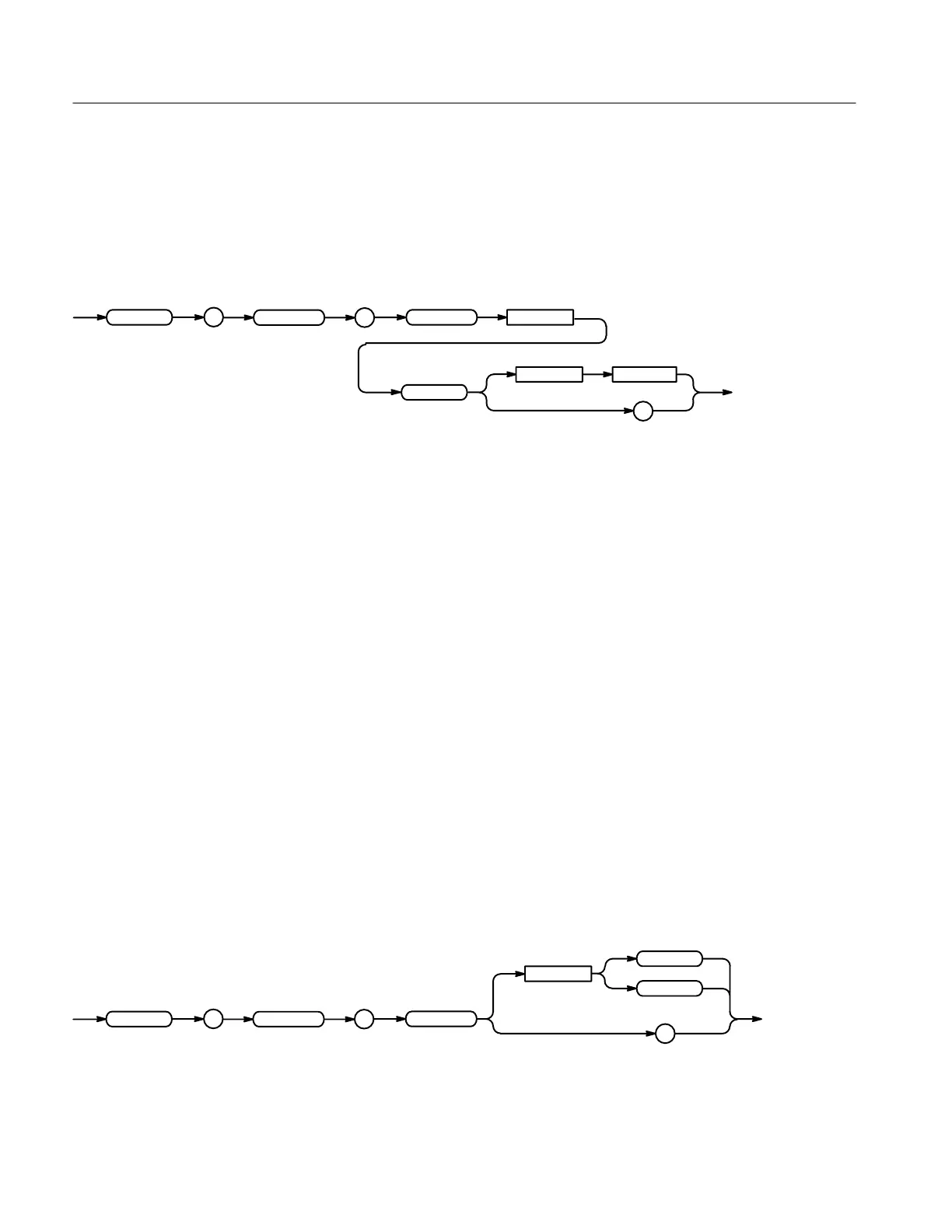

CURSor:VBArs:POSITION<x>Pcnt <NR3>
CURSor:VBArs:POSITION<x>Pcnt?
CURSor
:
VBArs :
POSITION
<x>
?
<Space> <NR3>
Pcnt
<NR3> has a range of 0 to 100 (%). It specifies the cursor position relative to the
record length of the selected waveform.
CURSOR:VBARS:POSITION1PCNT?
might return 4.50 E+1, indicating cursor 1 is positioned at 45% of the record
length of the selected waveform.
CURSor:VBArs:SELect
Selects which vertical bar cursor is active. The active cursor will be displayed as
a solid vertical line and can be moved using the front-panel general purpose knob
when the cursor menu is active. The unselected cursor will be displayed as a
dashed vertical line. This command is equivalent to pressing the SELECT
button on the front panel when the Cursor menu is displayed.
Cursor
CURSor:VBArs:SELect { CURSOR1 | CURSOR2 }
CURSor:VBArs:SELect?
CURSor
:
VBArs
:
SELect
?
<Space>
CURSOR2
CURSOR1
CURSOR1 specifies the first vertical bar cursor.
Group
Syntax
Arguments
Examples
Group
Syntax
Arguments
