Command Descriptions
TDS Family Oscilloscope Programmer Manual
2–81
CURSOR:VBARS:DELTa?
might return 1.064E+00, indicating that the time between the vertical bar cursors
is 1.064 seconds.
CURSor:VBArs:POSITION<x>
Positions a vertical bar cursor for both vertical bar and paired cursors. The
CURSor:VBArs:UNIts command specifies units.
The position can appear in units of seconds, 1/seconds (hertz), or video line
numbers (with option 05). On the TDS 4XXA, position can also appear in units
of clocks or 1/clocks.
Cursor
CURSor:VBArs:UNIts
CURSor:VBArs:POSITION<x> <NR3>
CURSor:VBArs:POSITION<x>?

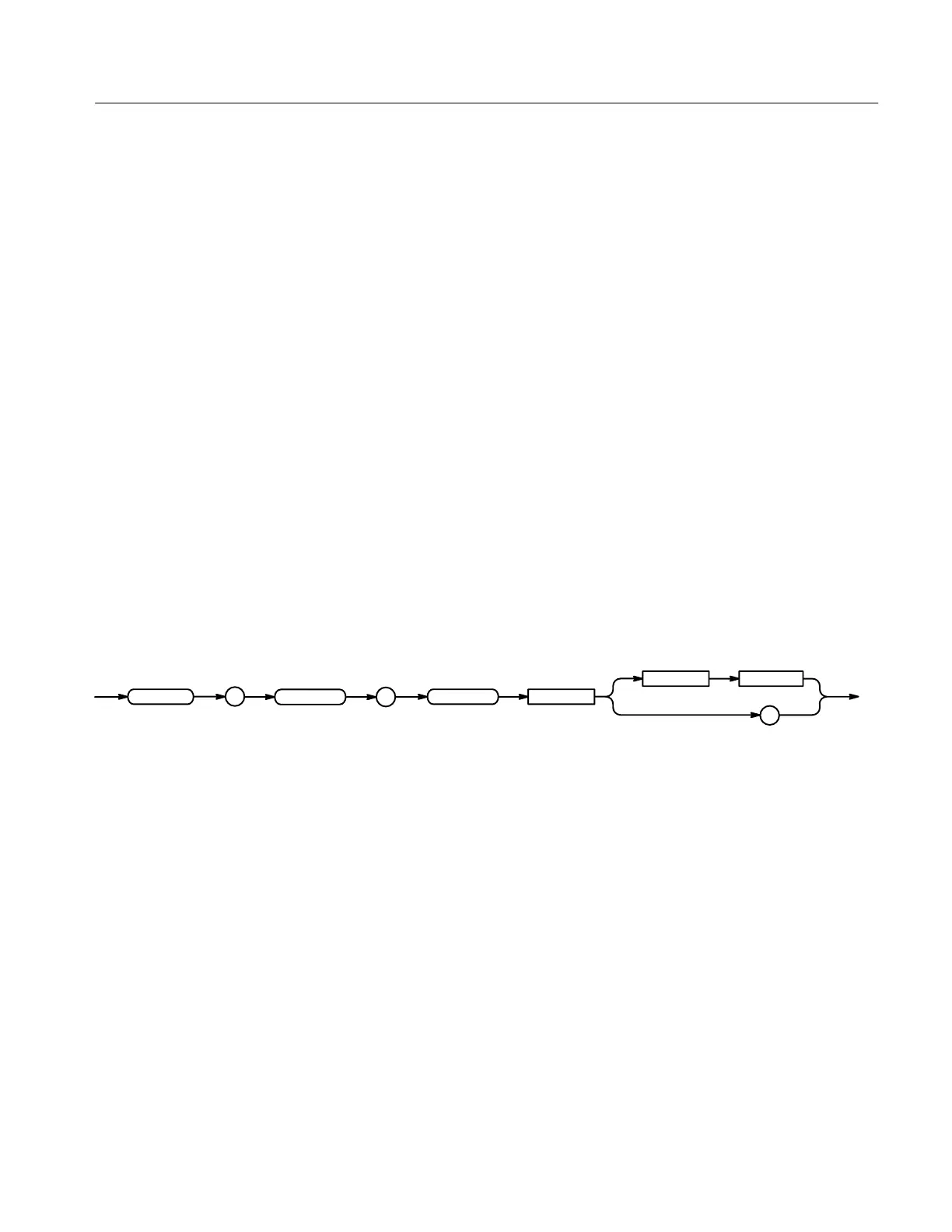

CURSor
:
VBArs :
POSITION
<x>
?
<Space> <NR3>
<NR3> specifies the cursor position in the units specified by the CUR-
Sor:VBArs:UNIts command. The position is relative to the trigger position.
CURSOR:VBARS:POSITION2 9.00E-6
positions one of the vertical bar cursors at 9 ms.
CURSOR:VBARS:POSITION1?
might return 1.00E-6, indicating a vertical bar cursors is at 1 ms.
CURSor:VBArs:POSITION<x>Pcnt
TDS 4XXA Only
Sets or queries the position of the vertical bar cursors (x is either 1 or 2) in units
of % of record length.
Examples
Group
Related Commands
Syntax
Arguments
Examples
