Command Descriptions
TDS Family Oscilloscope Programmer Manual
2–149
The digitizing oscilloscope in FastFrame mode is ready to accept a continuous
burst of triggers 400 ms after the controller sends the acquire:state run
command.
Horizontal

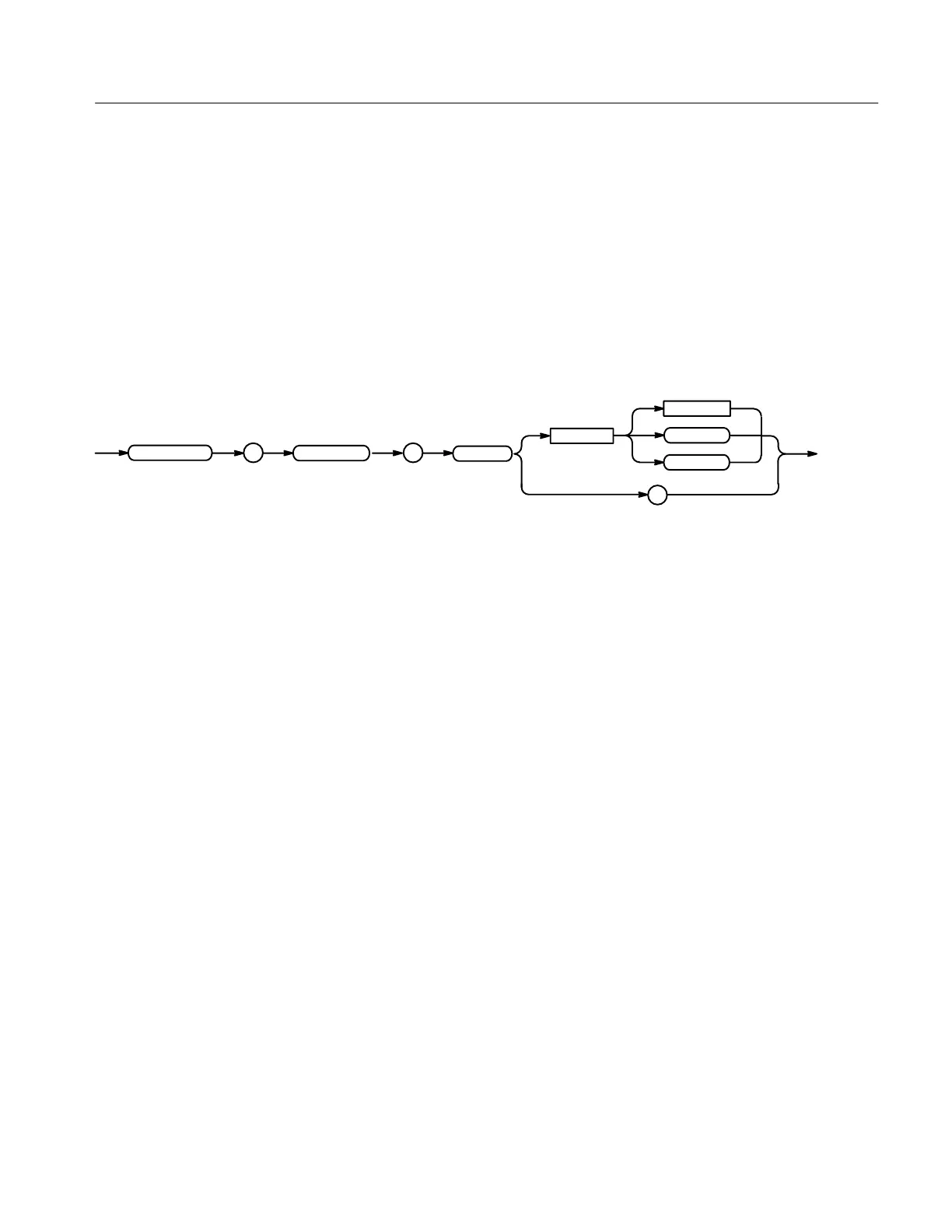

HORizontal:FASTframe:STATE { <NR1> | OFF | ON }
HORizontal:FASTframe:STATE?
::
FASTframe
HORizontal
STATE
?
<Space>
<NR1>
ON
OFF
<NR1> indicates OFF if it’s a 0 or ON if it’s a 1 (or any other nonzero value).
ON means turn on FastFrame.
OFF means turn off FastFrame.
The query form only returns 0 or 1.
HORIZONTAL:FASTFRAME:STATE ON
turns on FastFrame.
HORizontal:FITtoscreen
Setup horizontal waveform compress operation. This command is equivalent to
setting Record Length in the Horizontal menu and the Fit to screen menu item
in the side menu. Waveform compress lets you fit a captured waveform to the
visible screen. It provides the same functionality as if you were in zoom mode
and changed the time per division until the waveform fit the screen.
Horizontal
HORizontal:FITtoscreen { <NR1> | OFF | ON }
HORizontal:FITtoscreen?
Group
Syntax
Arguments
Examples
Group
Syntax
