Command Descriptions
2–184
TDS Family Oscilloscope Programmer Manual
MEASUrement:MEAS<x>:SOURCE2
Sets or queries the source to measure “to” when taking a delay measurement or
phase measurement. This is equivalent to setting the source in the Delay from
Selected Wfm side menu or the Phase from Selected Wfm side menu.
Measurement
   


 






 is an input channel.
 is a math waveform.
 is a reference waveform.
 
sets channel 1 as the delay “to” source when making delay measurements.

might return .
MEASUrement:MEAS<x>:STATE
Controls the measurement system. The source specified by MEASUre-
ment:MEAS<x>:SOURCE1 must be selected for the measurement to be
displayed. The source can be selected using the SELect:CH<x> command.
Measurement
Group

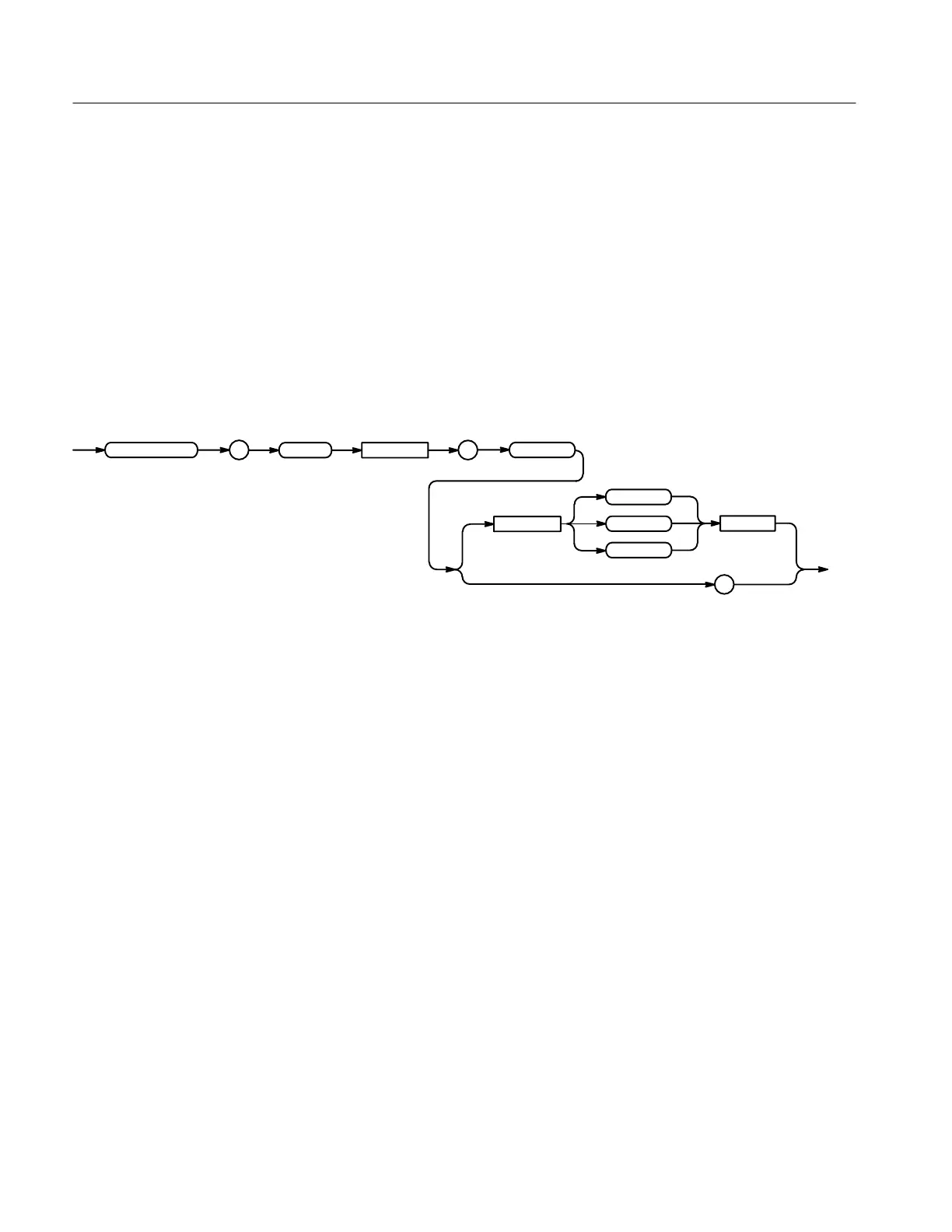

Syntax
Arguments
Examples
