MEASUrement :
REFLevel
?
MEASUrement:REFLevel:ABSolute:HIGH
Sets or queries the high reference level, and is the 100% reference level when
MEASUrement:REFLevel:METHod is set to ABSolute. This command is
equivalent to setting the Reference Levels in the Measure menu.
Measurement

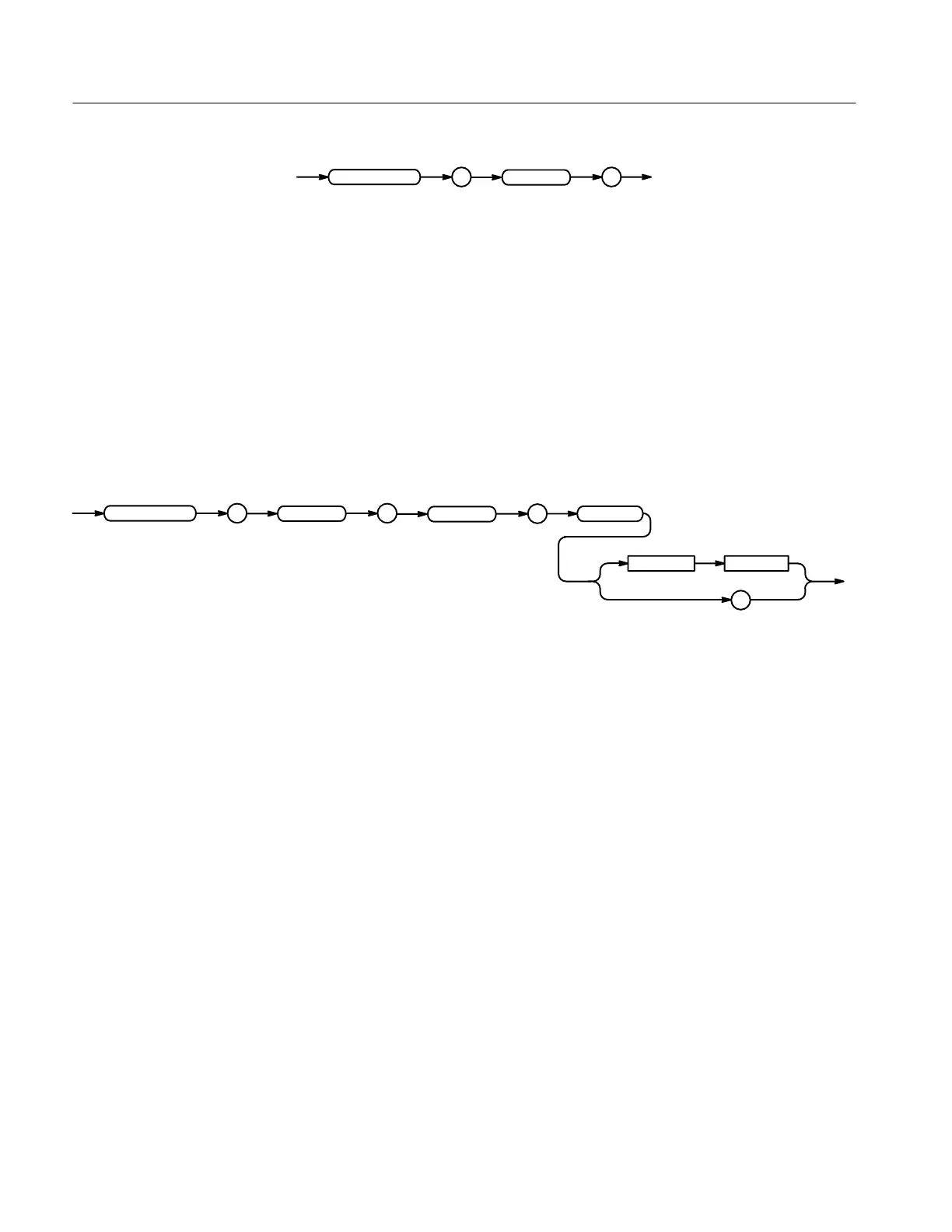

MEASUrement:REFLevel:ABSolute:HIGH <NR3>
MEASUrement:REFLevel:ABSolute:HIGH?
HIGH
?
<Space> <NR3>
MEASUrement
:
REFLevel
:
ABSolute
:
<NR3> is the high reference level, in volts. The default is 0.0 V.
MEASUREMENT:REFLEVEL:ABSOLUTE:HIGH 1.71
sets the high reference level to 1.71 V.
MEASUrement:REFLevel:ABSolute:LOW
Sets or queries the low reference level, and is the 0% reference level when
MEASUrement:REFLevel:METHod is set to ABSolute. This command is
equivalent to setting the Reference Levels in the Measure menu.
Measurement
MEASUrement:REFLevel:ABSolute:LOW <NR3>
MEASUrement:REFLevel:ABSolute:LOW?
Group
Syntax
Arguments
Examples
Group
Syntax
