Adjustment Procedures

TDS 500B, 600B and TDS 700A Service Manual

5–9

d. Follow the instructions as prompted on your computer screen. This will

include the actions listed in step 5 shown below.

5. Enable the adjustment constants to be written –when prompted on your

computer screen in step 4 above:

a. Locate the two small access holes on the right side of the oscilloscope

cabinet near the front.

b. Insert the adjustment tool (Item 3) in the hole nearest the front of the

oscilloscope about 1/2 inch to engage the rocker switch.

c. Push to rock the switch to its unprotected (enabled) position.

See Figure 5–1.

Unprotected

Protected

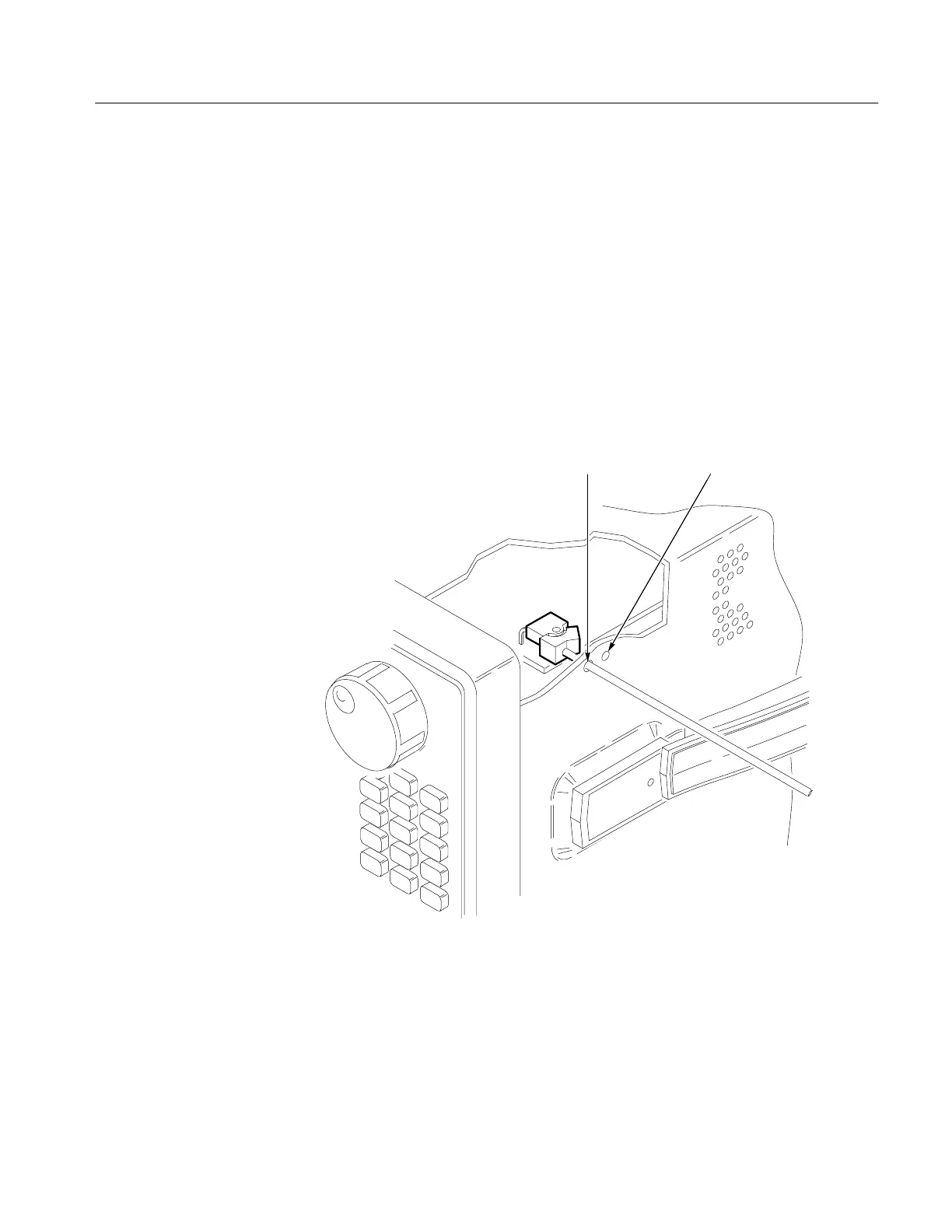

Figure 5–1: Accessing the Protection Switch

6. When adjustment has been completed:
