Tektronix TDS 684A Service Manual

Adjustment Procedures
5–12
TDS 500B, 600B and TDS 700A Service Manual

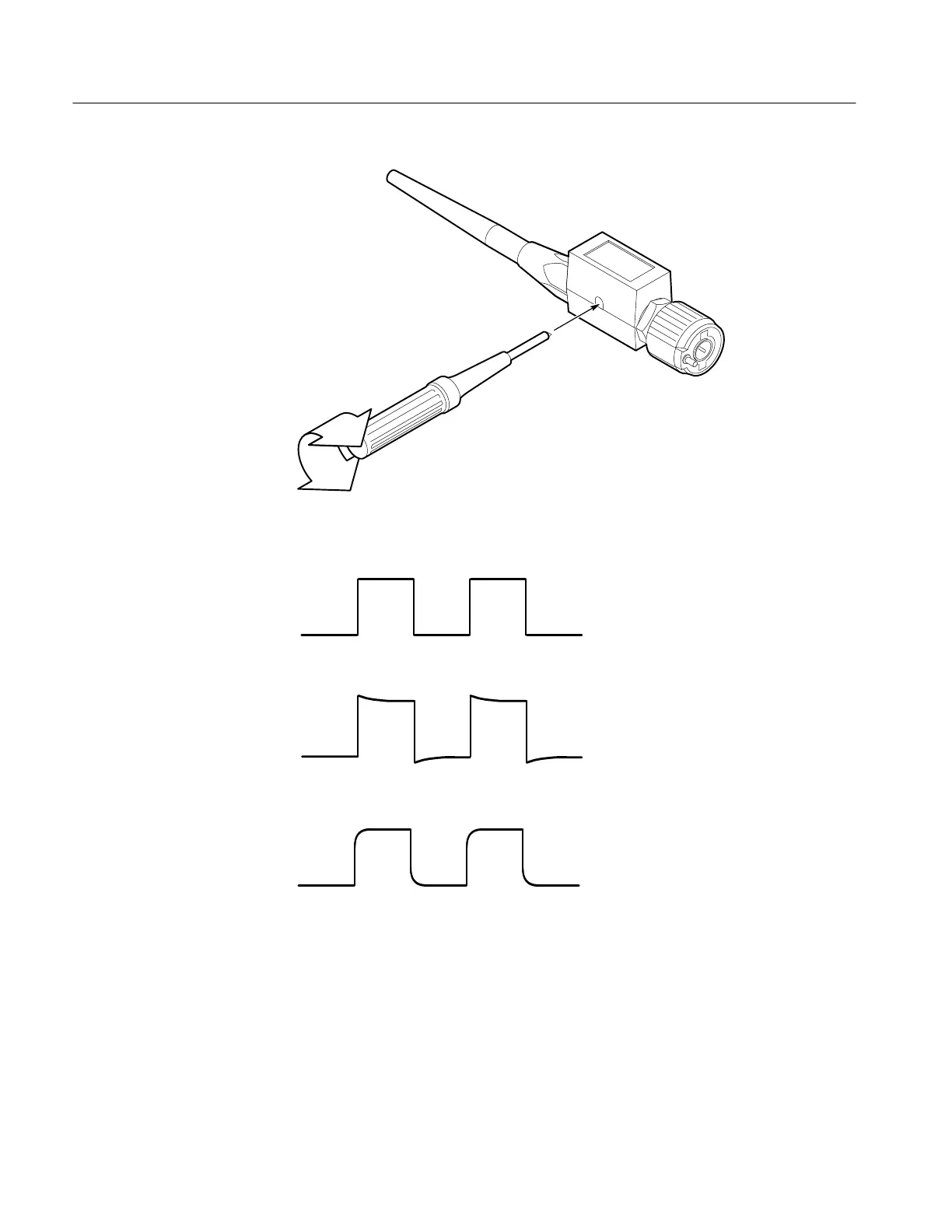

Figure 5–3: Performing Probe Compensation
Probe compensated correctly
Probe overcompensated
Probe undercompensated
Figure 5–4: Proper and Improper Probe Compensation
3. Disconnect the hookup: Disconnect the probe from the probe compensator
terminals; leave probe installed on CH 1 and leave the oscilloscope control
setup as is for doing the next part of probe adjustment.

Tektronix TDS 684A Specifications

General

Brand	Tektronix
Model	TDS 684A
Category	Test Equipment
Language	English
