Operating Instructions

2–10

TDS 500B, 600B and TDS 700A Service Manual

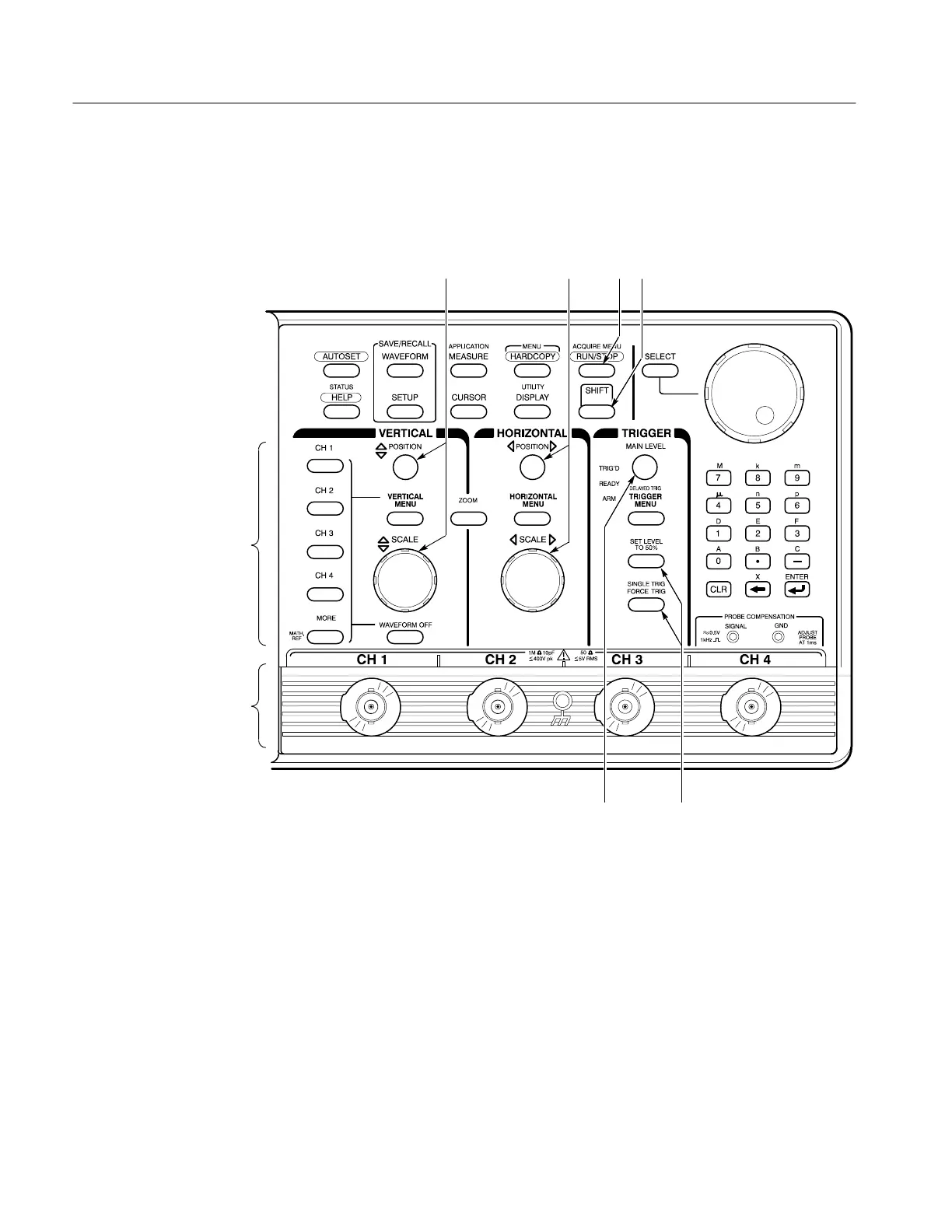

2. Select the waveform source(s). Position, scale, and set trigger level for

waveform source(s) directly from the front panel. The steps that follow

provide examples of possible control selections.

123

a. Input waveforms into these channels (7). Example: CH 1.

b. Push any channel’s button (8) to display its waveform. The last channel

turned on determines which waveform is positioned and scaled. The

indicator above the channel last selected is lighted.

Example: Push CH 1; then CH 2.

c. Vertically (1) and horizontally (2) scale and position the waveform(s)

selected. Example: Set the scale to 100 mV/div and center the waveform

on screen.

d. Stop and start acquiring waveforms (3). Example: Push RUN/STOP if

not acquiring.
