e. Select the setting for the function from the side menu (9) using the
side-menu buttons (11). Example: Push AC (10).
A few functions require more than just two levels (main and side) of menus to
completely specify their settings. In such cases, either the main menu, the side
menu, or both are modified to supply additional choices. The procedures that
follow show both schemes.
1. Set up a function using pop-up menus:
18
17
15
16

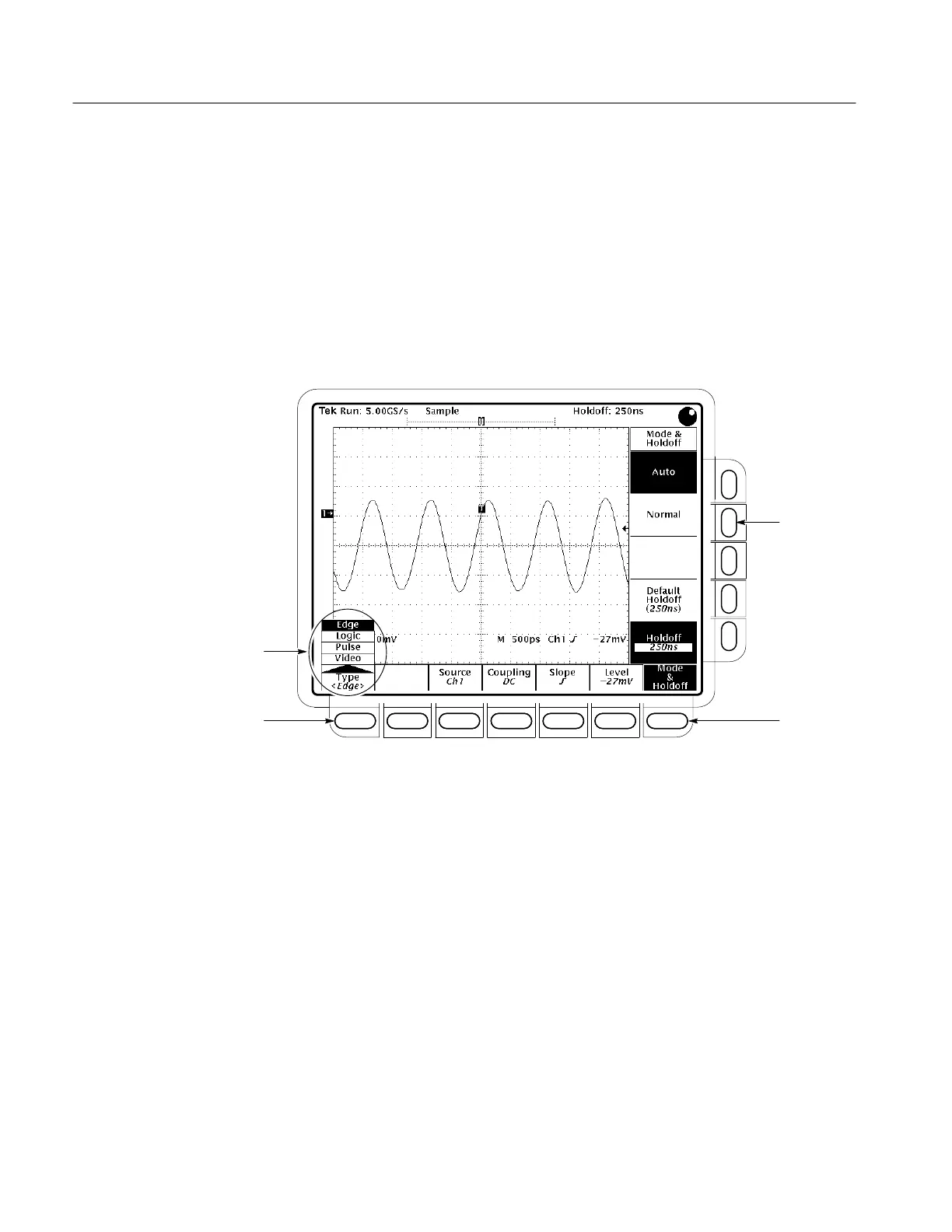

a. For some selections, pushing a main-menu button pops up a menu (18)
of subfunctions. Example: Push Type (17).
Note the pop-up menu for Type is set to Edge. All the main-menu
buttons to the right of the pop-up menu are labeled with subfunctions of
Edge.
b. Pushing the button that popped up the menu (17) toggles through the
pop-up menu choices. Example: Repeatedly push Type to move through
the pop-up menu. Notice the other main-menu button labels change
accordingly. Push Type to move back to Edge.
c. Complete the setting of the desired mode by selecting from the main
menu and the side menu that results. Example: Push Mode & Holdoff
(16), and then push Normal (15).
How to Set Complex
Functions
