Saving Waveforms and Setups
3–112
TDS 684A, TDS 744A, & TDS 784A User Manual
2. To store to a setup internally, choose one of the ten internal storage locations
from the side menu To Setup 1, To Setup 2, ... (see Figure 3–65). Now the
current setup is stored in that location.
3. To store a setup to disk, press To File (side). Then use the general purpose
knob to select the exact file from the resulting scrollbar list. Finally, press
Save To Selected File (side) to complete the operation.
NOTE. Upon power on, the oscilloscope creates the “wild card” file TEK?????.SET
for storing setups. Selecting this file in step 3 stores a setup in a uniquely named,
sequentially numbered file. For instance, the oscilloscope saves the first setup you
save in the file TEK00001.SET, the second in TEK00002.SET, and so on.
To recall a setup, do the following steps:
1. To recall a setup stored internally, press SAVE/RECALL SETUP ➞ Recall
Saved Setup (main) ➞ Recall Setup 1, Recall Setup 2 ... (side).
2. To recall a setup stored on disk, press From File (side). Then use the general
purpose knob to select the exact file from the resulting scrollbar list. Only
files with .set extensions will be displayed. Finally, press Recall From
Selected File (side) to complete the operation.

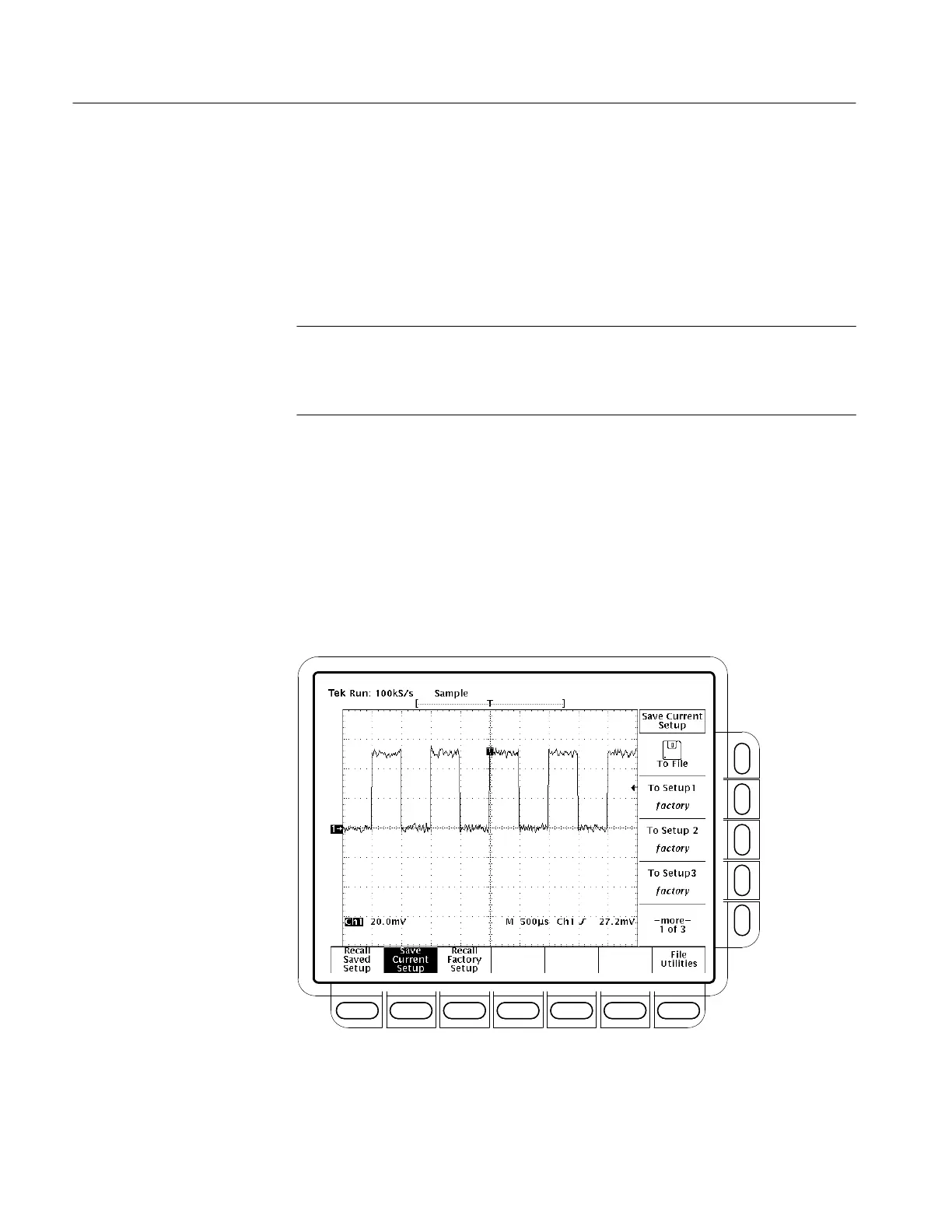

Figure 3–65: Save/Recall Setup Menu
To Recall a Setup
To Next Page
