Acquiring and Displaying Waveforms
TDS 500D, TDS 600B, & TDS 700D User Manual
3–43
1. TDS 600B: Press DISPLAY ➞ Settings (main) ➞ Display (pop-up) ➞
Readout Options (main).
TDS 500D and TDS 700D Models: Press DISPLAY ➞ Settings (main) ➞
Display (pop-up) ➞ Mode (main) ➞ Normal (pop-up) ➞ Format/
RO (main).
2. Toggle Display ‘T’ @ Trigger Point (side) to select whether or not to
display ‘T’ indicating the trigger point. You can select ON or OFF. (The
trigger point indicates the position of the trigger in the waveform record.)
3. Press Trigger Bar Style (side) to select either the short or the long trigger
bar or to turn the trigger bar off. (See Figure 3–20. Note that both styles are
shown for illustrating purposes, but you can only display one style at a time.)
The trigger bar is only displayed if the trigger source is an active, displayed
waveform. Also, two trigger bars are displayed when delay triggerable
acquisitions are displayed — one for the main and one for the delayed time
base. The trigger bar is a visual indicator of the trigger level.

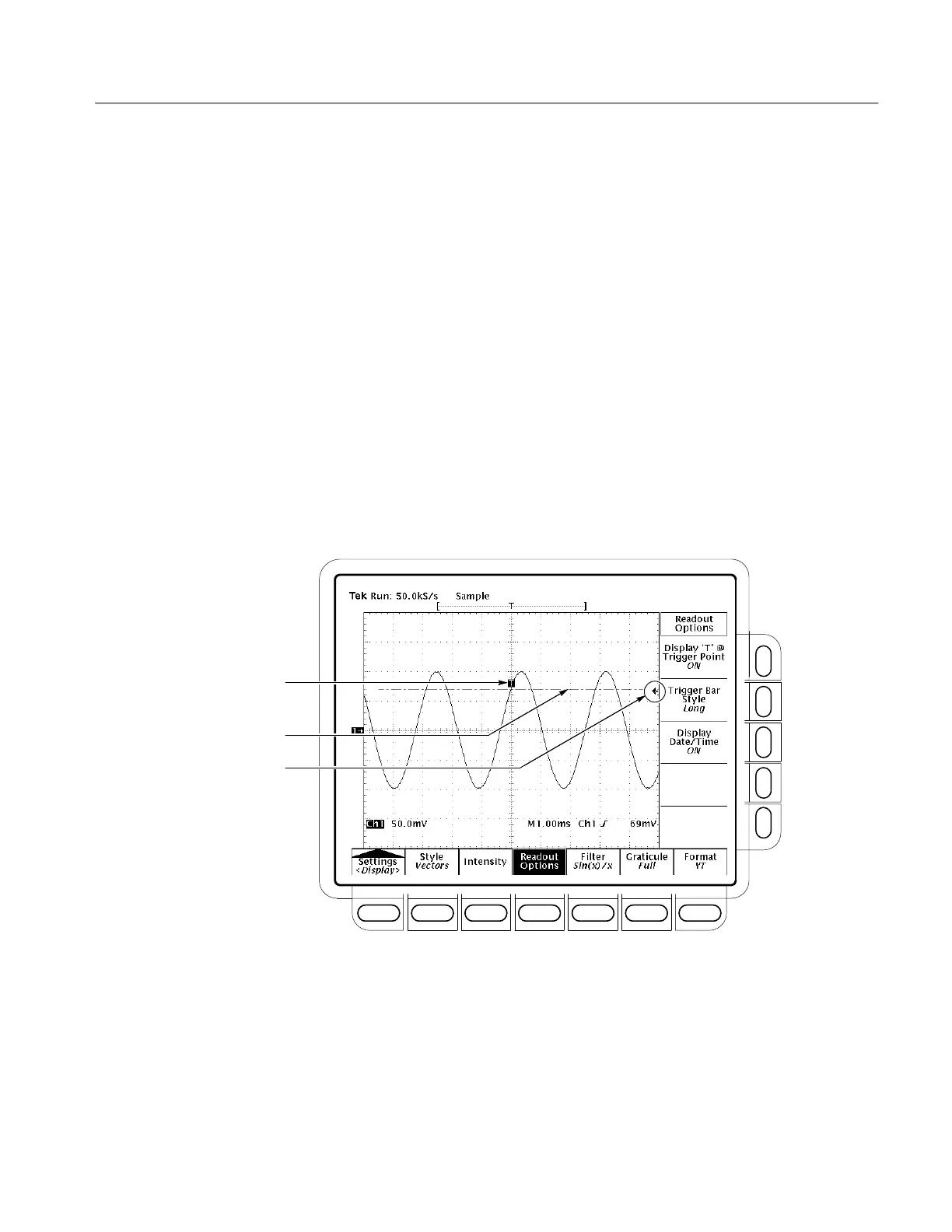

Trigger Point Indicator
Trigger Bar—Long Style
-or-
Trigger Bar—Short Style
Figure 3–20: Trigger Point and Level Indicators
