Measuring Waveforms
TDS 500D, TDS 600B, & TDS 700D User Manual
3–131
When gating is activated, vertical cursors are displayed. Use these cursors to
define the section of the waveform you want the oscilloscope to measure. (This
section is called the gated region.) Do the following steps to gate a measurement:
1. TDS 600B: Press MEASURE ➞ Gating (main) ➞ Gate with V Bar
Cursors (side). (See Figure 3–61.)
2. TDS 500D and TDS 700D: Press MEASURE ➞ Measure (pop-up) ➞
Gating (main) ➞ Gate with V Bar Cursors (side). (See Figure 3–61.)

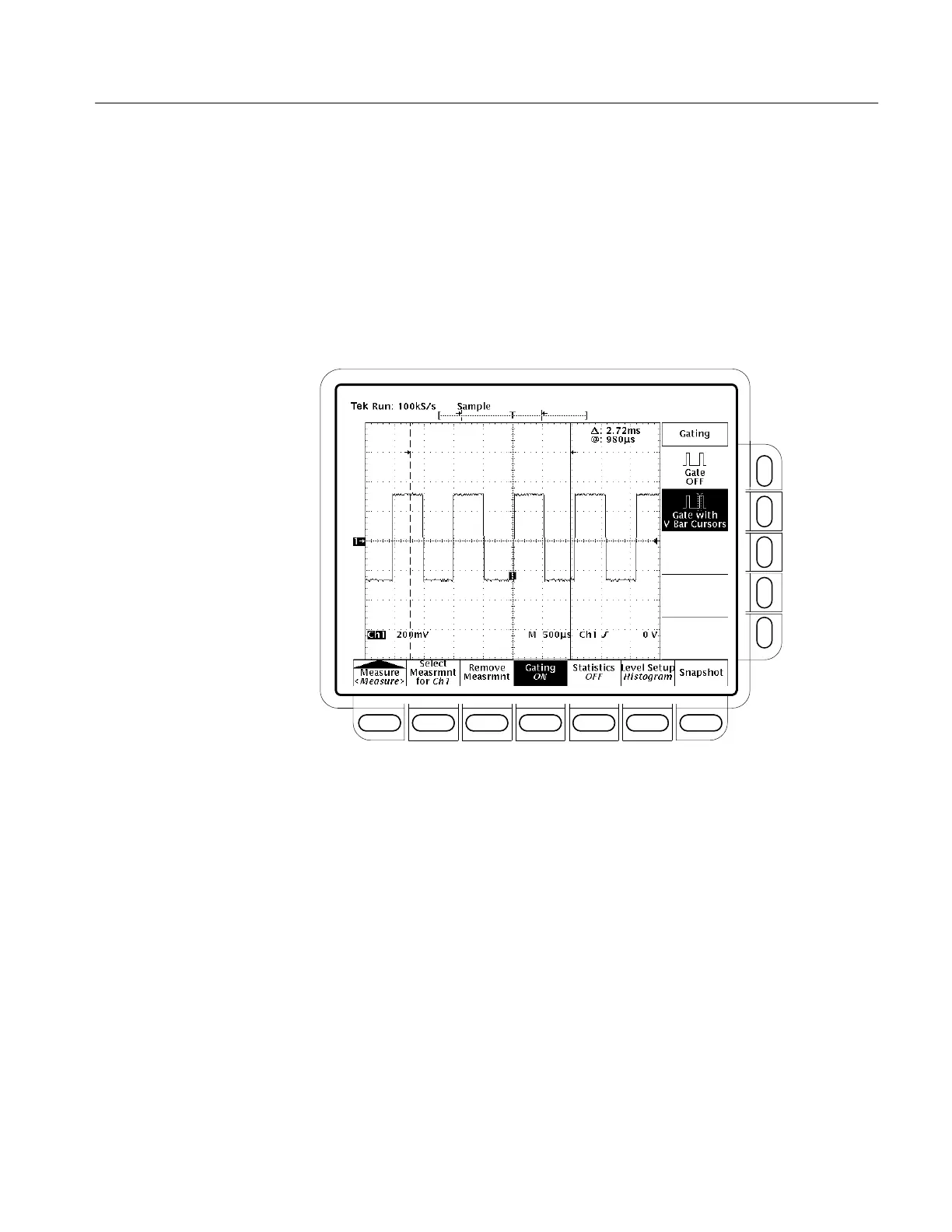

Figure 3–61: Measure Menu — Gating
3. Using the general purpose knob, move the selected (the active) cursor. Press
SELECT to change which cursor is active.
Displaying the cursor menu and turning V Bar cursors off will not turn
gating off. (Gating arrows remain on screen to indicate the area over which
the measurement is gated.) You must turn gating off in the Gating side menu.
