Replaceable
Par
ts
Parts
Lists
and
Exploded
Views
The
following
tables
show
the
module-level
exploded
views
of
the
TDS2000C
and
TDS1000C-EDU
oscilloscopes.
Followi
ng
each
exploded
view
is
the
list
of
components,
indexed
by
the
numbers
in
the
fi
gure.

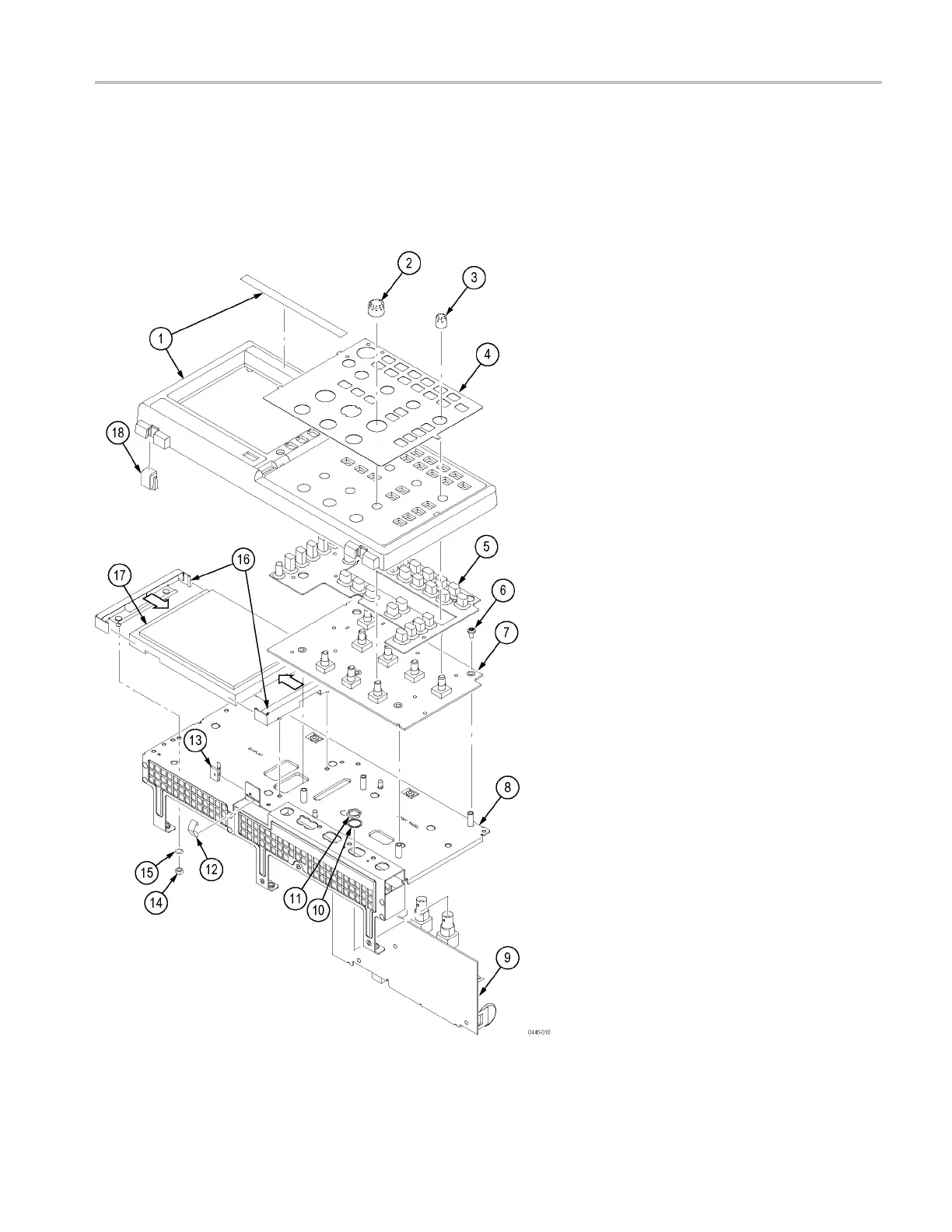

Figure
1
2:
Exploded
diagram,
2-channel
models
TDS2000C
and
TDS1000C-EDU
Series
Oscilloscope
Service
Manual
89
100
102
