Operating Basics
36
TDS1000/2000-Series Digital Oscilloscope User Manual
HORIZ MENU. Displays the Horizontal Menu.
SET TO ZERO. Sets the horizontal position to zero.
SEC/DIV. Selects the horizontal time/div (scale factor) for the main or
the window time base. When Window Zone is enabled, it c hanges
the width of the window zone by changing the window time base.
Refer to page 92 for details about creating and using Window Zone.

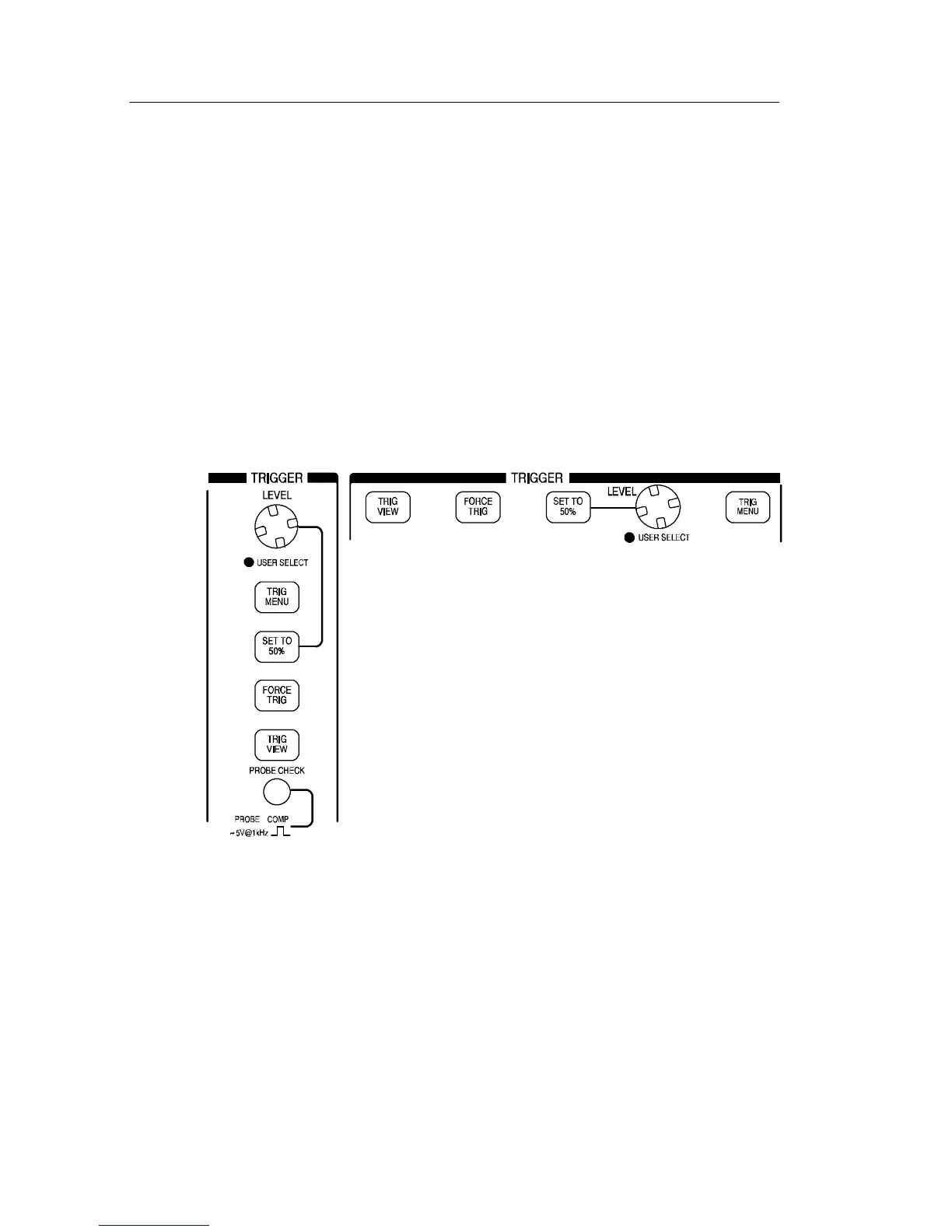

Trigger Controls
2-channel models
4-channel models
LEVEL and USER SELECT. When you use an Edge trigger, the primary
function of the L EVEL knob is to set the amplitude level the signa l
must cross to cause an acquisition. You can also use the knob to
perform USER SELECT alternative functions. The LED lights below
the knob to indicate an alternative function.
