Basic Installation
Follow these st
eps to turn on the logic analyzer for the first time:
1. Connect the power cord. (See Figure 4.)
2. If you have an external monitor, connect the power cord and turn on the
monitor.

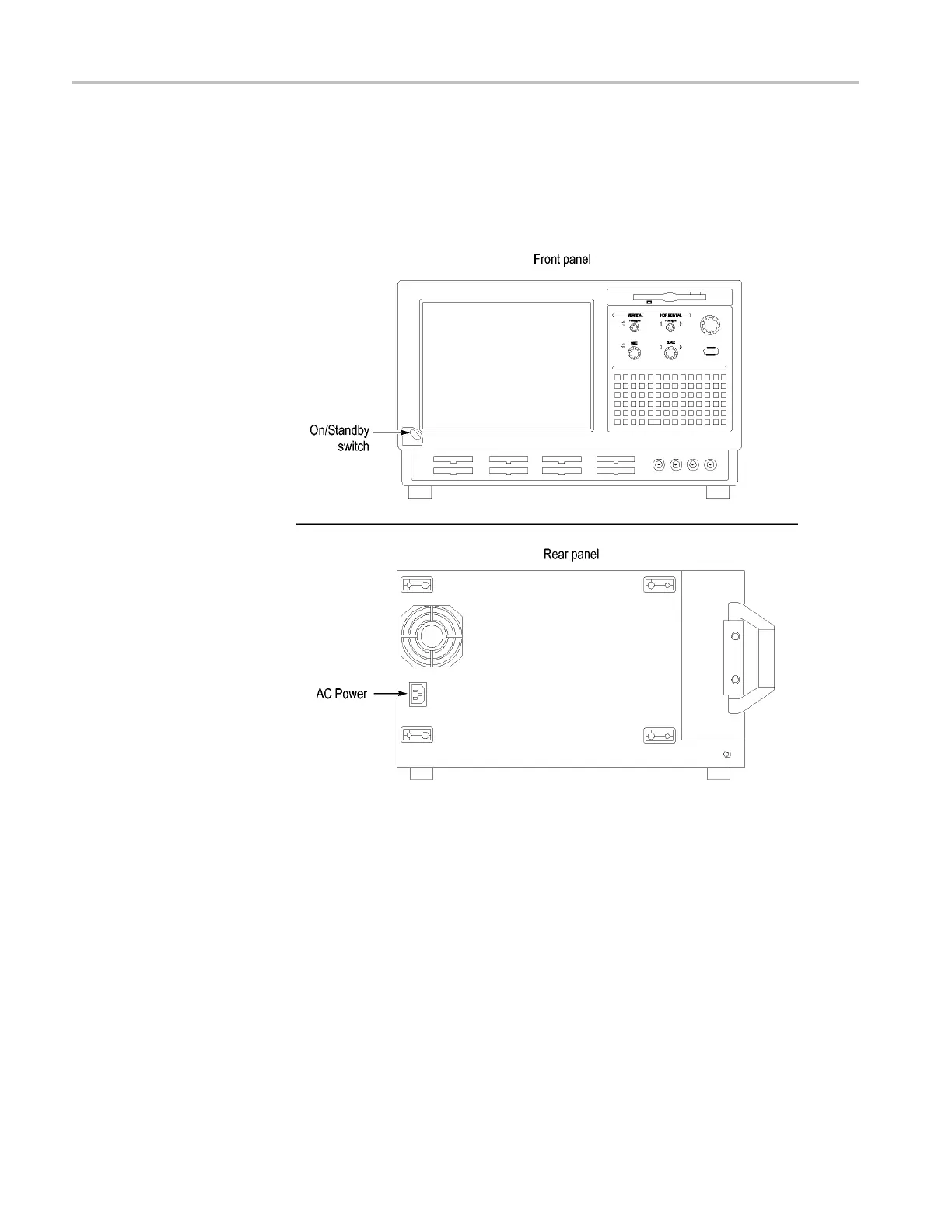

Figure 4: Power cord connector location
3. Turn on the logic analyzer as follows:
a. Press the On/Standby switch on the front of the instrument to turn on
the logic analyzer. (See Figure 4.)
b. Wait for the logic analyzer to complete power-on self-tests and s tart
Windows.
6 TLA5000 Series Logic Analyzer Installation Manual
