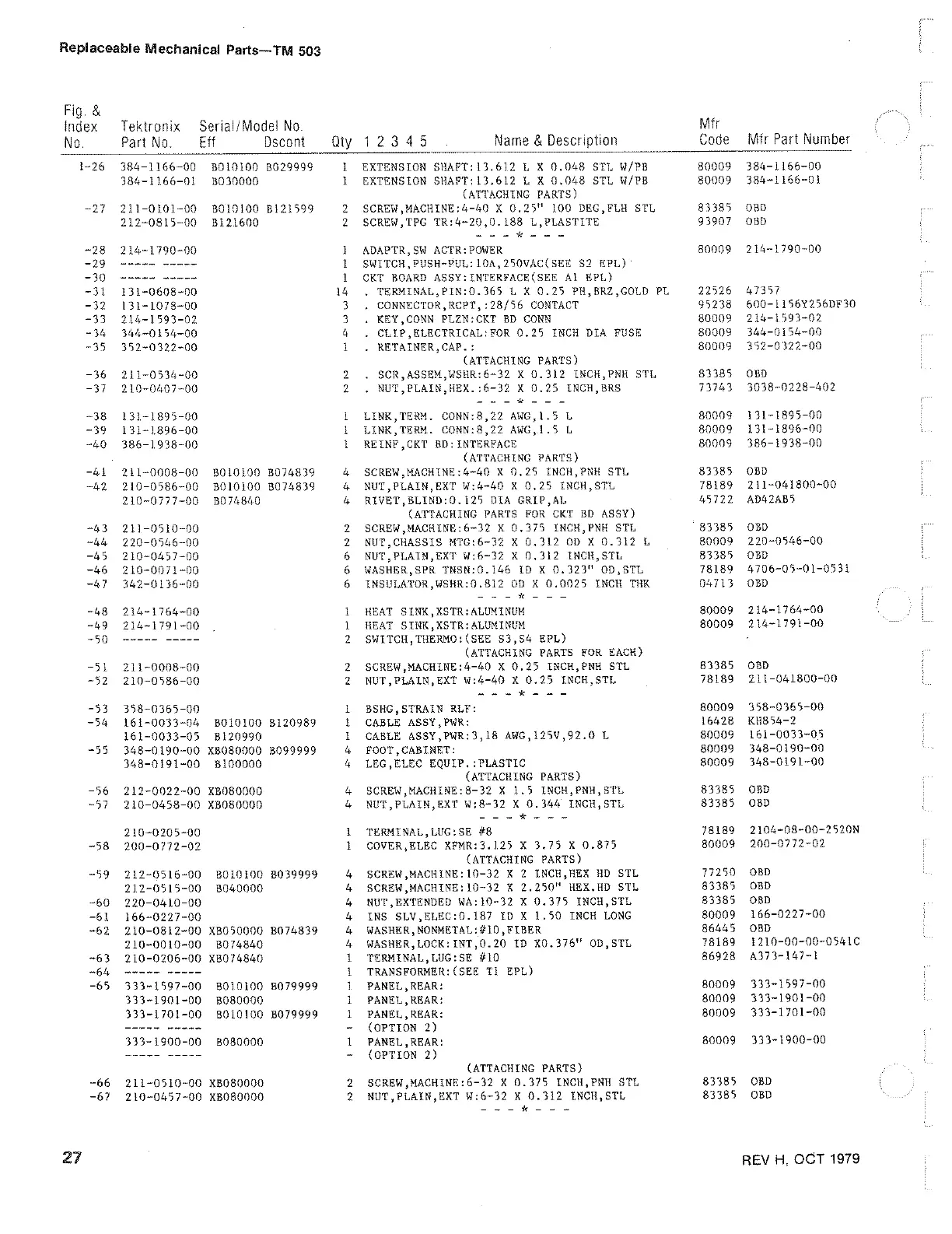

Replaceable
Mechanical
Parts—TM
503
Fig. &
index Tektronix Serial/Model No. Mtr
No.
PartNo.
Eff
Dscont
=Aty
12345
Name
&
Description
Code
Mfr
Part
Number
1-26 384-1166-00 BO10100 3029999 1 EXTENSION SHAPT:13.612 L X 0.048 STL W/PB 80009 384-1166-00
384-1166-01 B030000 1 EXTENSION SHAFT: 13.612 L X 6.048 STL W/PB 80009 384-1166-01
(ATTACHING PARTS)
-27 211-0101-00 BO19100 B121599 2. SCREW,MACHINE:4-40 X 0,25" 100 DEG,FLH STL 83385 OBD
212-0815-00 B121600 2 SCREW, TPG TR:4~-20,0.188 L,PLASTITE 93907 OBD
eo
~28 214-1790-00 1 ADAPTR,SW ACTR: POWER 80909 214-1790-00
oo 1 SWITCH, PUSH-PUL:10A,250VAC(SEE $2 EPL)
rs 1 CKT BOARD ASSY:INTERFACE(SEE Al EPL)
-31 131-0608-00 14, TERMINAL, PIN:0.365 L X 0.25 PH,BRZ,GOLD PL 22526 47357
-32 131-1078-00 3. CONNECTOR, RCPT, :28/56 CONTACT 95238 600-1156Y256DF30
-33° 214-1593-02 3. KEY,CONN PLZN:CKT BD CONN 80009 214-1593-02
-34 344-0154-00 4 , CLIP, ELECTRICAL: FOR 0,25 INCH DIA FUSE 80009 344-0154-00
-35 352-0322-00 1. RETAINER, CAP.: 80009 352-0322-00
(ATTACHING PARTS)
-36 211-0534~00 2. SCR,ASSEM,WSHR:6-32 X 0.312 INCH,PNE STL 83385 OBD
-37 219-0407-00 2. NUT,PLAIN,HEX.:6-32 X 0.25 INCH, BRS 73743 3038-0228-402
- eee
~38 131-1895-00 L LINK, TERM. CONN:8,22 AWG,1.5 L 80009 131-1895-00
~39 131~1896-00 L LINK, TERM. CONN:8,22 AWG,1.5 L 80009 131-1896-00
-40 386-1938-00 1 REINF,CKT BD: INTERFACE 80009 386-1938-00
{ATTACHING PARTS)
-41 211-0008-00 8010100 BO74839 4 SCREW,MACHINE:4-40 X 0.25 INCH,PNH STL 83385 OBD
-42 210-0586-00 8010100 BO74839 4 «NUT, PLAIN, EXT W:4-40 X 0,25 INCH,STL 78189 211-041800-00
210-0777-00 8074840 & RIVET,BLIND:0.125 DIA GRIP,AL 45722 AD42AB5
(ATTACHING PARTS FOR CKT BD ASSY)
-43 211-0510-00 2 SCREW,MACHINE:6~32 X 0.375 INCH,PNH STL 83385 OBD
~44 220-0546-00 2 NUT, CHASSIS MTG:6-32 X 0.312 OD X 0.312 L 80009 220-0546-00
-45 210-0457-00 6 NUT,PLAIN, EXT W:6-32 X 0.312 INCH,STL 83385 OBD
-46 210-0071~-00 6 WASHER,SPR TNSN:0.146 1D X 0.323" OD,STL 78189 4706-05-01-0531
-47 342-0136-00 6 INSULATOR,WSHR:0.812 OD X 0.0025 INCH THK 04713 OBD
~ ee ee
-48 214-1764-00 1 HEAT SINK, XSTR: ALUMINUM 80009 214-1764~-00
-49 214-1791-00 1 HEAT SINK, XSTR: ALUMINUM 80009 214~1791-00
fl ce 2 SWITCH, THERMO: (SEE $3,84 EPL) :
(ATTACHING PARTS FOR EACH)
-51 211-0008-00 2 SCREW,MACHINE:4-40 X 0,25 INCH,PNH STL 83385 OBD
-52 210-0586-00 2 NUT, PLAIN, EXT W:4-40 X 0.25 INCH,STL 78189 211-041800-00
mee kee ee
-53 358-0365-00 1 BSHG,STRAIN RLF: 80009 358-0365-00
-54 161-0033-04 BO10100 8120989 1 CABLE ASSY, PWR: 16428 KH854-2
161-0033-05 B120996 1 CABLE ASSY,PWR:3,18 AWG,125V,92.0 L 80009 161-0033~-03
-55 348-0190-00 XB080000 BO099999 4 +=FOOT, CABINET: 80009 348-0190~-00
348-0191-00 8190000 4 LEG,ELEC EQUIP. : PLASTIC 80009 348-0191-00
(ATTACHING PARTS)
-56 212-0022-00 xB080000 4 SCREW ,MACHINE:8-32 X 1.5 INCH,PNH,STL 83385 OBD
~57 210-0458-00 xB080000 4 NUT,PLAIN, EXT W:8-32 X 0.344 INCH, STL 83385 OBD
- ee kee
210-0205-00 1 TERMINAL,LUG:SE #8 78189 2104~08~00-2520N
~58 200-0772-02 1 COVER,ELEC XEMR:3.125 X 3.75 X 0.875 80009 200-0772-02
(ATTACHING PARTS)
-59 212-0516-00 B010100 8039999 4 SCREW,MACHINE: 10-32 X 2 INCH,HEX HD STL 77250 OBD
212-0515-00 8040000 4 SCREW ,MACHINE: 10-32 X 2.250" HEX.HD STL $3385 OBD
-60 220-0410-00 4 NUT, EXTENDED WA: 10-32 X 0.375 INCH,STL 83385 OBD
-61
166-0227-00
4
INS
SLV,ELEC:0.187
ID
X
1,50
INCH
LONG
80009
166-0227-00
-62
210-0812-00
XB050000
B074839
4
WASHER,
NONMETAL:#10,
FIBER
86445
OBD
210-0010-00
B074840
4
WASHER,LOCK:INT,O.20
ID
X0.376"
OD,STL
78189
1210-00-00-0541¢
~63 210-0206-00 KB074840 1 TERMINAL,LUG:SE #10 86928 A373-147-1
64 we women 1 TRANSFORMER: (SEE Tl EPL)
-65 333-1597-00 BO10100 B079999 1 PANEL, REAR: 80009 333-1597-00
333-1901-00 8080000 1 PANEL, REAR: 80009 333~1901-00
333-1701-00 8010100 8079999 1 PANEL, REAR: 80009 333-1701-~00
torte rere ~ (OPTION 2)
333-1900-00 B080000 1 PANEL, REAR: 80009 333-1900-00
moat soca ~ (OPTION 2)
(ATTACHING PARTS)
-66 211~0510-00 XB080000 2 SCREW ,MACHINE:6-32 X 0.375 INCH,PNH STL 83385 OBD
-67 210-0457-00 XB080000 2 NUT,PLAIN,EXT W:6-32 X 0.312 INCH, STL 83385 OBD
a
27
REV H, OCT 1978
